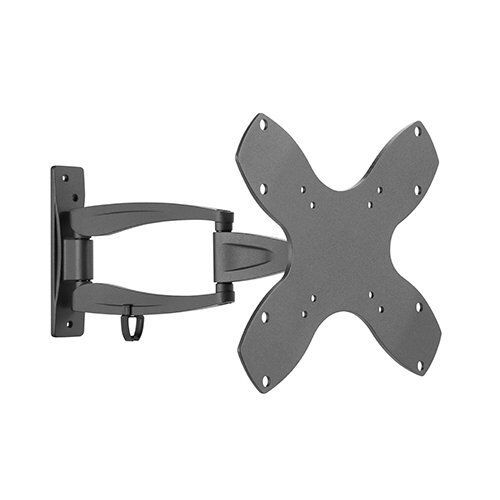

Protech FL-520 Full Motion Articulating TV & Monitor Wall Mount for 23–42 Inch Screens
Enjoy flexible television positioning with the Protech FL-520 Full Motion Articulating TV and Monitor Wall Mount, designed for compatible 23-inch to 42-inch flat-panel televisions weighing up to 20kg (44 lbs).
Featuring a lightweight aluminum construction, adjustable articulating arm and post-installation screen levelling, the FL-520 offers a practical solution for residential and commercial television installations.
The mounting arm allows the screen to sit just 45mm (1.8 inches) from the wall when retracted or extend outward up to 330mm (13 inches) for flexible positioning.
Its tilt and swivel adjustments make it easy to reposition the screen, reduce glare and find a comfortable viewing angle.
The FL-520 supports VESA 75×75, 100×100, 200×100 and 200×200mm mounting patterns.
Key Features
- Fits 23–42 Inch TVs: Designed for compatible flat-panel televisions.
- 44 lb Weight Capacity: Supports screens weighing up to 20kg (44 lbs).
- Full Motion Articulating Design: Allows adjustable screen positioning.
- 13-Inch Maximum Extension: Extends up to 330mm from the wall.
- Low-Profile Retracted Position: Sits approximately 45mm from the wall when retracted.
- Adjustable Tilt: Helps reduce glare and improve viewing angles.
- Swivel Adjustment: Allows the screen to be angled toward different viewing positions.
- Post-Installation Levelling: Helps fine-tune screen alignment after mounting.
- Four VESA Mounting Patterns: Supports 75×75, 100×100, 200×100 and 200×200mm.
- Lightweight Aluminum Construction: Provides a sleek and practical mounting design.
- Easy Assembly Design: Designed for straightforward installation.
- Cable Management: Helps keep television wiring organized.
Full Motion TV Mount for Flexible Viewing
The Protech FL-520 provides greater viewing flexibility than a fixed-position television wall bracket.
Its articulating arm allows the television to be moved outward from the wall, tilted vertically and swivelled horizontally.
This makes the mount suitable for rooms where the television needs to be viewed from different seating positions.
Compatible with 23–42 Inch Flat-Panel TVs
The FL-520 is designed for compatible televisions ranging from 23 inches to 42 inches.
The maximum manufacturer-listed weight capacity is 20kg (44 lbs).
The mount supports the following VESA mounting-hole patterns:
- 75×75mm
- 100×100mm
- 200×100mm
- 200×200mm
Before purchasing, confirm that your television or monitor meets the screen size, weight and mounting-hole compatibility requirements.
Extend Your Screen Up to 13 Inches

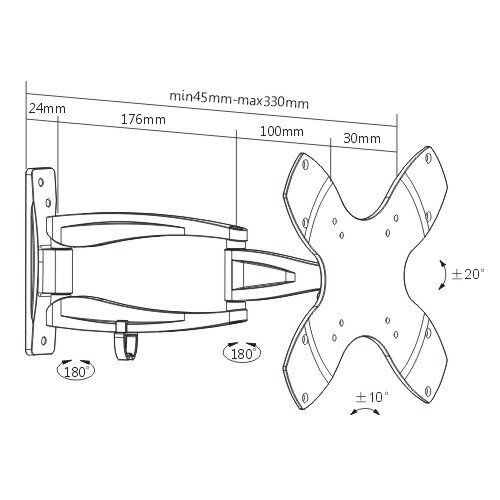

The FL-520 features an articulating arm with an adjustable wall distance of 45–330mm (approximately 1.8–13 inches).
When retracted, the television sits close to the wall for a clean appearance.
When extended, the arm allows additional flexibility for screen positioning and access to rear television connections.
Leave adequate clearance and cable slack for the full range of movement.
Adjustable Tilt for Glare Reduction
The FL-520 allows the screen to be tilted vertically.
This helps adjust the viewing angle and reduce unwanted glare from windows or room lighting.
The manufacturer describes the mechanism as allowing easy adjustment with the push of a finger.
The exact tilt-angle range is not specified in the supplied product information.
Swivel Adjustment for Flexible Viewing
The articulating arm allows the television to be swivelled horizontally.
This can be useful in bedrooms, living rooms, kitchens, offices and other spaces with multiple viewing positions.
The exact swivel-angle range is not specified.
Actual movement depends on the television’s dimensions and available wall clearance.
Post-Installation Screen Levelling
The FL-520 includes post-installation levelling adjustment.
This feature allows minor screen alignment corrections after the television has been mounted.
The exact levelling-angle range is not provided in the supplied specifications.
Lightweight Aluminum Construction
The Protech FL-520 features aluminum construction.
Its lightweight design provides a practical mounting solution for compatible small and medium-sized flat-panel televisions.
Always confirm that the wall structure and mounting hardware are suitable for the installation.
Integrated Cable Management
The FL-520 includes cable management features to help organize television wiring.
This helps maintain a cleaner installation while allowing the screen to be repositioned.
Ensure that cables have sufficient slack to accommodate extension, tilt and swivel movement.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Protech |
| Model | FL-520 |
| Product Type | Full Motion Articulating TV Wall Mount |
| Compatible TV Size | 23–42 Inches |
| Maximum Weight Capacity | 20kg / 44 lbs |
| VESA Compatibility | 75×75, 100×100, 200×100, 200×200mm |
| Motion Type | Full Motion / Articulating |
| Minimum Wall Distance | 45mm / Approximately 1.8 Inches |
| Maximum Wall Extension | 330mm / Approximately 13 Inches |
| Tilt Adjustment | Yes |
| Tilt Angle Range | Not Specified |
| Swivel Adjustment | Yes |
| Swivel Angle Range | Not Specified |
| Post-Installation Levelling | Yes |
| Material | Aluminum |
| Cable Management | Yes |
| Wall Compatibility | Not Specified |
| Mounting Hardware Included | Not Specified |
| Colour | Not Specified |
| Warranty | Not Specified |
Ideal Applications
- Living room television installations
- Bedroom TV mounting
- Kitchen televisions
- Home office displays
- Compatible monitors with supported VESA patterns
- Small commercial displays
- Workstations and entertainment setups
- Corner-oriented viewing arrangements where the installation permits
- Installations requiring flexible screen positioning
Installation and Compatibility Notes
- Confirm the screen is within the 23–42 inch size range.
- Do not exceed the maximum 20kg (44 lb) weight capacity.
- Verify VESA 75×75, 100×100, 200×100 or 200×200mm compatibility.
- Ensure the supporting wall structure is suitable for the television and mount.
- Use appropriate mounting hardware for the wall construction.
- Allow adequate clearance for the 330mm extension.
- Leave sufficient cable slack for articulating movement.
- Follow the manufacturer’s installation instructions.
