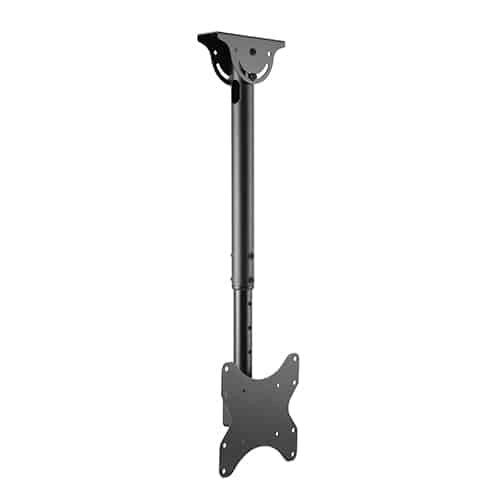

The Protech CM-421 is a full-motion ceiling mount designed to offer the ultimate in versatility and universal compatibility. Tilting ceiling plate for flat and sloping ceiling application. It allows displays to tilt down and swivel around the pole without tools. Includes VESA plate to accommodate virtually any 23″ – 42″ LCD TV or monitor up to 50kg/110lbs. Features adjustable height for perfect TV positioning and a wire management channel to keep cables concealed and organized.
FEATURES
-
●Telescoping Height Adjustment: for the optimal viewing height
-
●Adjustable Ceiling Plate: for mounting in flat or sloping ceiling
-
●Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
-
●Leveling adjustments: allow TV to be perfectly positioned after hanging
-
●Cable Management: keeps everything organized
SPECIFICATIONS
| Product Category: |
TV Ceiling Mount |
| Rank: |
Standard |
| Material: |
Steel |
| Surface Finish: |
Powder Coating |
| Color: |
Matte Black |

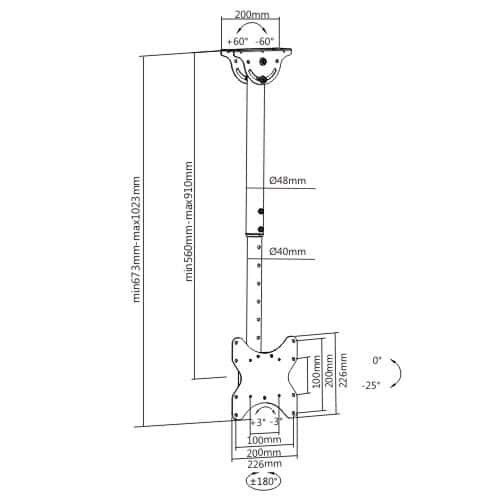

| Dimensions: |
226x226x1023mm (8.9″x8.9″x40.3″) |
| Fit Screen Size: |
23″-42″ |
| Fit Curved TV: |
Yes |
| Mounting Hole Pattern: |
VESA Only |
| VESA Compatible: |
100×100,200×100,200×200 |
| Max. Mounting Hole: |
200×200 |
| Weight Capacity: |
50kg (110lbs) |
| Strength Tested: |
4 Times Approved |
| Profile: |
560~910mm (22″~35.8″) |
| Tilt Range: |
＋0°～-25° |
| Swivel Range: |
+180°~-180° |
| Screen Level: |
+3°~-3° |
| Screen Freely Tilting: |
Yes |
| Installation: |
Ceiling Mounted |
| Panel Type: |
Detachable Panel |
| Wall Plate Type: |
Fixed Wall Plate |
| Cable Management: |
Yes |
| Bubble Level: |
No |
| Accessory Kit Package: |
Normal/Ziplock Polybag,Compartment Polybag |
| Certification: |
RoHS |
