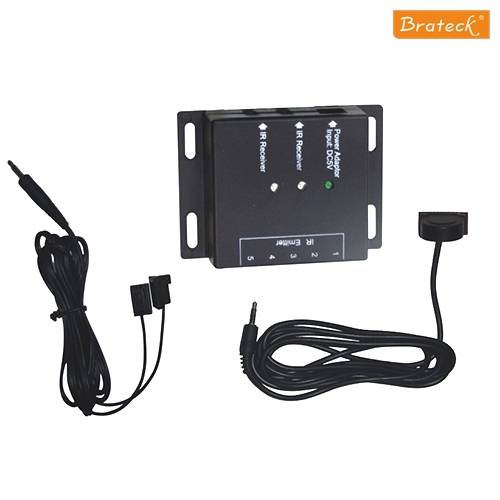

Hidden IR Repeater System IR Repeater Extender Infrared Remote Control

Protech IR 5000 Hidden IR Repeater System IR Repeater Extender Infrared Remote Control

IR Input: 1×3.5mm jack connector, for IR-CV-3 Receiver(3 conductor plug); 1×3.5mm jack connector, for IR-CV-4 receiver (4 conductor plug).

IR Emitter Output: 4×3.5mm jack connector, for IR-EM-3 emitter; 1×3.5mm jack connector, for IR Blaster.

Status Indication: Green LED for system On/Off indication

IR Signal Indication: blue indication LED Power Indication: red indication LED

IR Blaster
Connection: 3.5mm jack plug (mono)
IR LEDs: 1x IR blaster LED
Cable Length: 3 meters
ir Transmitting Range: 3 meters
IR Transmitting Angle: 90° (+45°/-45° from center)
Dimension: 22 x16 x 8mm
IR Receiver(IR-CV-4)
Frequency Range: 25-60KHz
IR Reception Range: ±10 meters
IR Reception Angle: 90º(+45º/-45º from center)
R Receiver Connection: 1×3.5mm jack plug(4 conductor plug)
Cable Length: 1×2meters, extendable up to max 100 meters
Dimension: 25×14×9mm
IR Emitter (IR-EM-1, IR-EM-2, IR-EM-3)
Connection: 3.5m jack plug(mono)
IR LEDs: 2×IR emitter LEDs
Cable Length: 2 meters
Peak Forward Current: 100mA
Forward Voltage Max: 1.5V
Peak Wavelength: 940nm
Emitter Dimension: 22 x16 x 8mm

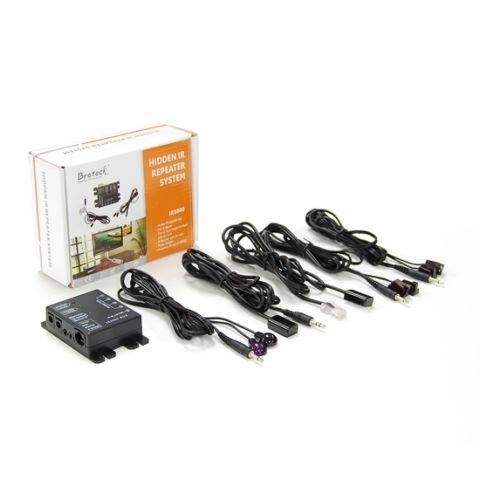

Package Include
1×Hidden IR Repeater Box
1×IR Receiver
2×IR Emitter
1×IR Blaster
1×Plug-in Power Supply
