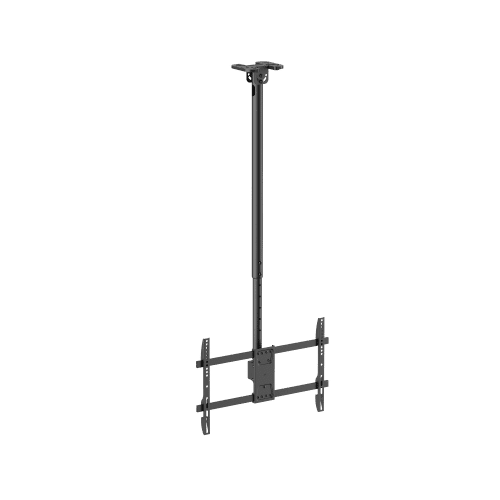

Name: Protech CM-435 43″ – 86″ Tilting Ceiling TV Mount
SKU: CM-435
Availability: InStock

FEATURES

●Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare

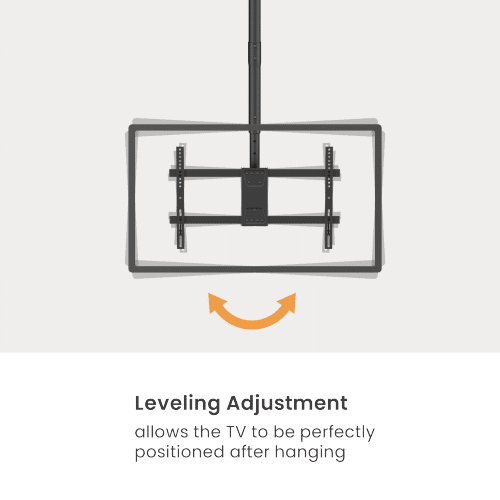

●Leveling adjustments: allow TV to be perfectly positioned after hanging

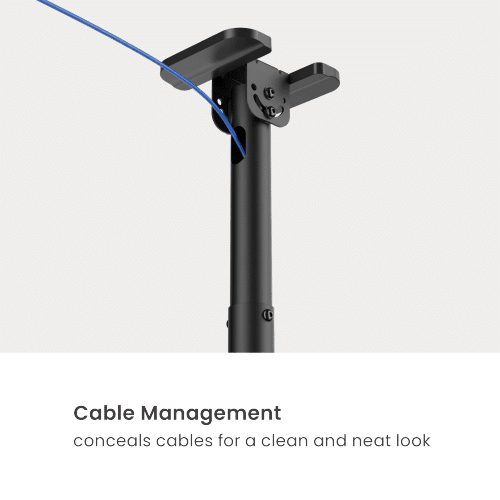

●Cable Management: keeps everything organized

SPECIFICATIONS

Product Category:	TV Ceiling Mount
Rank:	Standard
Material:	Steel
Metal Sheet Thickness:	Bracket Arm THK=1.5mm cold-rolled sheet,VESA Panel THK=1.8mm cold-rolled sheet,Wall Plate THK=2.5mm pickling sheet (Bracket Arm THK=0.059″ cold-rolled sheet,VESA Panel THK=0.071″ cold-rolled sheet,Wall Plate THK=0.098″ pickling sheet)
Pipe Size:	φ40×1.2mm Round Steel Tube,φ48×1.5mm Round Steel Tube (φ1.6″x0.047″ Round Steel Tube,φ1.9″x0.059″ Round Steel Tube)
Surface Finish:	Powder Coating
Color:	Fine Texture Black

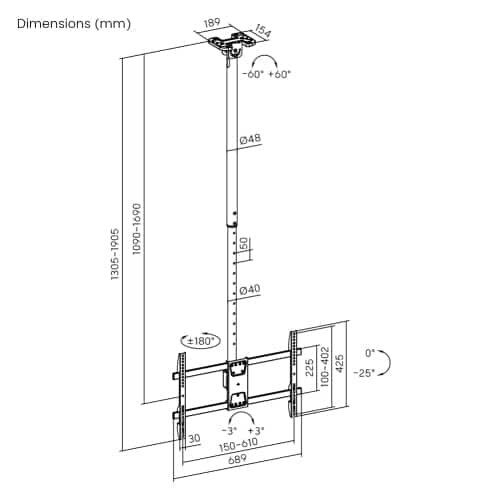

Dimensions:	1905x689x154mm (75″x27.1″x6.1″)
Fit Screen Size:	43″-86″
Fit Curved TV:	Yes
Mounting Hole Pattern:	VESA & Universal
VESA Compatible:	200×200,300×200,400×200,300×300,400×300,400×400,600×400
Max. Mounting Hole:	610×402
Weight Capacity:	60kg (132lbs)

Strength Tested:	4 Times Approved
Profile:	1090~1690mm (42.9″~66.5″)

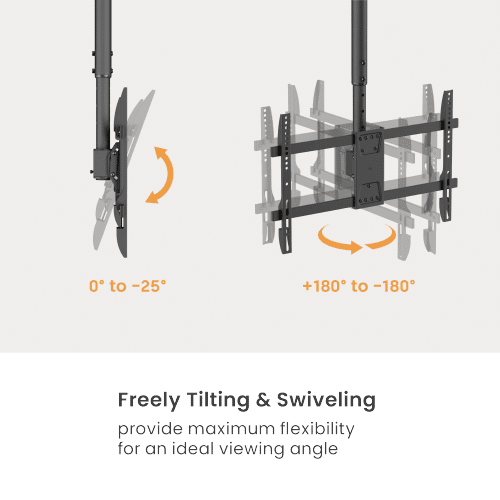

Tilt Range:	0°～-25°
Swivel Range:	+180°~-180°
Screen Level:	+3°~-3°
Screen Freely Tilting:	Yes
Installation:	Ceiling Mounted
Panel Type:	Detachable Panel
Wall Plate Type:	Fixed Wall Plate
Direction Indicator:	Yes
Cable Management:	Yes
Bubble Level:	No
Accessory Kit Package:	Normal/Ziplock Polybag,Compartment Polybag

Weight	16 lbs
Dimensions	37 × 10 × 7 in
