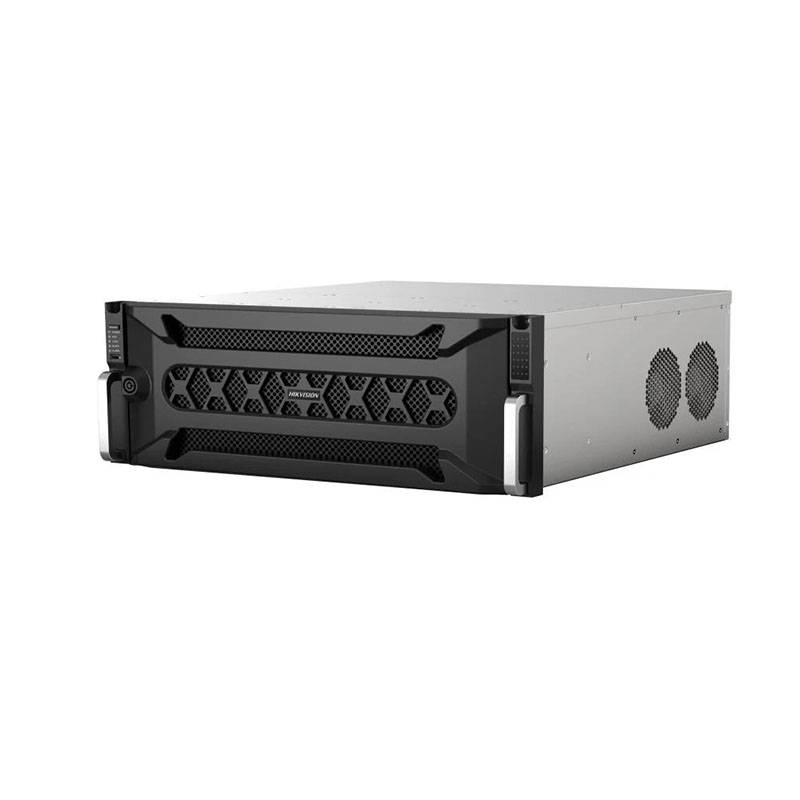

Hikvision DS-96128NI-H24R 128CH 4K 4U Super NVR

Hikvision DS-96128NI-H24R 128-ch 4U 8K Super NVR support 24pcs SATA

128-ch 4U 4K Super NVR

-Up to 128 channel IP cameras can be connected

-Up to 768 Mbps high incoming bandwidth ensures IP cameras can be connected

-2 HDMI interfaces (different source), 1 VGA interfaces, and 1 decoding board

-24 HDD can be used for continuous video recording

-Redundant power supply improves system stability

-Supports some special cameras, including people counting camera/ANPR(automatic number plate recognition) camera/fisheye camera

-Advanced streaming technology enables smooth live view in poor network conditions



-Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage, effectively avoids data loss risks



Description:

Video and Audio

• IP Video Input: 128-ch
• Incoming Bandwidth: 768 Mbps
• Outgoing Bandwidth: 512 Mbps
• Incoming Bandwidth (RAID Mode): 768 Mbps
• Outgoing Bandwidth (RAID mode): 512 Mbps
• TLS outgoing bandwidth: 128 Mbps, or 64 Mbps (when RAID is enabled)
• HDMI Output: Two independent HDMI outputs of 4K resolution. Resolution: 4K (4096 × 2160), 4K (3840 × 2160) /30Hz, 2K (2560 × 1440)/60Hz, 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz
• VGA Output: 1-ch. Resolution: 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz
• LCD Output: Optional: One 7 inch LCD
• Audio Output: 1-ch. RCA (2.0 Vp-p, 1 KΩ)
• Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ)

Decoding

• Decoding Format: H.265, H.265+, H.264, H.264+,MPEG4, MJPEG (for Hikvision IP camera only)
• Recording Resolution: 12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous playback: Up to 16 channels
• Decoding Capability: 3-ch@12 MP (30fps), 5-ch@8 MP (30fps), 6-ch@6 MP (30fps), 10-ch@4 MP (30fps), 20-ch@1080p (30 fps)

Network

• Network Protocol: IPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS
• Camera Access Protocol: HIKVISION, ACTi, ARECONT, AXIS, BOSCH, BRICKCOM, CANON, HUNT, ONVIF (Version 2.5), PANASONIC, PELCO, RTSP, SAMSUNG, SONY, VIVOTEK, ZAVIO
• Network Interface: 4, RJ45 10M/100M/1000M self-adaptive Ethernet interface

RAID

• RAID Type: RAID0, RAID1, RAID5, RAID 6, and RAID10

Auxiliary Interface

• SATA: 24 SATA interfaces supporting hot-plug
• Capacity: Up to 10 TB for each HDD
• Serial Interface: RS-232; RS-485; Keyboard
• USB Interface: Front Panel: 1 × USB 2.0; Rear Panel: 2 × USB 3.0
• Alarm In/Out: 16/8
• eSATA: 1 × eSATA interface
• mini SAS: Optional: 2 × mini SAS interface
• Decoding Board: 1
• Extension Board: Optional: One extension board is supported with four 10M/100M/1000M optical interfaces (1.25 Gbps SFP module), eight RS-485 interfaces, and alarm interface of 32 alarm inputs and 16 alarm outputs.

General

• Power Supply: 100 to 240 VAC, 50 to 60Hz, 5 A
• Consumption: ≤ 140W (without HDD)
• Working Temperature: 0 °C to + 50 °C (32 °F to 122 °F)
• Working Humidity: 10% to 90%
• Dimension (W × D × H): 448 × 490 × 173mm (17.6 × 19.3 × 6.8 inch)
• ≤ 23 kg (50.7 lb, without HDD)

Video Wall Management

• HDMI Output/Input: 6/1
• HDMI Output Resolution: 4K (3840×2160)/60Hz, 4K (3840×2160)/30Hz, 2K (2560×1440)/60Hz, 1080p (1920×1080)/60Hz, SXGA (1280×1024)/60Hz, 720p (1280×720)/60Hz, XGA (1024×768)/60Hz
• HDMI Input Resolution: 1080p (1920×1080), SXGA (1280×1024), 720p 1280×720), XGA (1024×768)
• Decoding Capacity: 48-ch@1080p
• Decoding Resolution: 12 MP/8 MP/7 MP/6 MP/5 MP/3 MP/1080p/UXGA/720p/VGA/4CIG/DCIF/2CIF/CIF/QCIF
• Collage: Supported
• Auto-Switch: Supported
• Open Window: Supported
• Layer Overlay: Supported
• Window Roaming: Supported
• Display Local Signal Source on Video Wall: Supported
