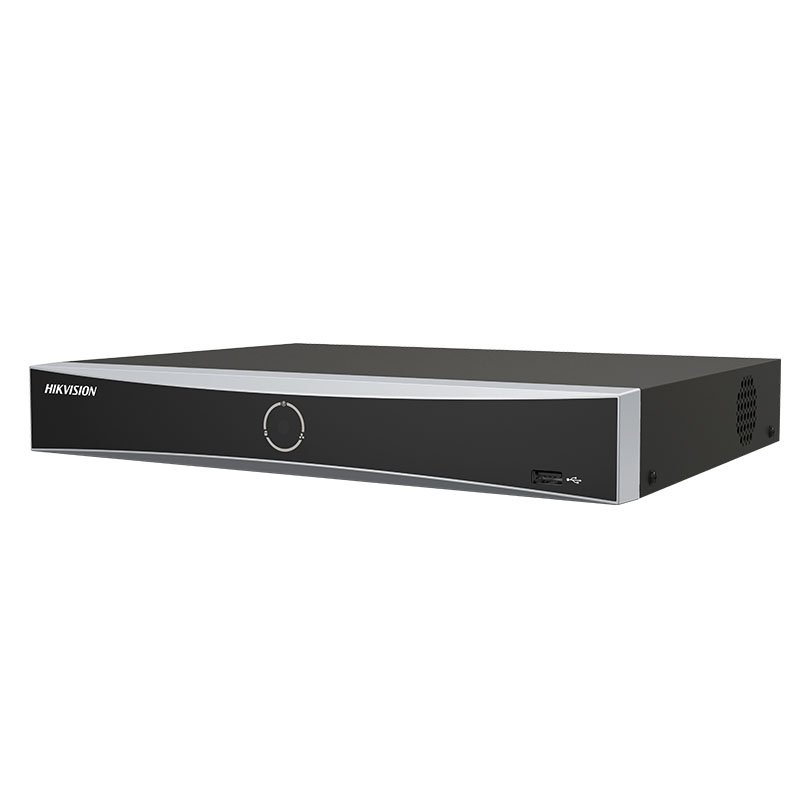

Hikvision DS-7616NXI-K2/16P/VPRO 16CH 12MP AcuSeek AcuSearch AcuSense NVR with 16 PoE

Hikvision DS-7616NXI-K2/16P/VPRO 16-Channel VPro AcuSeek & AcuSearch PoE NVR

The Hikvision DS-7616NXI-K2/16P/VPRO is a powerful 16-channel PoE Network Video Recorder (NVR) designed for professional IP surveillance systems. Featuring Hikvision AcuSeek, AcuSearch and AcuSense AI technologies, this VPro recorder combines intelligent video analytics, advanced video search and high-resolution recording in one professional security solution.

With 16 built-in PoE ports, the NVR provides convenient plug-and-play connectivity for up to 16 compatible IP cameras. It supports recording resolutions up to 12MP, offers 160 Mbps incoming bandwidth, 4K HDMI output and two SATA interfaces supporting up to 16TB per HDD.

AcuSeek & AcuSearch Intelligent Video Search

The DS-7616NXI-K2/16P/VPRO features Hikvision’s advanced AcuSeek and AcuSearch capabilities to make searching recorded security footage faster and more efficient.

When compatible Hikvision AcuSense cameras have AcuSearch enabled, the NVR supports AcuSeek across all channels and can model up to 50,000 targets per day.

AcuSearch is supported across all channels when used with compatible cameras that have the AcuSearch function enabled.

Hikvision AcuSense AI Technology

Hikvision AcuSense technology provides intelligent human and vehicle recognition to help filter irrelevant motion events and reduce false alarms.

Supported intelligent analytics include:

• AcuSeek
• AcuSearch
• AcuSense
• Human and vehicle classification
• Perimeter protection
• Motion Detection 2.0
• Facial recognition
• Face capture and face search
• ANPR through compatible cameras
• VCA through compatible cameras

16-Channel NVR with 16 Built-In PoE Ports

Connect up to 16 IP security cameras with plug-and-play functionality through 16 integrated Power-over-Ethernet interfaces.

The built-in PoE ports provide both data connectivity and power to compatible PoE cameras, simplifying larger security camera installations.

IP Camera Inputs: 16 Channels
Built-In PoE Ports: 16
PoE Standard: IEEE 802.3af/at
PoE Power Budget: Up to 200W
Incoming Bandwidth: 160 Mbps
Outgoing Bandwidth: 160 Mbps

Up to 12MP High-Resolution Recording

The DS-7616NXI-K2/16P/VPRO supports high-resolution IP camera recording up to 12MP.

Supported recording resolutions include:

12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 720p and lower resolutions

Video compression support includes:

H.265+ / H.265 / H.264+ / H.264

4K HDMI Output

Connect the NVR to a compatible 4K display for high-resolution live viewing and playback.

Maximum HDMI Output: 4K (3840 × 2160) @ 30Hz
VGA Output: Up to 1080p @ 60Hz

The NVR supports independent HDMI and VGA output for flexible monitoring configurations.

Dual HDD Bays – Up to 32TB Total Capacity

The DS-7616NXI-K2/16P/VPRO includes 2 SATA interfaces for surveillance-grade hard drives.

HDD Bays: 2
Maximum Capacity Per HDD: 16TB
Maximum Supported Storage: Up to 32TB total

Hard drives are sold separately unless specifically stated in the product listing.

Audio, Alarm & Network Features

• 4-channel IP speaker input
• 1-channel two-way RCA audio input
• 1-channel RCA audio output
• 4 alarm inputs / 1 alarm output
• 16-channel synchronous playback
• Gigabit Ethernet interface
• Up to 128 remote connections
• Front USB 2.0
• Rear USB 2.0
• SADP support
• RTSP
• HTTP / HTTPS
• IPv4 / IPv6
• DDNS
• NFS
• iSCSI
• UPnP

Key Specifications

Brand: Hikvision
Model: DS-7616NXI-K2/16P/VPRO
Recorder Type: Network Video Recorder (NVR)
IP Camera Channels: 16
Built-In PoE Ports: 16
Maximum Recording Resolution: 12MP
Incoming Bandwidth: 160 Mbps
Outgoing Bandwidth: 160 Mbps
PoE Budget: Up to 200W
PoE Standard: IEEE 802.3af/at
SATA Interfaces: 2
Maximum HDD Capacity: 16TB per HDD
Maximum Total HDD Capacity: 32TB
HDMI Output: Up to 4K
Network Interface: Gigabit RJ45
Alarm In / Out: 4 / 1
Power Supply: 200–240VAC, 50–60Hz
Operating Temperature: -10°C to 55°C
Dimensions: 384 × 317 × 52 mm

The Hikvision DS-7616NXI-K2/16P/VPRO is designed for larger residential and commercial surveillance installations requiring 16 PoE camera connections, intelligent AI video analytics and high-capacity recording.

It is well suited for retail stores, offices, warehouses, restaurants, commercial properties and other multi-camera security installations.

Available from Tech Vision Electronics in Scarborough, Ontario, serving security camera installers, businesses and customers throughout Toronto, the GTA and Canada.
