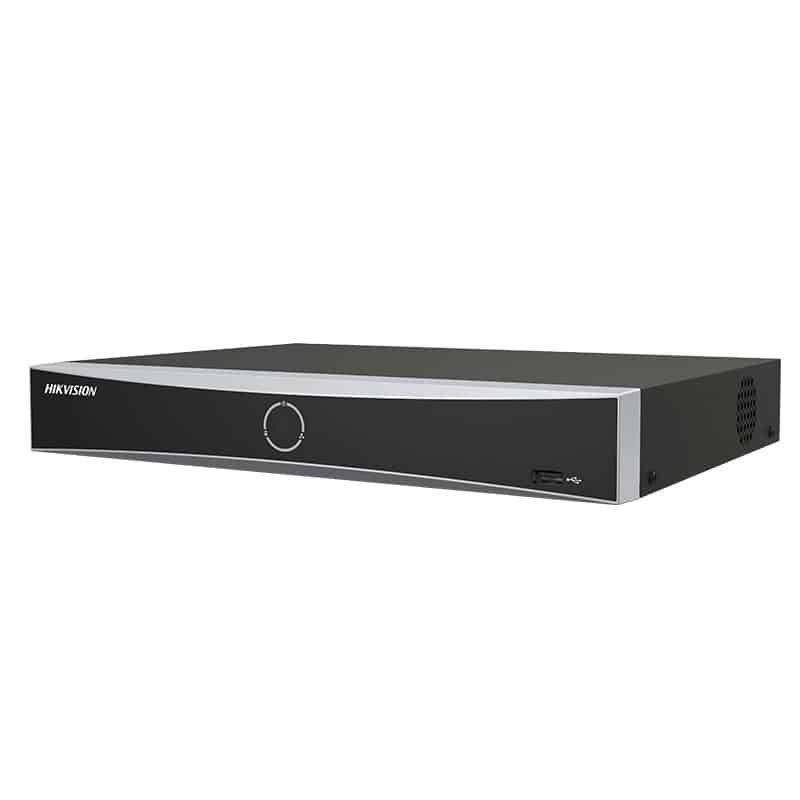

Hikvision DS-7604NXI-K1/4P/VPRO 4CH 12MP AcuSeek AcuSearch AcuSense NVR with 4 PoE

Hikvision DS-7604NXI-K1/4P/VPRO 4-Channel VPro AcuSeek & AcuSearch PoE NVR

The Hikvision DS-7604NXI-K1/4P/VPRO is an advanced 4-channel PoE Network Video Recorder (NVR) designed for intelligent IP security camera systems. Featuring Hikvision AcuSeek, AcuSearch and AcuSense technologies, this VPro NVR combines AI-powered video analytics with convenient plug-and-play camera connectivity.

With 4 built-in PoE ports, support for IP cameras up to 12MP, 4K HDMI output and a SATA interface supporting up to a 16TB surveillance hard drive, the DS-7604NXI-K1/4P/VPRO is an excellent NVR for homes, offices, retail stores and small-to-medium commercial security installations.

AcuSeek & AcuSearch Intelligent Video Search

The DS-7604NXI-K1/4P/VPRO supports Hikvision’s advanced AcuSeek and AcuSearch technologies for more efficient investigation of recorded surveillance footage.

When compatible Hikvision AcuSense cameras have AcuSearch enabled, the NVR supports AcuSeek across all channels and is capable of modelling up to 50,000 targets per day.

AcuSearch is also supported across all channels when used with compatible cameras with the AcuSearch function enabled.

Hikvision AcuSense AI

Hikvision AcuSense technology provides intelligent human and vehicle classification to help reduce false alarms caused by irrelevant movement.

Intelligent analytics supported by the NVR and compatible cameras include:

• AcuSeek
• AcuSearch
• AcuSense
• Human and vehicle classification
• Perimeter protection
• Motion Detection 2.0
• Facial recognition
• Face capture and face search
• ANPR through compatible cameras
• VCA through compatible cameras

4-Channel NVR with 4 Built-In PoE Ports

Connect up to 4 IP security cameras directly to the recorder using its four integrated Power-over-Ethernet ports.

The built-in PoE interfaces can provide network connectivity and power to compatible PoE cameras, helping simplify security camera installation.

IP Camera Inputs: 4 Channels
Built-In PoE Ports: 4
PoE Standard: IEEE 802.3af/at
PoE Power Budget: Up to 50W
Incoming Bandwidth: 40 Mbps
Outgoing Bandwidth: 80 Mbps

Up to 12MP IP Camera Recording

The DS-7604NXI-K1/4P/VPRO supports high-resolution IP cameras and recording resolutions up to 12MP.

Supported resolutions include:

12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 720p and lower resolutions

Supported video compression formats include:

H.265+ / H.265 / H.264+ / H.264

4K HDMI Output

Connect the NVR to a compatible 4K monitor or television for high-resolution surveillance viewing.

Maximum HDMI Output: 3840 × 2160 @ 30Hz
VGA Output: Up to 1920 × 1080 @ 60Hz

The recorder supports independent HDMI and VGA video output.

HDD Storage Up to 16TB

The NVR includes 1 SATA interface and supports a surveillance hard drive with capacity up to 16TB.

HDD Bays: 1
SATA Interfaces: 1
Maximum HDD Capacity: Up to 16TB

Hard drive is not included unless specifically stated in the product listing.

Audio, Alarm & Network Features

• 4-channel IP speaker input
• 1-channel two-way RCA audio input
• 1-channel RCA audio output
• 4 alarm inputs / 1 alarm output
• 1 × Gigabit Ethernet network interface
• Up to 128 remote connections
• Front USB 2.0
• Rear USB 2.0
• SADP support
• RTSP
• HTTPS
• IPv4 / IPv6
• DDNS
• NFS
• iSCSI
• UPnP

Key Specifications

Brand: Hikvision
Model: DS-7604NXI-K1/4P/VPRO
Recorder Type: Network Video Recorder (NVR)
IP Camera Channels: 4
Built-In PoE Ports: 4
Maximum Recording Resolution: 12MP
Incoming Bandwidth: 40 Mbps
Outgoing Bandwidth: 80 Mbps
PoE Budget: Up to 50W
PoE Standard: IEEE 802.3af/at
HDD Interfaces: 1 × SATA
Maximum HDD Capacity: 16TB
HDMI Output: Up to 4K
Ethernet: Gigabit RJ45
Power Supply: 48VDC, 1.35A
Power Consumption: ≤10W without HDD
Operating Temperature: -10°C to 55°C
Dimensions: 319 × 240 × 48 mm

The Hikvision DS-7604NXI-K1/4P/VPRO is well suited for customers looking for a compact 4-channel Hikvision PoE NVR with advanced AI video search and AcuSense capabilities.

Available from Tech Vision Electronics in Scarborough, Ontario, serving security camera installers, businesses and customers throughout Toronto, the GTA and Canada.
