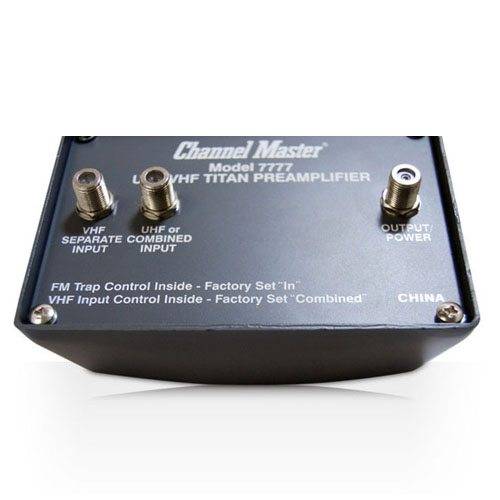

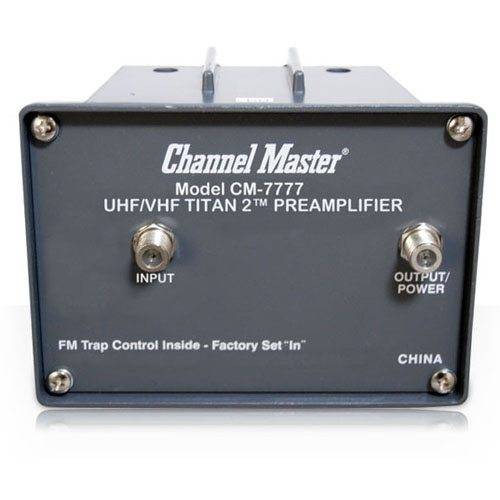

Channel Master CM-7777 Titan2 UHF/VHF Pre-Amp

Channel Master Cm-7777 Titan 2 Preamplifier will boost your antenna’s signal by many orders of magnitude. This antenna amplifier is a high-gain, low-noise preamplifier that allows lower antenna signals to be amplified to detectable levels. It’s especially well-suited to setups when all of the broadcast towers are more than 80 miles apart from the antenna. The Titan 2 High Gain Preamplifier consists of an outdoor amplification device mounted on the antenna system’s tower and an inside unit that supplies electricity to the outdoor amplification unit.

The exterior amplification unit provides electricity to the inside device. The indoor unit is housed within the building and is linked to the outside unit by a coaxial cable that passes through it. It is recommended that you have the Titan 2 High Gain Preamplifier installed by a professional. When this product is not used properly, it is conceivable that over-amplification may occur due to its high gain output. Over-amplification may cause the television tuner’s ability to receive and show some or all channels to be impaired, resulting in a blank screen.

Features:

• Improves signal quality
• Decreases pixilation
• May increase number of channels
• Ultra-low noise
• Gain – 30 dB
• Selectable FM signal pass-through
• Heavy-duty rating for outdoor use
• Mast mounted for close proximity to the antenna

Technical Specifications:

• Power supply input voltage: 120v AC-60Hz, 100 mA
• Power supply output voltage: 15v DC, 300 mA
• Impedance (Input and Output): 75 Ohm
• Connector: F-type
• Frequency range: 30 – 1002 MHz
• Gain: 30dB
• Noise figure: typically less than 2dB
• UL listed: Yes
• RoHS compliant : Yes
• Input return loss: <-15
• Output return loss: <-15
• Max input level: 15 dBmV
• Max output level: 40 dBmV
• FM trap: 88-108 MHz; >15dB
• Power consumption: <5W
• Operating temperature: -40 C to 60 C
• Weight (packaging): 2.0 lb
• Size (packaging): 3.3L x 5.3W x 7.8H in
• U-Bolt Diameter (Included): 1.875 in

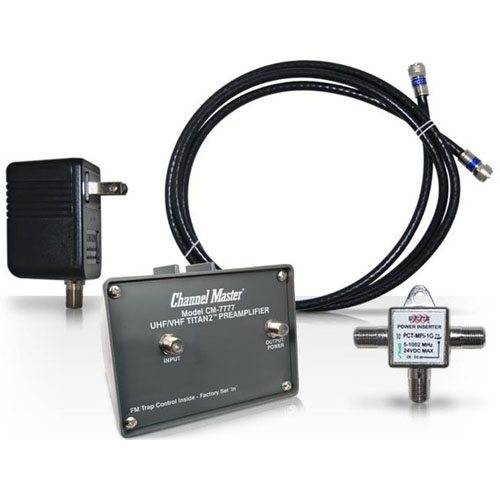

What’s included?

• Titan 2 High Gain Preamplifier
• Power inserter
• Power adapter
• Coaxial cable
• User Guide

Warranty:

1 year limited hardware manufacturer’s warranty.
