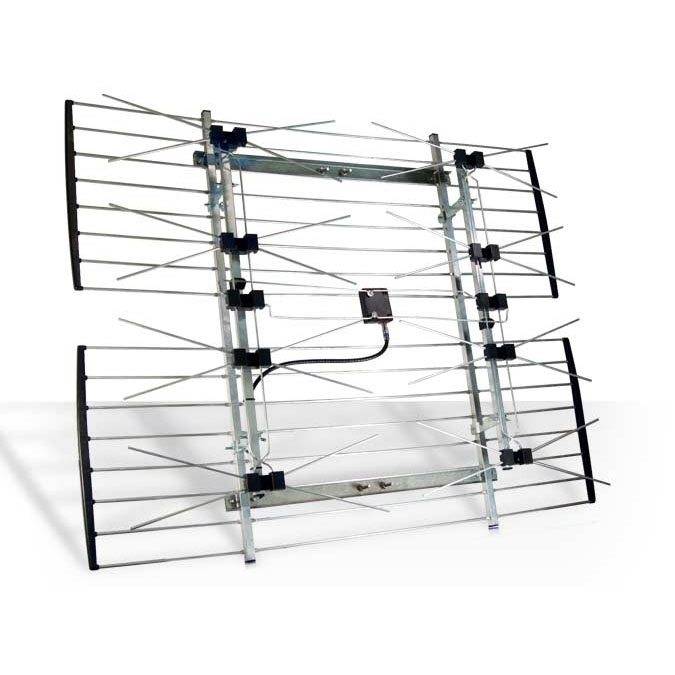

Channel Master CM-4228 HD 8-Bay (80 mi/128 km) UHF TV Antenna

In Store Purchase Only

$ 219.99


The 4228 is an 8-Bay, phased array, multi-directional outdoor antenna that receives high definition and digital signals from a span of 180 degrees. This antenna has a reception range of up to 80 miles.

The CM-4228HD digital HDTV antenna will receive both digital TV and HDTV programming. This HD television antenna picks up the UHF band (channels 14 thru 69) and has a TV antenna reception range of 80 miles. The 4228 picks up High VHF bands (channels 7 thru 13) up to 45 miles away. The 4228HD is one of our most popular antennas as its UHF reception is top of the line, its design is compact and this strong UHF antenna has high band VHF capabilities.

What’s included?

Channel master 4228 and Installation Guide (mast, mounting hardware, amplifier and coax cable not included)


  • Reception Range: 80 miles
  • Type: Outdoor
  • CEA Color Code: yellow, green, light green, red, blue,
  • Violet Reception Pattern: Multi-directional
  • Built-In Amplifier: no
  • Installation: roof, attic, mast, eave, chimney


1 year limited hardware manufacturer’s warranty.

Electrical Specifications:

  • Bandwith: 174 to 216 and 470 to 700 MHz
  • VHF Gain: 5dB
  • UHF Gain: 12Db
  • Front to Back Ratio: 18dB
  • Return Loss: N/A
  • Impedance: 75 Ohm

Mechanical Specifications:

  • Boom Length: N/A
  • Number of Elements: N/A
  • Max Element Width: N/A
  • Mounting Clamp: U bolt up to 2″
  • Turning Radius: 2 ft.
  • Output Connector: F-type
  • Weight (packaging): 10 lbs.
  • Size (packaging): 41L x 34W x 3H in
  • Wind Resistance: (at 100 mph, no ice) – 72 lbs.
SKU: CM-4228 Category:
Weight 10 lbs
Dimensions 43 × 28 × 3 in
