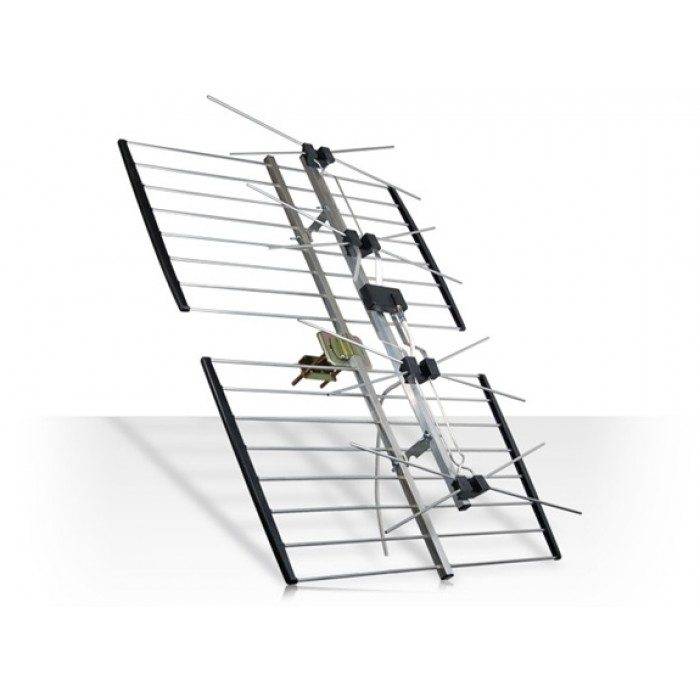

Channel Master CM-4221HD 4-Bay (60 mi/96 km) UHF TV Antenna

The CM 4221 is a 4-bay, phased array, multi-directional outdoor antenna that receives high definition and digital signals from a span of 180 degrees. This antenna has a reception range of up to 60 miles.

The Channel Master CM 4221HD is a 4-Bay outdoor TV antenna which will receive UHF and HD signals and will pick up available local channels 14 thru 69.

Description:

Medium range multi-directional (180-degree range) outdoor antenna up to 60 miles

What’s included?

CM 4221 Antenna and Installation Guide (mast, mounting hardware, amplifier and coax cable not included)

Features:

• Reception Range: 60 miles
• Type: Outdoor
• CEA Color Code: yellow, green, light green, red, blue
• Reception Pattern: Multi-directional
• Built-In Amplifier: no
• Installation: roof, attic, mast, eave, chimney

Warranty:

1 year limited hardware manufacturer’s warranty.

Electrical Specifications:

• Bandwith: 174 to 216 and 470 to 700 MHz
• VHF Gain: 3.5dB
• UHF Gain: 10Db
• Front to Back Ratio: 15dB
• Return Loss: N/A
• Impedance: 75 Ohm
• Mechanical Specifications:
• Boom Length: N/A
• Number of Elements: N/A
• Max Element Width: N/A
• Mounting: Clamp U bolt up to 2″
• Turning Radius: 1 ft.
• Output Connector: F-type
• Weight (packaging): 6 lbs.
• Size (packaging): 33.00L x 24.00W x 3.00H in
• Wind Resistance 🙁 at 100 mph, no ice) – 40 lbs.
