Channel Master 5020 Long Range UHF HD TV Antenna up to 100 Miles


In Store Purchase Only

$ 268.99

Compare

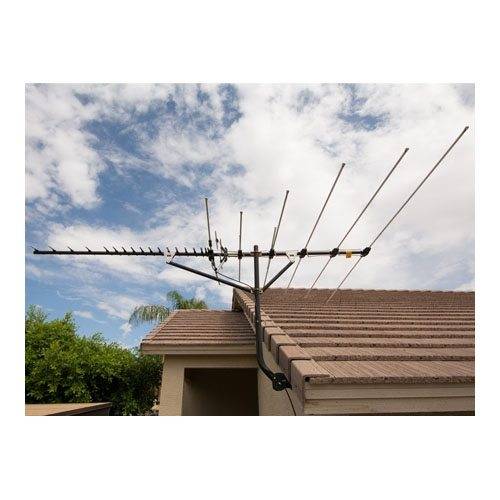

The CM 5020 is a directional (log periodic), line-of-sight outdoor antenna that receives high definition and digital signals from a single direction. This antenna has a reception range of up to 100 miles and is designed to withstand extreme outdoor conditions.

Long range directional (line of sight), rugged outdoor antenna up to 100 miles

What’s included?

  • CM 5020 ANTENNA, U-bolt (mast, amplifier and coax cable not included)
  • Installation Guide

Features:

  • Reception Range: 100 miles
  • Type: Outdoor
  • CEA Color: Code yellow, green, light green, red, blue,
  • violet Reception Pattern :directional
  • Built-In Amplifier :no
  • Installation: roof, mast, eave, chimney

Electrical Specifications:

  • Bandwith :54 to 216 and 470 to 700 MHz
  • VHF Gain: 10Db
  • UHF Gain: 16dB
  • Front to Back Ratio: 17dB
  • Return Loss: N/A
  • Impedance: 300 Ohm (75 Ohm balun included)

Mechanical Specifications:

  • Boom Length: 109″
  • Number of Elements :28 Max Element
  • Width: 100.5″
  • Mounting Clamp: U bolt up to 2.5″
  • Turning Radius: 6 ft.
  • Output Connector: F-type
  • Weight (packaging): 11.5 lbs.
  • Size (packaging) :74L x 9W x 8H in
  • Wind Resistance: (at 100 mph, no ice) – 30 lbs
SKU: CM-5020 Category:
Weight 15 lbs
Dimensions 74 × 10 × 8 in
