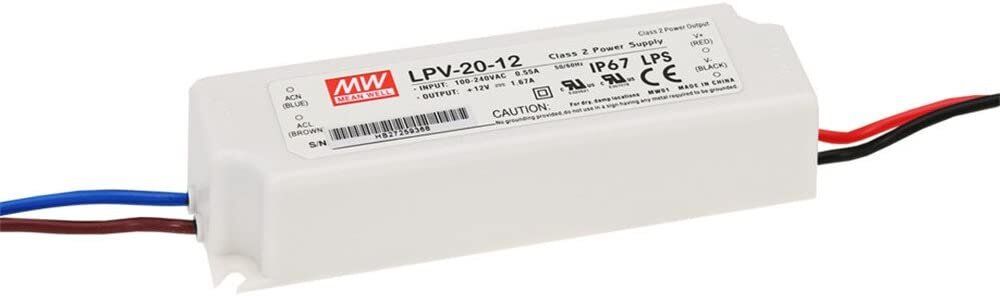

20W 12V 1.67A LPV-20-12 MEAN WELL Waterproof LED Lighting Drive Switching Power Supply Constant Voltage 110V/220V AC-DC Transformer


Global wide range AC input voltage Short circuit protection / over voltage protection

Fully enclosed 94V-0 fireproof plastic shell, accord with IP30 standard International safety certification: UL/CE

Constant current operation mode Class 2 power supply unit Class 2 power supply unit

Lead free process, in line with the requirements of environmental protection RoHS

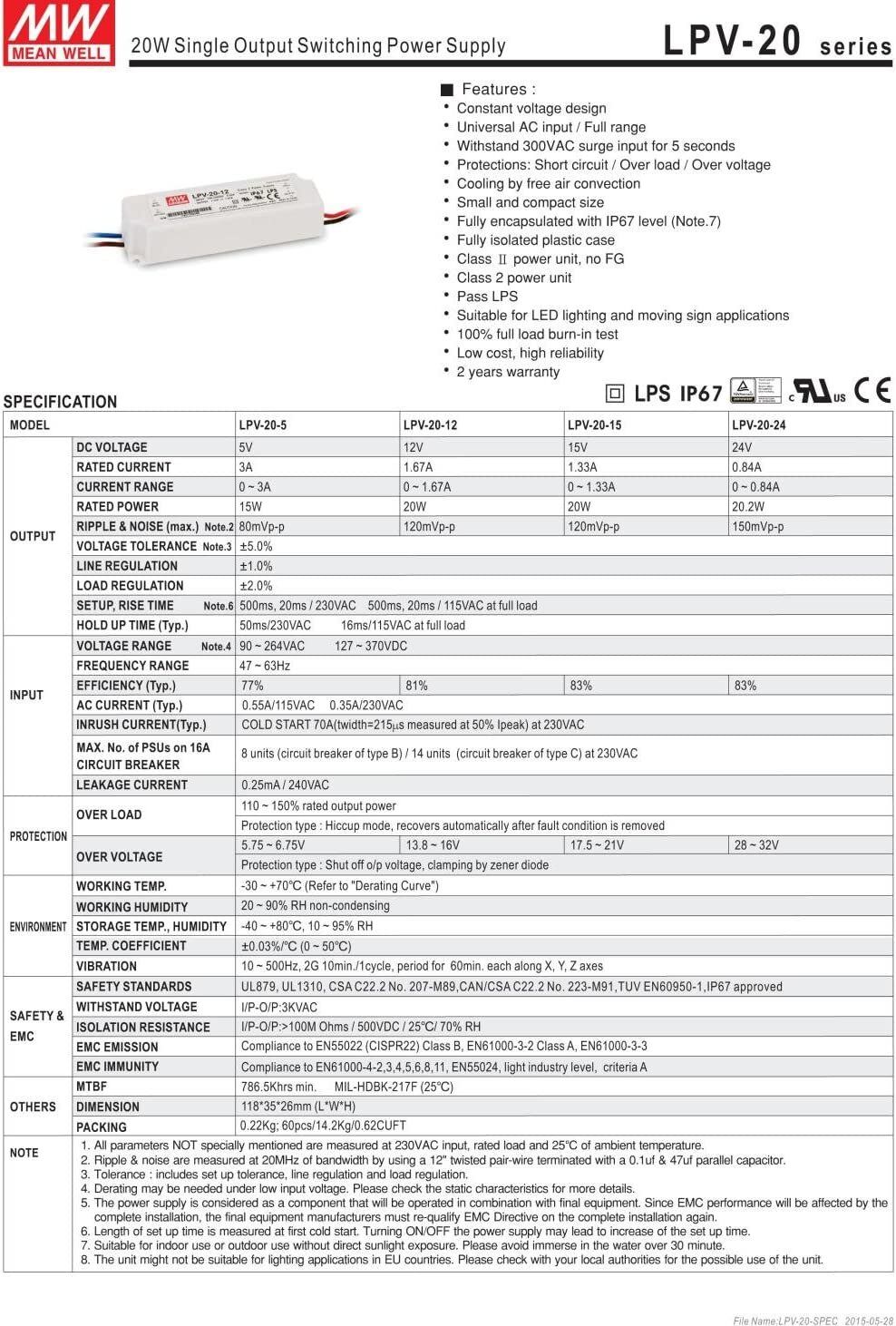

DC output range: 12V, 0 ~ 1.67A
Output voltage accuracy: + 5%
The input voltage range is:90 to 264VAC/127 to 370VDC
Input surge current: cold start, 70A/230V
Leakage current: <0.25mA / 240VAC
Overload protection: over current point in 110% ~ 150%, automatic detection, automatic recovery
Over voltage protection: when the rated output voltage is between 115% and 135%, the output voltage is switched off and the diode is clamped
Start up hold time: 230VAC full load, 500ms, 20ms, 50ms
Insulation characteristic: between input and output: 3KVAC
Operating temperature: -30 ~ +70 DEG C (see output curve)
Seismic resistance: 10 to 500Hz, 2G 10 minutes / cycle, XYZ each axis 60 minutes
Security certification: through UL879, UL1310, CSA-C22.2, No.207-M89, CAN/CSA-C22.2, No.223-M91, TUV, EN60950-1, IP67 certification
EMC standards: Emission: EN55022 (CISPR22), class, B harmonic: EN61000-3-2, class, A, EN61000-3-3
EMC standard: anti-interference: EN61000-4-2,3,4,5,6,8,11, EN55024, class a light industry standard
MTBF: 786 thousand and 500 hours, MIL-HDBK-217F (25 C)
Connection mode: input / output: UL standard, 18AWG * 2C (60cm)

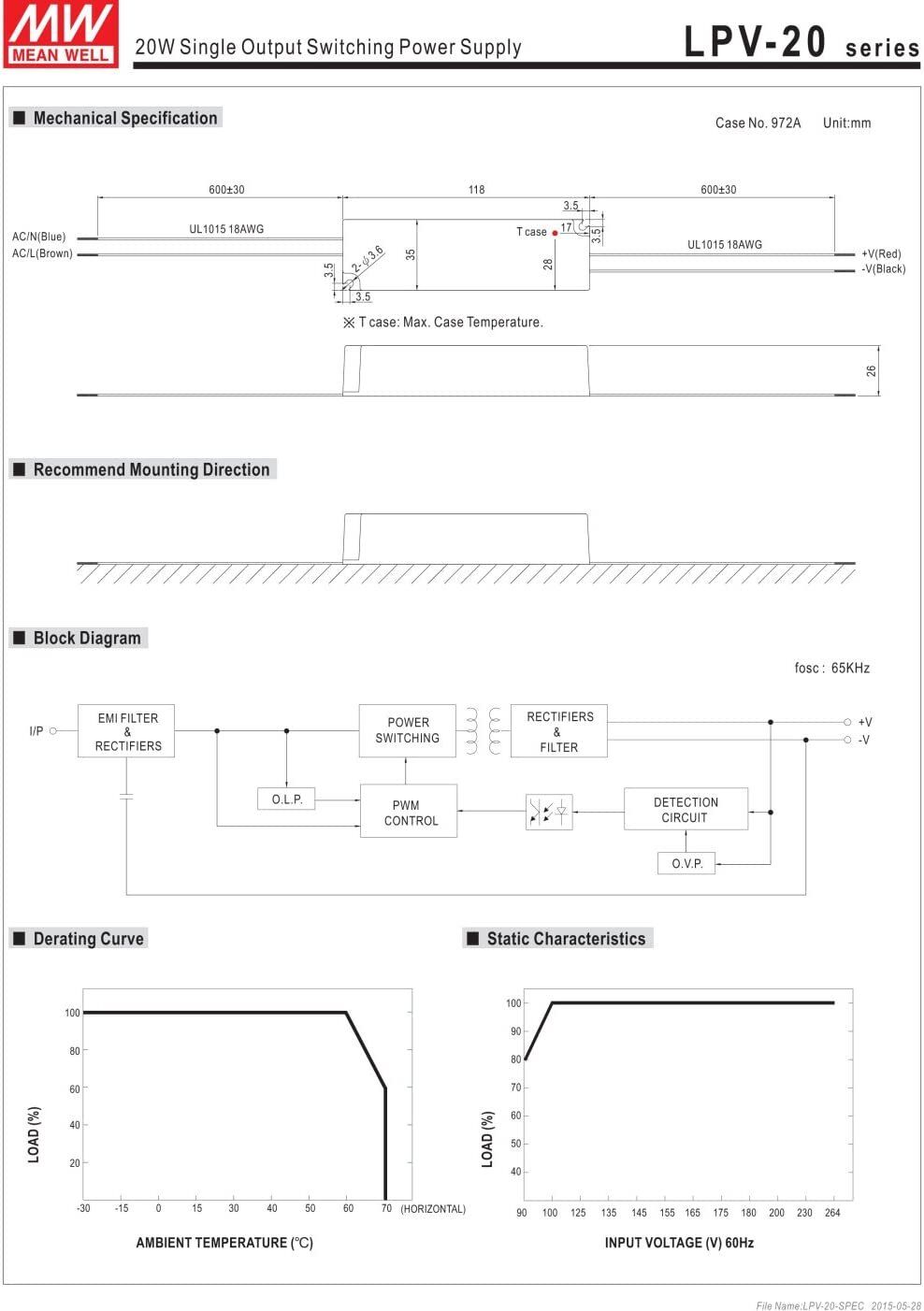

Shell number: 972A
Size: 118 * 35 * 26mm (L * w * h)

SKU: Mean well LPV-20-12 Category:
Weight 1 lbs
Dimensions 6 × 6 × 3 in
