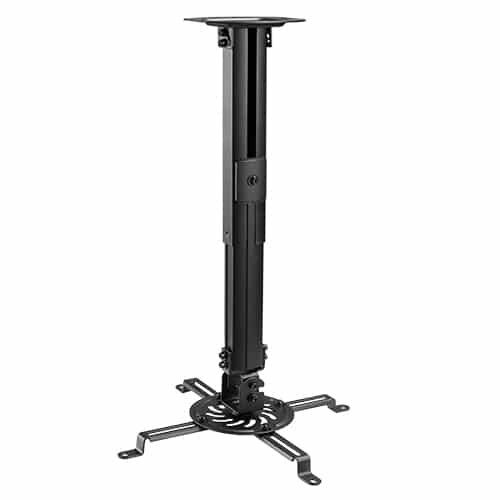

The PM-612 is a universal ceiling mount for projectors up to 13.5kg/29.7bs. Tilting ceiling plate for flat and sloping ceiling application. It offers multidirectional positioning with four adjustable support arms that can fit a wide range of mounting holes. The quick release connector allows the projector to be installed quickly and then easily released for maintenance, without re-alignment. The retractable aluminum column provides height adjustment for your different choices. This projector mount is perfect for use in classrooms, boardrooms, hotels, bars and restaurants or anywhere a projector needs to be mounted.
FEATURES
-
●Adjustable Length: for your different choices
-
●360° Rotating Joint: for optimal viewing angles
-
●Cable Management: keeps everything organized
-
●Adjustable Ceiling Plate: for mounting in flat or sloping ceiling
-
●Swiveling Joint: offers maximum viewing flexibility
-
●Adjustable Support Arms: fit most projectors with ease
SPECIFICATIONS
Product Category: |
Projector Mount |
Rank: |
Economy |
Material: |
Aluminum,Plastic,Steel |
Surface Finish: |
Powder Coating |
Color: |
Matte Black,Matte White |

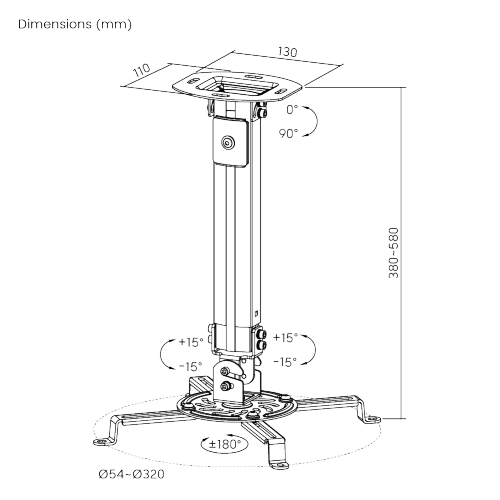

Dimensions: |
334x334x580mm (13.1″x13.1″x22.8″) |
Weight Capacity: |
13.5kg (29.7lbs) |
Mounting Range: |
54~320mm (2.1″~12.6″) |
Tilt Range: |
+15°~-15° |
Swivel Range: |
+15°~-15° |
Rotation: |
360° |
Extension Range: |
380~580mm (15″~22.8″) |
Installation: |
Ceiling Mounted |
Cable Management: |
Yes |
Accessory Kit Package: |
Normal/Ziplock Polybag |
