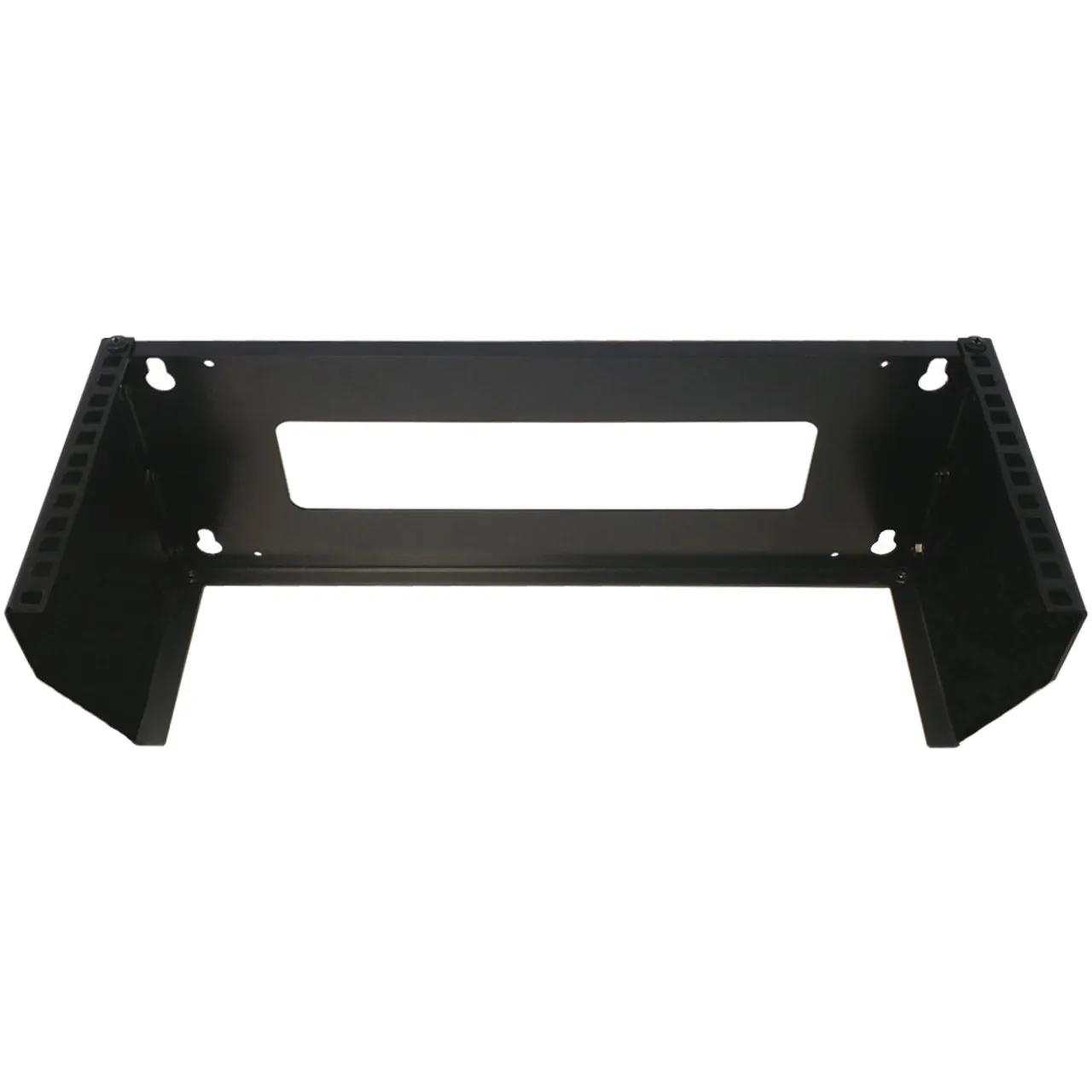

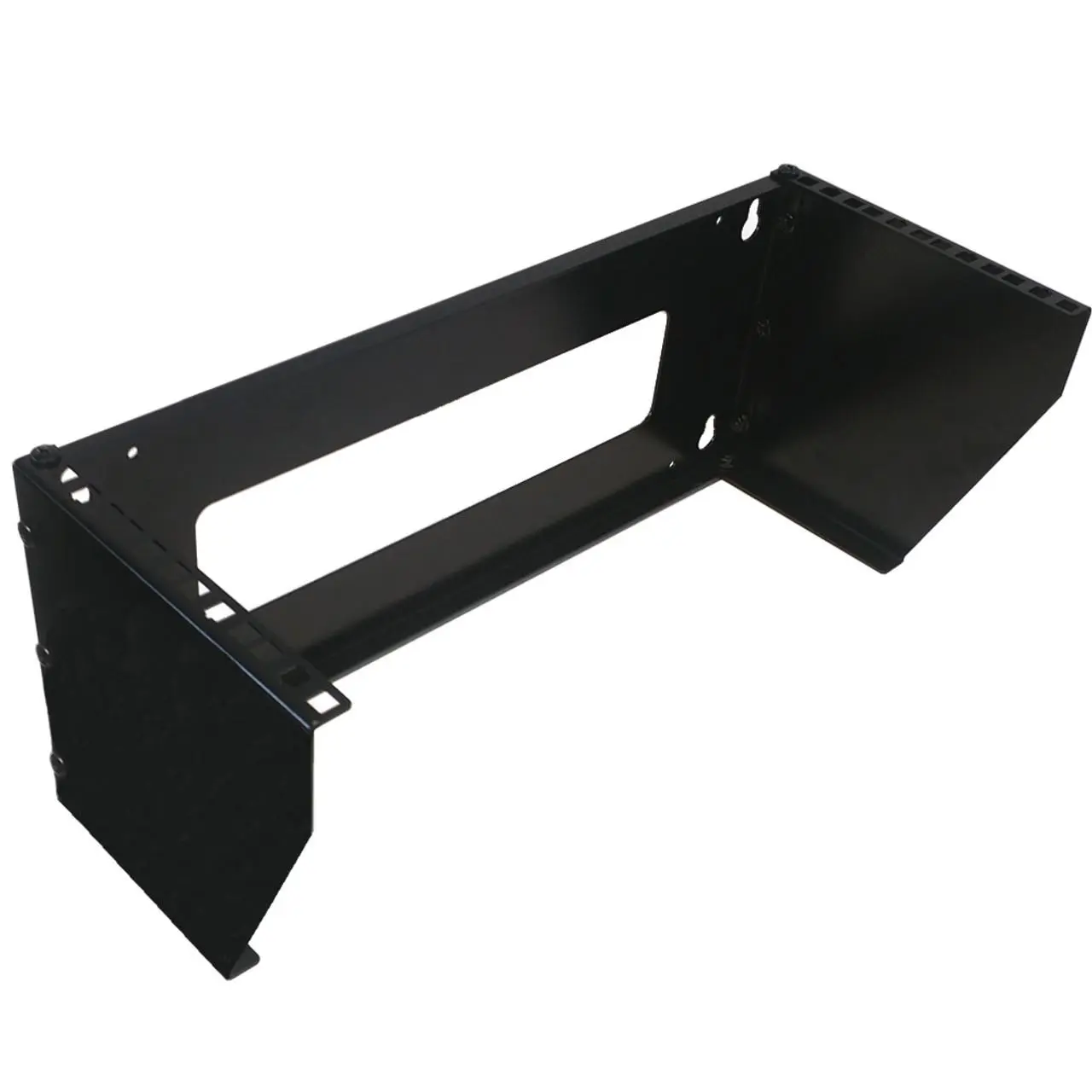

This vertical wall mount rack is 4U in depth. It is used for mounting 19″ wide networking equipment vertically. Works well in a small office or home where space is limited.
|
Physical Characteristics
|
|
|---|---|
| Color | Black |
| Finish | Powder Painted |
| Material | 2.0mm SPCC Cold Rolled Steel |
| Depth in units | 4U |
| Height in inches | 7.8 inches [198mm] |
| Rail Mounting Style | Square Hole Punched Rails |
| Mounting Rail Thickness | 2.2mm |
| Mounting Width | 19 Inches |
| Overall Dimensions | 7.8H x 19.2W x 7.7D Inches |
| Rear Wire Access Hole | 1 (15.6 x 3 inches) |
| Load Capacity | 66lbs (30kg) |
| Wall Mounting Hardware | Not Included |
| Equipment Mounting Hardware | Included |
|
Approvals
|
|
| ANSI/EIA | Yes |
| RS-310-D | Yes |
| IEC60297-2 | Yes |
| DIN41494 | Yes |
| PART1 | Yes |
| PART7 | Yes |
|
Environmental
|
|
| RoHS | Yes |
| Reach | Yes |
|
Packaging Information
|
|
| Package Quantity | 1 |
|
Content
|
|
| Included in Package | 1 – Vertical Wall Mount Rack |
| 10 – M6 Black Screws with Washers and Clip Nuts | |
| 10 – M6 Clip Nuts | |
| Weight | 5 lbs |
|---|---|
| Dimensions | 22 × 9 × 7 in |
