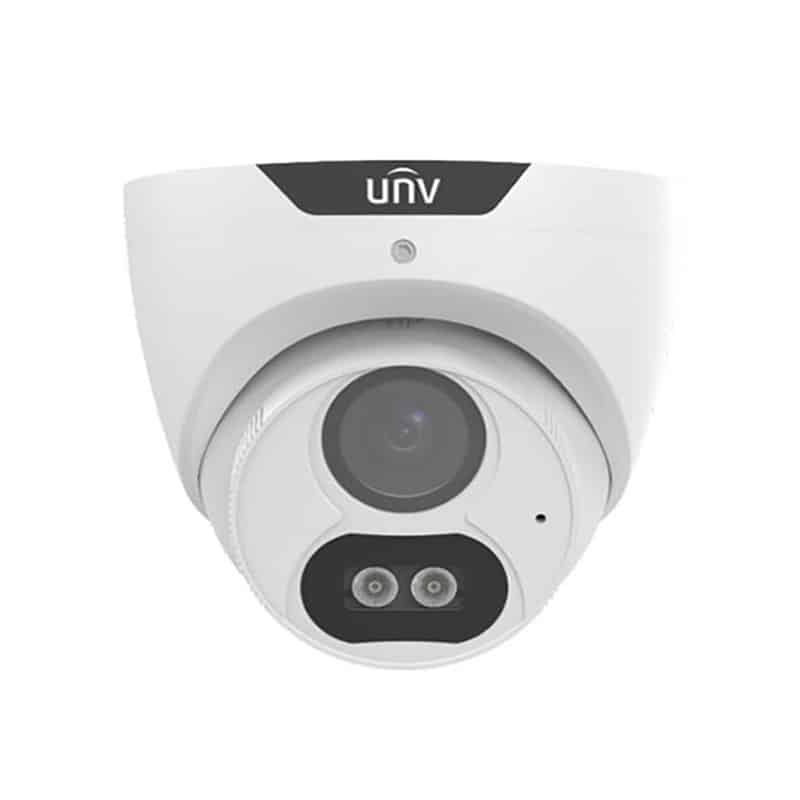

UNV UAC-T125-AF28M-W 5MP 2.8MM Colorhunter Fixed Turret Analog Camera

UNV UAC-T125-AF28M-W 5MP 2.8MM Colorhunter Fixed Turret Analog Camera

-5MP high quality imagin

-TVI/AHD/CVI/CVBS

-Supports white light illumination, 24/7 color images

-Supports 180° horizontal flip, 180° vertical flip

-OSD configuration menu, easy to operat

-IP67 waterproof and dustproof design, high reliability

-OSD configuration menu in 11 languages

-Built-in microphone for high quality audio transmission via coaxial cables

-Metal front face and housing

-3-Axis

Model UAC-T125-AF28M-W
Sensor
Pixel 5MP
Size 1/2.7″
Minimum illumination 0.005lux (F1.4, AGC ON)
0 lux (white light on)
Lens
Lens 2.8mm
Lens mount M12
Angle of view H: 111.5°  V: 58.9°  D: 134.8°
Illuminator
Illuminator Two white-light illuminators
Illumination distance 40m
Lifetime ≥60,000 hours
Video
Resolution 5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V)
4MP: 2560(H)×1440(V)
1080P: 1920(H)×1080(V)
Frame rate TVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
CVBS: PAL, NTSC
Shutter time PAL: 1/25s-1/50000s
NTSC: 1/30s–1/50000s
Exposure mode Four modes: Global (default), BLC, HLC, DWDR
Day/Night 24/7 color images
Digital noise reduction 2D
White balance Two modes: Auto (default), Manual
WDR DWDR
Flip Supports 180° horizontal flip, 180° vertical flip
Audio
Microphone Built-in Mic
Camera audio TVI: 5MP@20fps, 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps
Interface
Power 5.5mm power interface
Video output BNC, supports TVI/AHD/CVI/CVBS
Operating environment
Temperature -30°C to 60°C (-22°F to 140°F)
Humidity ≤95% (RH, non-condensing)
Surge protection 4kV
Ingress protection IP67
General
Power DC12V (±25%), with reverse polarity protection. Max 3.28W
Mount Surface mount (default), optional junction box and wall mount bracket
Dimensions Φ111mm*96mm (diameter*height)
Material Metal and plastic
Weight 356g (0.79lb)
Certification CB, CE, FCC, UL
