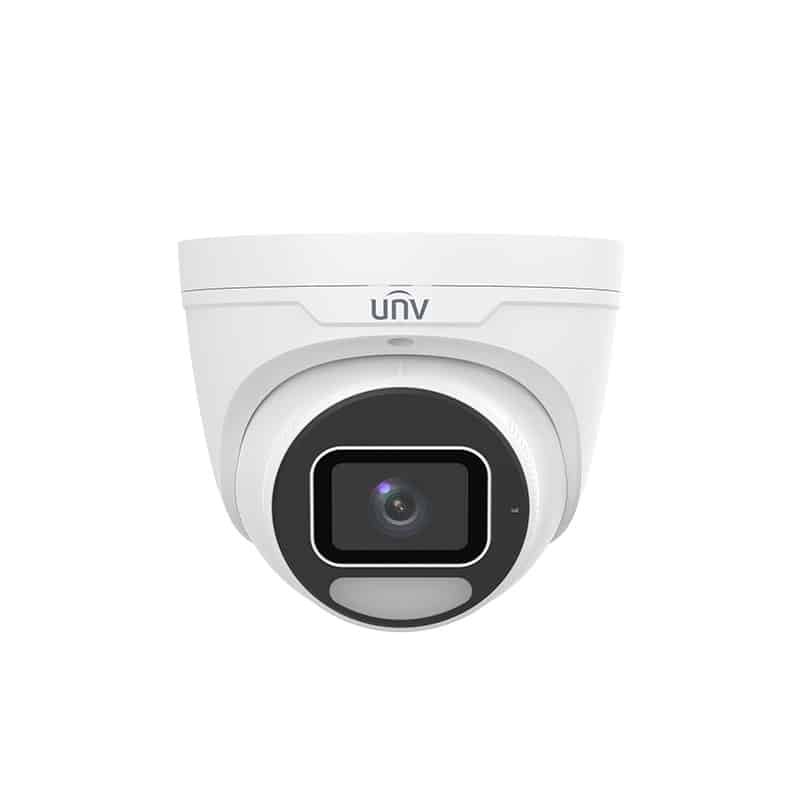

UNV IPC3638SE-ADF28K-WP-I1 8MP WDR OwlView Plus 2.8mm Wise ISP Eyeball Network Camera

UNV IPC3638SE-ADF28K-WP-I1 8MP WDR OwlView Plus 2.8mm Wise ISP Eyeball Network Camera

– High quality image with 8MP, 1/1.2″ CMOS sensor

– 8MP (3840 × 2160)@30/25 fps; 5.3MP (3072 × 1728)@30/25 fps; 3.6MP (2560 × 1440)@30/25 fps; 2MP (1920 × 1080)@30/25 fps; 720P (1280 × 720), Max 30/25 fps

– Ultra 265, H.265, H.264, MJPEG

– Colorhunter with Wise-ISP technology ensures 24-hour full-color images

– Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection

– Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle

– Intelligent People Flow Counting and Crowd Density Monitoring

– Smart intrusion prevention with Color retrieval Auto Scene Match (ASM)

– 130 dB true WDR technology enables clear image in strong light scen

– Support 9:16 Corridor Mode

– Alarm: 1 in/1 out, Audio: 1 in/1 out, Built-in Mic

– White Light, up to 30 m warm light distance

– Supports up to 512 GB Micro SD Card

– IK10 vandal resistant and IP67 protection

Model IPC3638SE-ADF28K-WP-I1 IPC3638SE-ADF40K-WP-I1
Camera
Max Resolution 8 MP
Sensor 1/1.2″ CMOS
Min. Illumination Color: 0.0003 Lux (F1.0, AGC ON)
Shutter Auto/Manual, 1 to 1/100000 s
Adjustment Angle Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
S/N >56 dB
WDR 130 dB
Lens
Focal Length 2.8 mm 4.0 mm
Iris Type Fixed
Iris F1.0
Field of View (H) 105.0° 88.3°
Field of View (V) 56.1° 48.3°
Field of View (D) 121.0° 102.5°
Lens Type Fixed
DORI
DORI Distance (Lens) 2.8 mm 4 mm
DORI Distance (Detect) 43.4 m (142.4 ft.) 62.1 m (203.7 ft.)
DORI Distance (Observe) 17.4 m (57.1 ft.) 24.8 m (81.4 ft.)
DORI Distance (Recognize) 8.7 m (28.5 ft.) 12.4 m (40.7 ft.)
DORI Distance (Identify) 4.3 m (14.1 ft.) 6.2 m (20.3 ft.)
Illuminator
Supplemental Light Warm light
Illumination Distance (Warm Light) 30 m (98.4 ft)
Light On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile Baseline profile, Main profile, High profile
Frame Rate-Main Stream 8 MP (3840 × 2160), max. 30 fps; 5.3 MP (3072 × 1728), max. 30 fps; 3.6 MP (2560 × 1440), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps
Frame Rate-Sub Stream 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
Frame Rate-Third Stream D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
Video Bit Rate 128 Kbps to 16 Mbps
U-code Support
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
ROI Support
Video Stream Triple streams
White Balance Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Auto Scene Match (ASM) Support
Flip Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
Dewarping N/A
HLC Support
BLC Support
Defog Digital defog
Intelligent
Smart Intrusion Prevention Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
Statistical Analysis N/A
People Counting Support people flow counting and crowd density monitoring
Attribute Collection SIP with color retrieval
Events
Basic Detection Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind
General Function Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output
Audio
Audio Compression G.711U, G.711A
Audio Bitrate 64 Kbps
Two-way Audio Support
Suppression Support
Sampling Rate 8 kHz
Storage
Edge Storage MicroSD, up to 512 GB
Network Storage ANR, NAS (NFS)
Network
Protocols IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH
Compatible Integration ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
User/Host Up to 32 users. 3 user levels: administrator, common user and operator
Security Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client UNV-Link, UNV-Link Pro, EZStation
Web Browser Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Interface
Audio I/O 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Alarm I/O 1/1
Serial Port N/A
Built-in Mic Support
Built-in Speaker N/A
WIFI N/A
Network 1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output N/A
Certification
EMC CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130)
FCC (FCC 47 CFR part15 B)
Safety CE-LVD (EN 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Protection IP67 (IEC 60529)
IK10 (IEC 62262)
General
Power DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption Max. 6.0 W
Power Interface Ø5.5 mm coaxial power plug
Dimensions Ø129 mm × 110 mm (Ø5.1″ × 4.3″) (Ø × H)
Weight 0.69 kg (1.52 lb)
Material Metal
Working Environment -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection 4 KV
Reset Button Support
Web Client Language 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
