– Day/night functionality
– Smart dual light, up to 30 m (98 ft) IR/warm light distance
– 2D/3D DNR (Digital Noise Reduction)
– Ultra 265, H.265, H.264, MJPEG
– Built-in Mic
– ROI (Region of Interest)
– ONVIF Conformance
– Wide temperature range: -30°C ~ +60°C (-22°F ~ 140°F)
– Wide voltage ranges of ±25%
– IP67

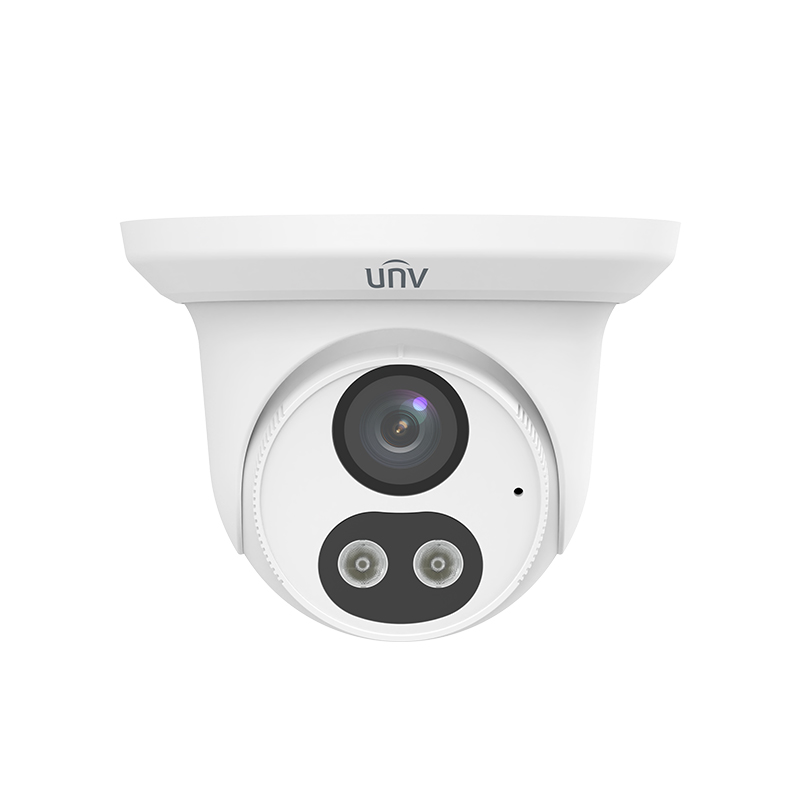

| Model EC-T4F28M-DL Camera |
| Resolution |
4MP |
| Sensor |
1/3.0″ CMOS |
| Min. Illumination |
Color: 0.01 lux (F1.6, AGC ON), 0 lux with IR |
| Shutter |
Auto/Manual, 1 ~ 1/100000s |
| Adjustment angle |
Pan: 0° ~ 360°, Tilt: 0° ~ 80°, Rotate: 0° ~ 360° |
| S/N |
>52dB |
| WDR |
DWDR |
| Lens |
| Lens type |
2.8mm |
| Iris Type |
Fixed |
| Iris |
F1.6 |
| Field of View (H) |
97.0° |
| Field of View (V) |
52.2° |
| Field of View (D) |
107.5° |
| DORI |
| DORI Distance(Lens) |
2.8mm |
| DORI Distance(Detect) |
63.0m(206.7ft) |
| DORI Distance(Observe) |
25.2m(82.7ft) |
| DORI Distance(Recognize) |
12.6m(41.3ft) |
| DORI Distance(Identify) |
6.3m(20.7ft) |
| Illuminator |
| Illumination Distance(IR) |
30m |
| Illumination Distance(Warm Light) |
30m |
| Wavelength |
850nm |
| IR On/Off Control |
Auto/Manual |
| Video |
| Video Compression |
Ultra 265; H.265; H.264; MJPEG |
| H.264 Code Profile |
Baseline profile, Main profile, High profile |
| Dual-Stream |
Yes |
| Audio |
| Audio Compression |
G.711A, G.711U, G.726 |
| Two-Way Audio |
Yes |
| Interface |
| Alarm Input/Output |
1/1 |
| Ethernet |
1 RJ45 10M/100M self-adaptive Ethernet Interface |
| Audio Input/Output |
1/1 (2.0Vpp @ Input, 600Ω) |
| RS485 |
1 (for Pan/Tilt) |
| General |
| Power Supply |
12V DC, ±25%, PoE (IEEE 802.3af) |
| Power Consumption |
Max 12W |
| Working Temperature |
-30°C ~ +60°C (-22°F ~ +140°F) |
| Working Humidity |
Humidity: 95% or less |
| Ingress Protection |
IP67 |
| Impact Protection |
IK10 |
| Weight |
0.87kg |
| Dimension |
130mm × 120mm × 260mm |
