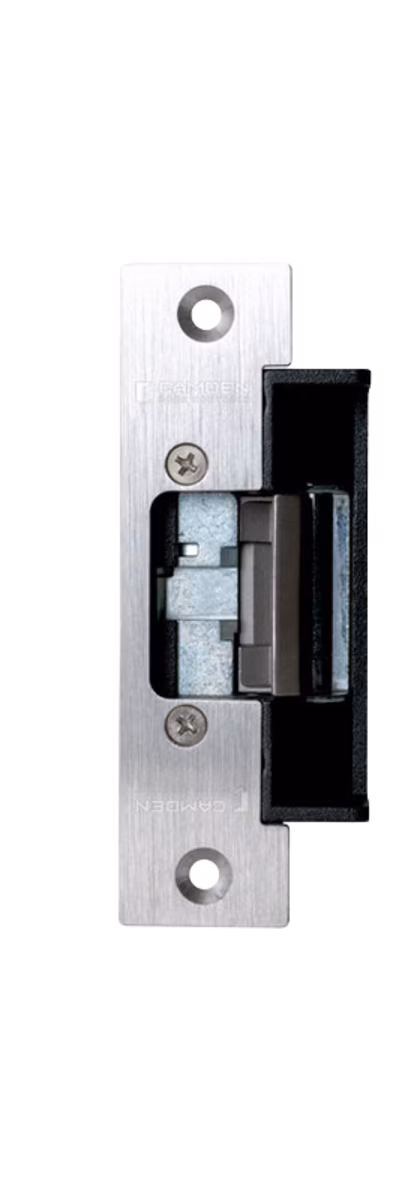

Universal 12/24V AC/DC Electric Strike – 1000 lb | Fail Safe / Fail Secure | CMD-OE-ED2010

Universal 12/24V AC/DC Electric Strike – CMD-OE-ED2010

The CMD-OE-ED2010 Universal Electric Strike is designed for reliable electronic door locking and access control system installations. With a 1,000 lb static strength rating and field-selectable fail-safe or fail-secure operation, it provides flexibility for a variety of commercial door security applications.

The electric strike operates on 12V or 24V AC/DC, allowing it to integrate with a wide range of compatible access control power systems. It draws 300mA at 12V DC or 150mA at 24V DC.

An ANSI square faceplate is included for professional installation, while the compact strike body helps accommodate access control applications where space is limited.

Key Features

• Universal electric door strike
• 1,000 lb static strength
• 50 ft-lb dynamic strength
• Supports 12V / 24V AC/DC
• Field-selectable fail-safe / fail-secure operation
• ANSI square faceplate
• 300mA current draw at 12V DC
• 150mA current draw at 24V DC
• Compact design
• Designed for electronic access control systems
• Suitable for professional commercial door security installations

Specifications

Model / SKU: CMD-OE-ED2010
Product Type: Universal Electric Strike
Faceplate: ANSI Square
Voltage: 12/24V AC/DC
Current @ 12V DC: 300mA
Current @ 24V DC: 150mA
Static Strength: 1,000 lb
Dynamic Strength: 50 ft-lb
Operation: Field-Selectable Fail Safe / Fail Secure
Dimensions: 3-3/8″ H × 1-7/8″ W × 1-7/32″ D

Available from Tech Vision Electronics in Scarborough, Ontario, serving access control installers, contractors and customers throughout Toronto, the GTA and Canada.
