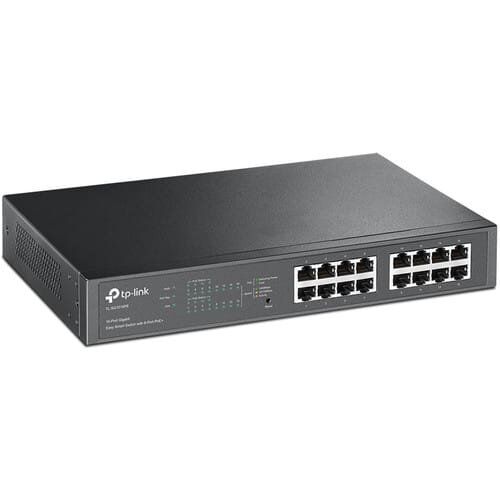

TP-Link TL-SG1016PE 16-Port Gigabit PoE+ Managed Switch
$ 209.99 $ 349.99
- 16 10/100/1000Mbps RJ45 ports
- Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
- With a total PoE power budget of 110W, up to 30W per port
- Works with IEEE 802.3af/at compliant devices, expanding home and office networks
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and management utility simplify configuration
| Weight | 5.5 lbs |
|---|---|
| Dimensions | 16 × 10 × 4 in |
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
| Interface | 16 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | 1 |
| Physical Security Lock | Yes |
| PoE Ports (RJ45) | Standard: 802.3 at (30W) PoE Ports: Port 1- Port 8 Total PoE Power Budget: 110W |
| Dimensions ( W x D x H ) | 11.6 × 7.1 × 1.7 in. (294 × 180 × 44 mm) |
| Mounting | 13″ and 19″ 1U rack mountable |
| Max Power Consumption | 14.7W (no PD load) 131.4W (with 110W PD load) |
| Max Heat Dissipation | 50.2 BTU/h (no PD load) 448.4 BTU/h (with 110W PD load) |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 32Gbps |
| Packet Forwarding Rate | 23.8Mbps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1Mb |
| Jumbo Frame | 9KB |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | Support Port-Based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control |
| L2 Features | IGMP Snooping V1/V2/V3 Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention |
| VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
| Management | Web-based GUI Easy Smart Configuration Utility POE Auto Recovery |
| Transmission Method | Store-And-Forward |
| OTHERS | |
|---|---|
| Certification | FCC, RoHS |
| Package Contents | TL-SG1016PE Power Cord Installation Guide Rackmount Kit Rubber Feet |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
