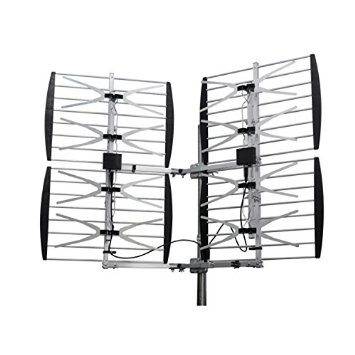

Smart Antenna 8 Bay Outdoor High Definition VHF UHF HD TV Antenna

The SA-958 digital HDTV antenna will receive both digital TV and HDTV programming. This HD television antenna picks up the VHF, UHF band (channel 2.1 thru 69) and has a TV antenna reception range of 80 miles.

Specifications:

• Receives digital & analog VHF, UHF TV signals
• Range is up to 80+ miles
• Reception? Beam width? is 45 degrees
• 8-bay bow-tie dipole design
• Length 110, Height 82, Depth 10 CM
• 20? turning radius (if used with an antenna rotor)
• Includes 300-ohm-to-75-ohm adapter
• Mast not included
• RG-6 cable is recommended
• Far Suburban Rated
• This is a Large Directional antenna and yields a beam width of about 60 degrees

Technical Specs:

• Frequency Range: VHF: 174-230 MHz; UHF:470-862 MHz
• Receiving Range: UHF, VHF
• Gain: VHF: 12-15 dB; UHF 12-15 dB
• Channels: Ch 2.1-69, Ch. (Covers USA & Canadian reception)
• Impedance: 75 Ohm
• Noise Figure: 3.0 dB or less.
• Power Supply: AC 110V 50Hz, DC 12V 50mA
• Front-Back ratio: 75 15-20 dB
• Beam Width H/V: H 60§
• Effective Reception Distance: 45-80 Miles, 70-130 Km
• Elements: Bay Elements
• Dimensions (installed): Length 110, Height 82, Depth 10 CM

What’s included?

• Smart Antenna SA958 (mast, mounting hardware, amplifier and coax cable not included)
• Assembly Instructions: Yes
• Balun Combiner and Patch Cables: Yes
• U-Bracket Clamps: Yes

Warranty:

1 year limited hardware manufacturer’s warranty.
