This Skynet Cables bulk CAT6 cable comprises 4 pairs of 23AWG solid bare copper wires. Tailored for data networking, PoE, security networking, and voice applications, this cable is specifically crafted for riser environments, serving as premise wiring, commonly terminated from a patch panel to a Cat6 jack.
CAT6 Bulk Cable

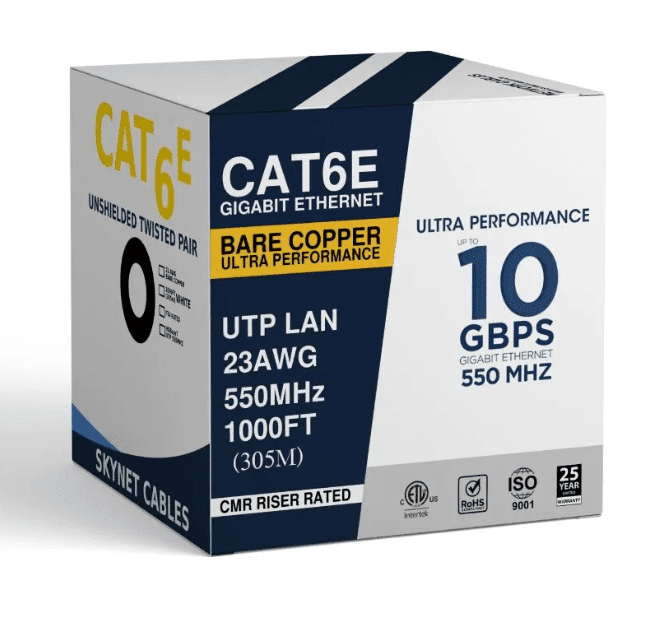

Skynet Cables 1000ft 4 Pair Cat6 Solid U/UTP 550MHz 23AWG CMR Riser Bulk Cable
$ 199.99 $ 249.99
Weight | 34 lbs |
---|---|
Dimensions | 15 × 15 × 10 in |
COLOR | BLACK, WHITE |
Physical Characteristics
|
||||
---|---|---|---|---|
Color | Blue/Orange/Purple/White | |||
Number of Pairs | 4 Pairs | |||
Wire Gauge | 23AWG Solid | |||
Conductor Material | Solid Annealed Bare Copper | |||
Insulation Material | HDPE | |||
Overall Diameter | 0.037 inch | |||
Average Thickness | 0.0088 inch | |||
Jacket Material | PVC – Polyvinyl Chloride | |||
Jacket Rating | CMR [Riser Rated] | |||
Average Wall Thickness | 0.023 inch | |||
Nominal Outer Diameter | 0.205 inch | |||
Cable Shielding | None | |||
Ripcord | Yes | |||
Temperature Rating | Installation: 0℃ ~ +60℃ Operating: -20℃ ~ +75℃ |
|||
Mechanical Characteristics
|
||||
Before Aging | Tensile Strength (Mpa): >= 13.8 Elongation (%): >= 100 |
|||
Aging Condition (ºC x hrs) |
100×168 | |||
After Aging | Tensile Strength (Mpa): >= 85% of unaged Elongation (%): >= 50% of unaged |
|||
Performance
|
||||
Frequency | 550 MHz | |||
Approvals
|
||||
c(ETL)us | Yes | |||
ISO/IEC 9001 | Yes | |||
ANSI/TIA-568.C.2 | Yes | |||
Environmental
|
||||
RoHS | Yes | |||
Packaging Information
|
||||
Package Quantity | 1 | |||
Product Weight | 33.5 lbs [15.2kg] |
