12U 19″ Wall Mount & Free Standing Network Rack with Shelves & Lockable Wheels

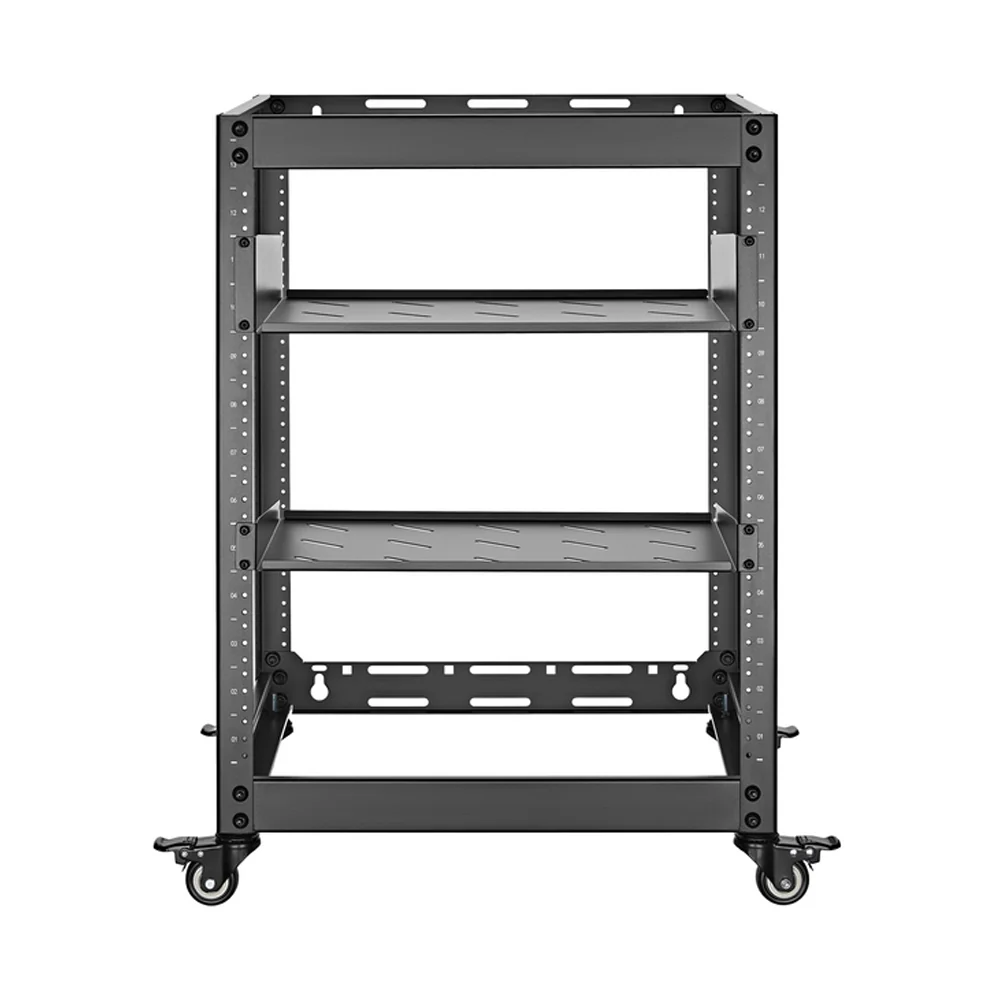

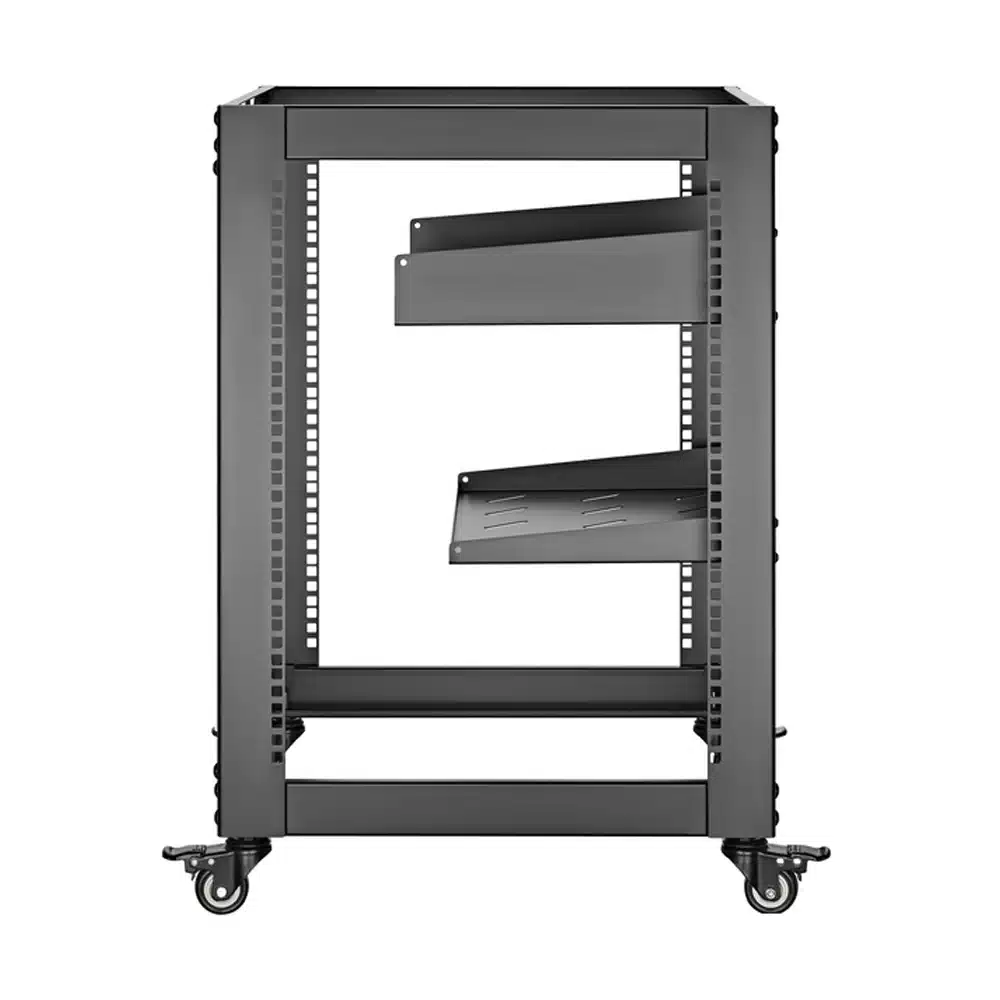

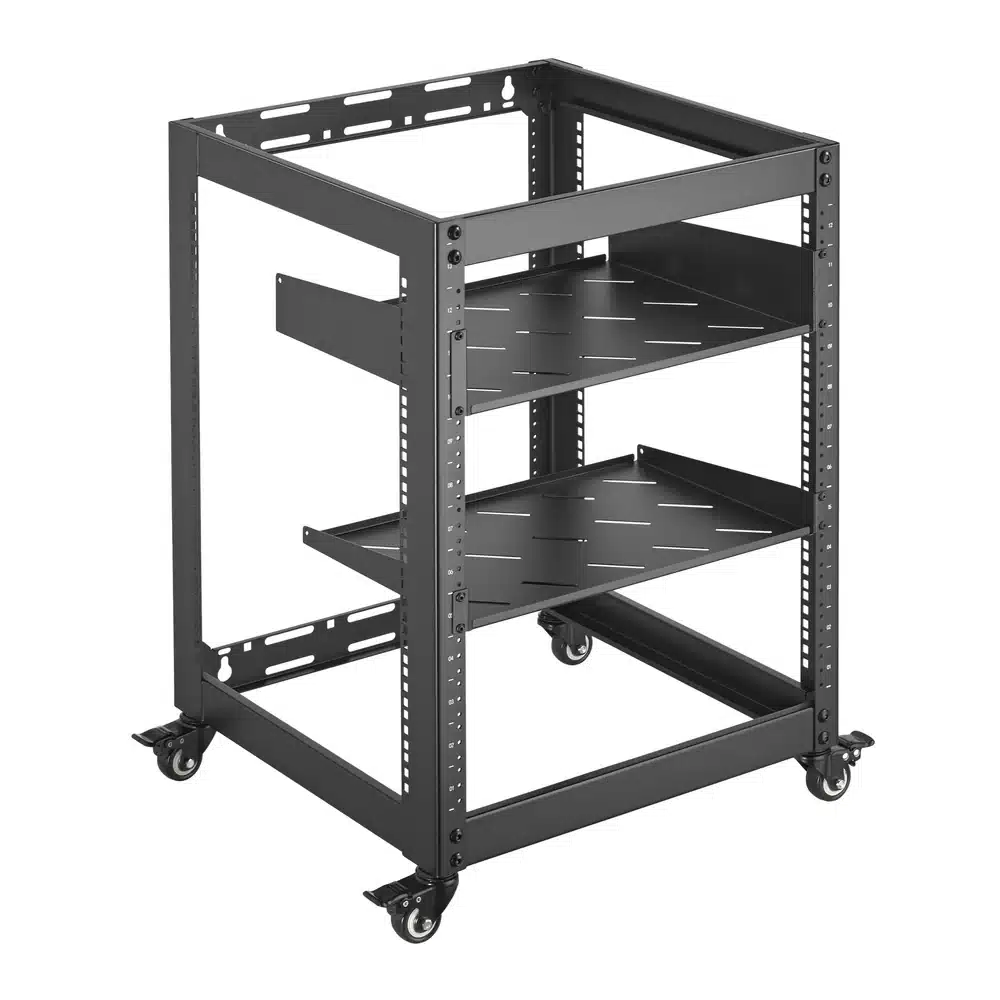

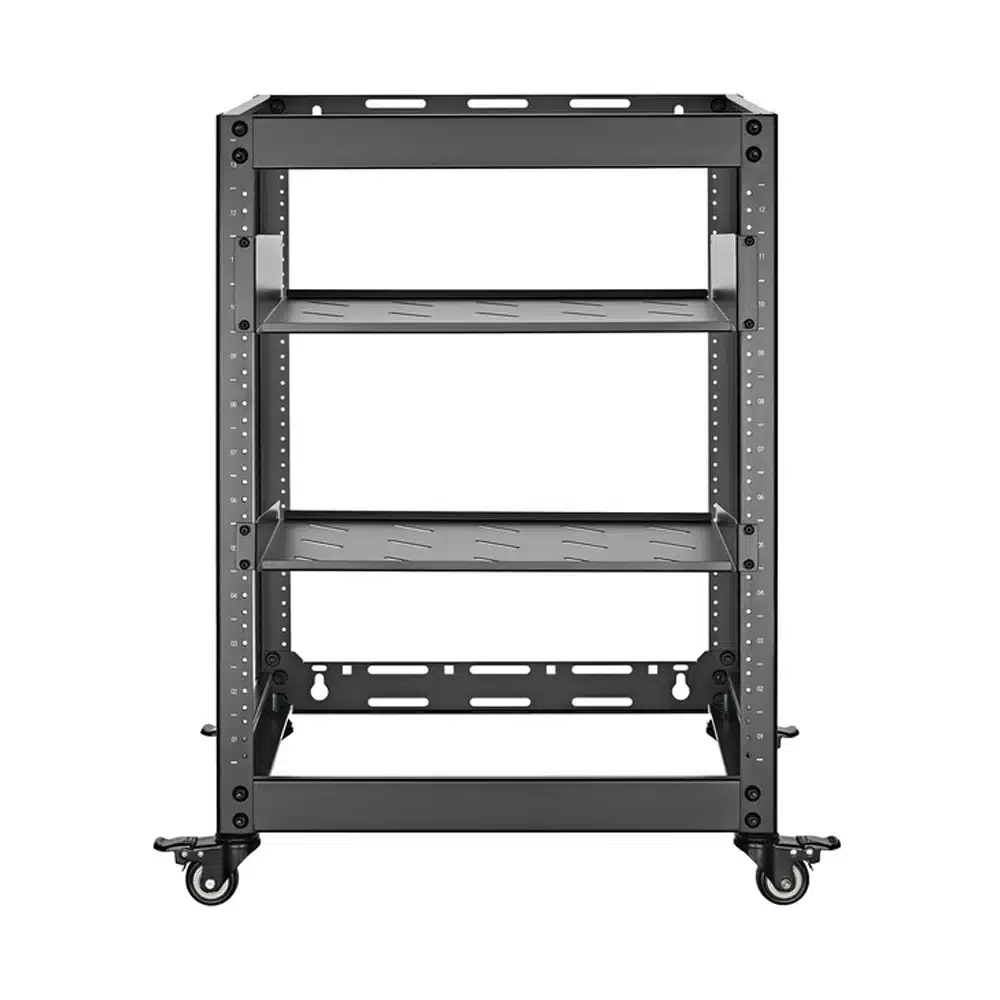

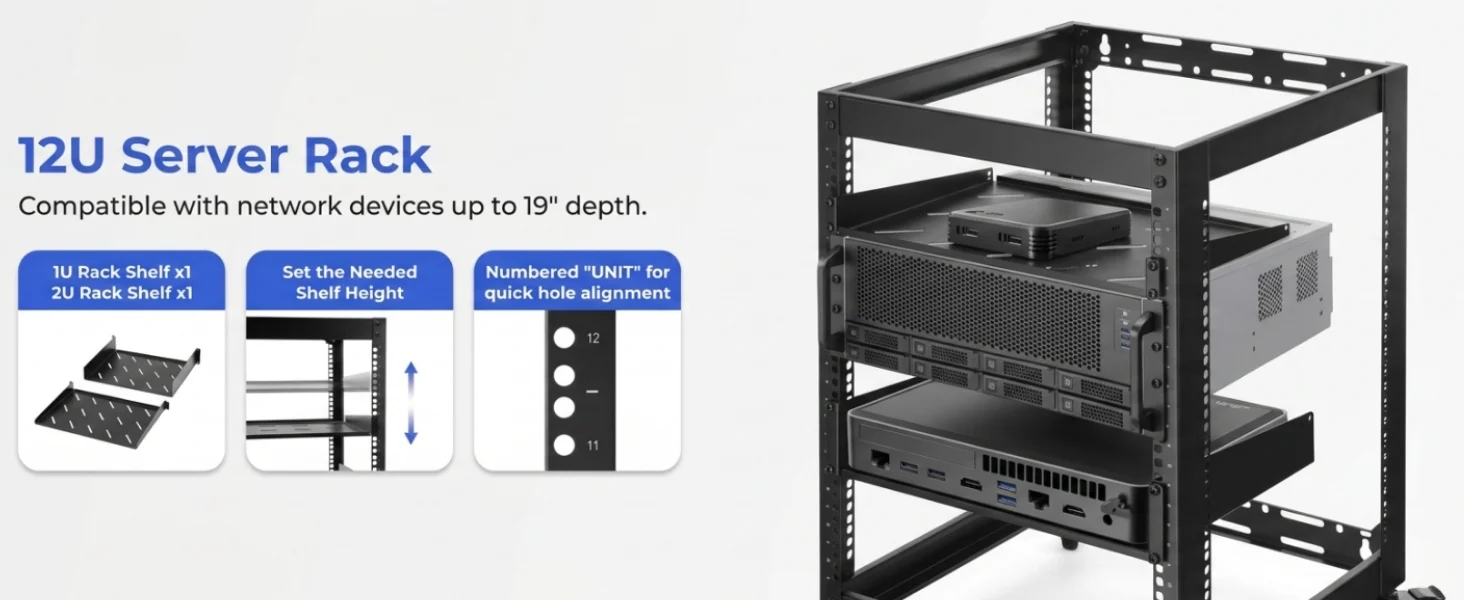

The 12U Open Frame Network Server Rack provides a versatile solution for mounting standard 19-inch networking, CCTV, server and AV equipment. It can be installed as a wall-mounted rack or free-standing rack using the included detachable lockable casters.

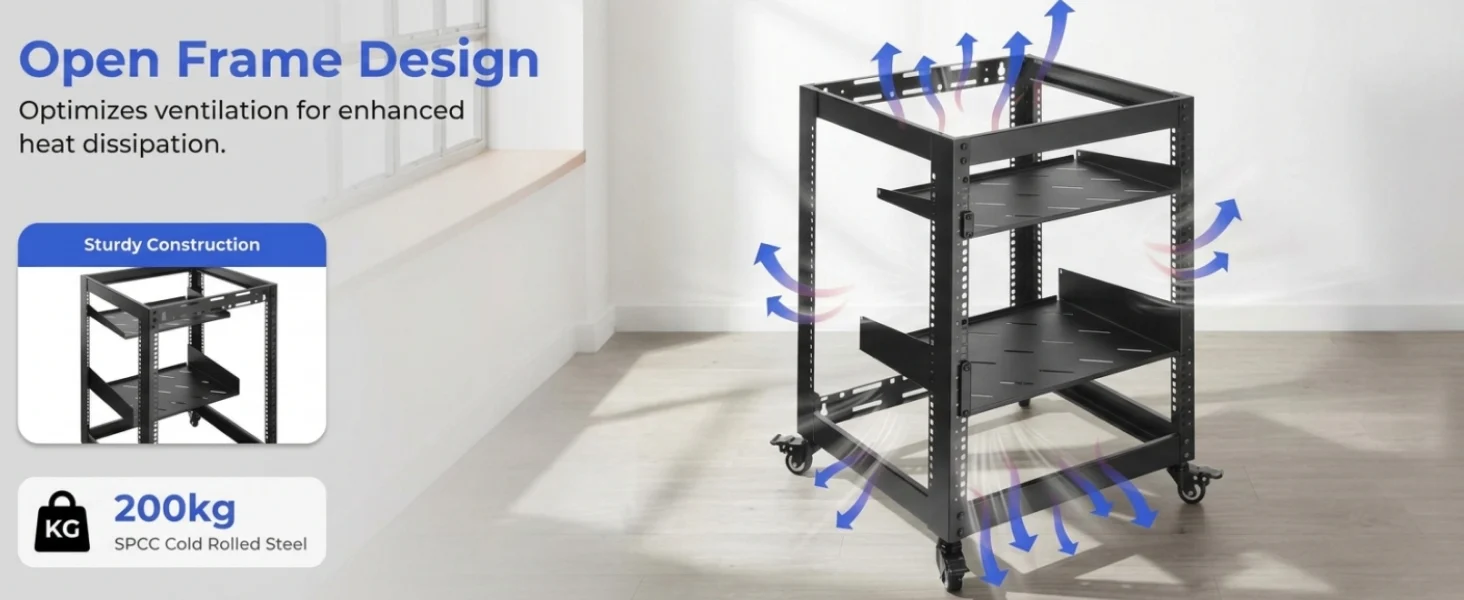

Its open-frame construction provides excellent ventilation and convenient access to equipment and cabling. The rack includes two vented shelves (1U and 2U) and supports up to 440 lbs (200 kg) when free standing or 240 lbs (100 kg) when wall mounted.
$ 239.99
Key Features
- 12U open frame network/server rack
- Standard 19-inch equipment compatibility

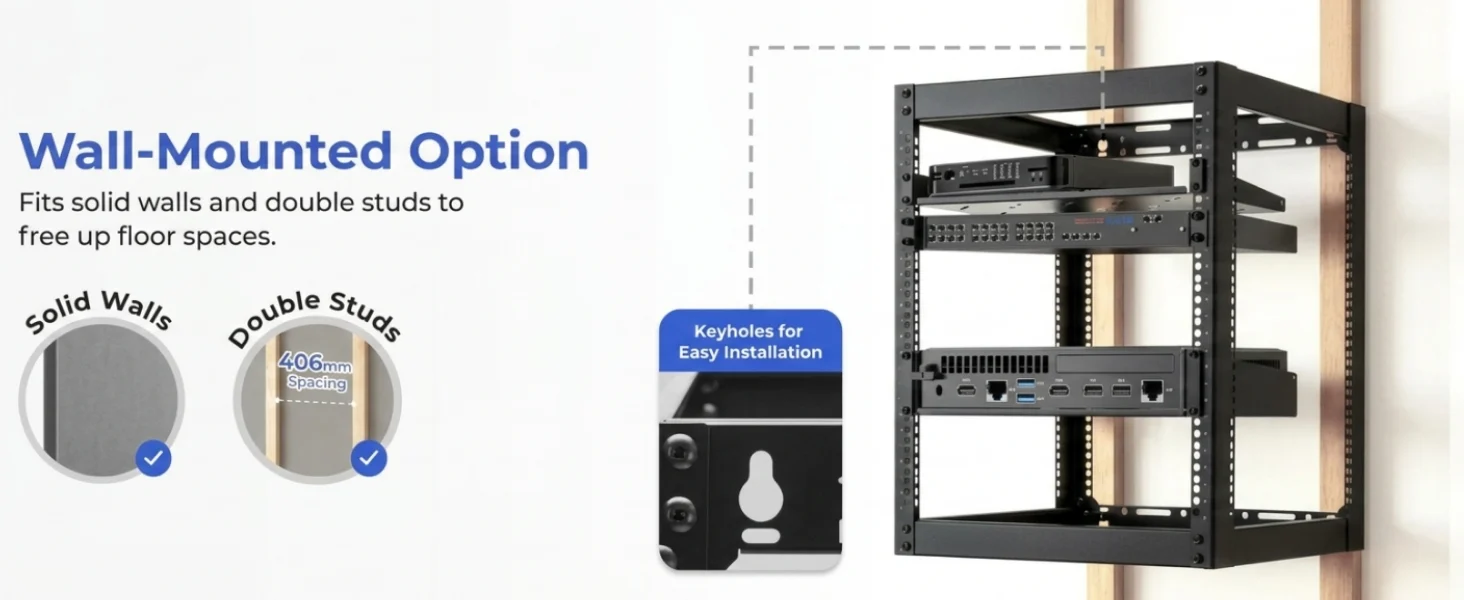

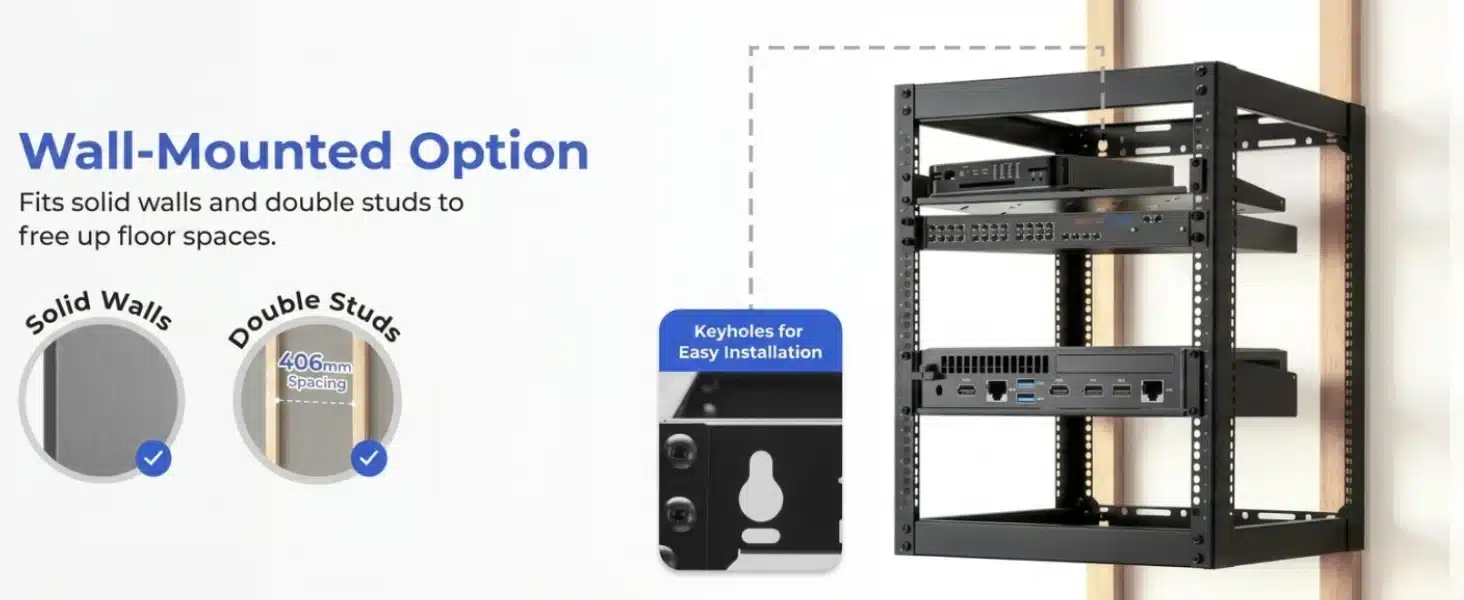

- Wall mount or free-standing installation

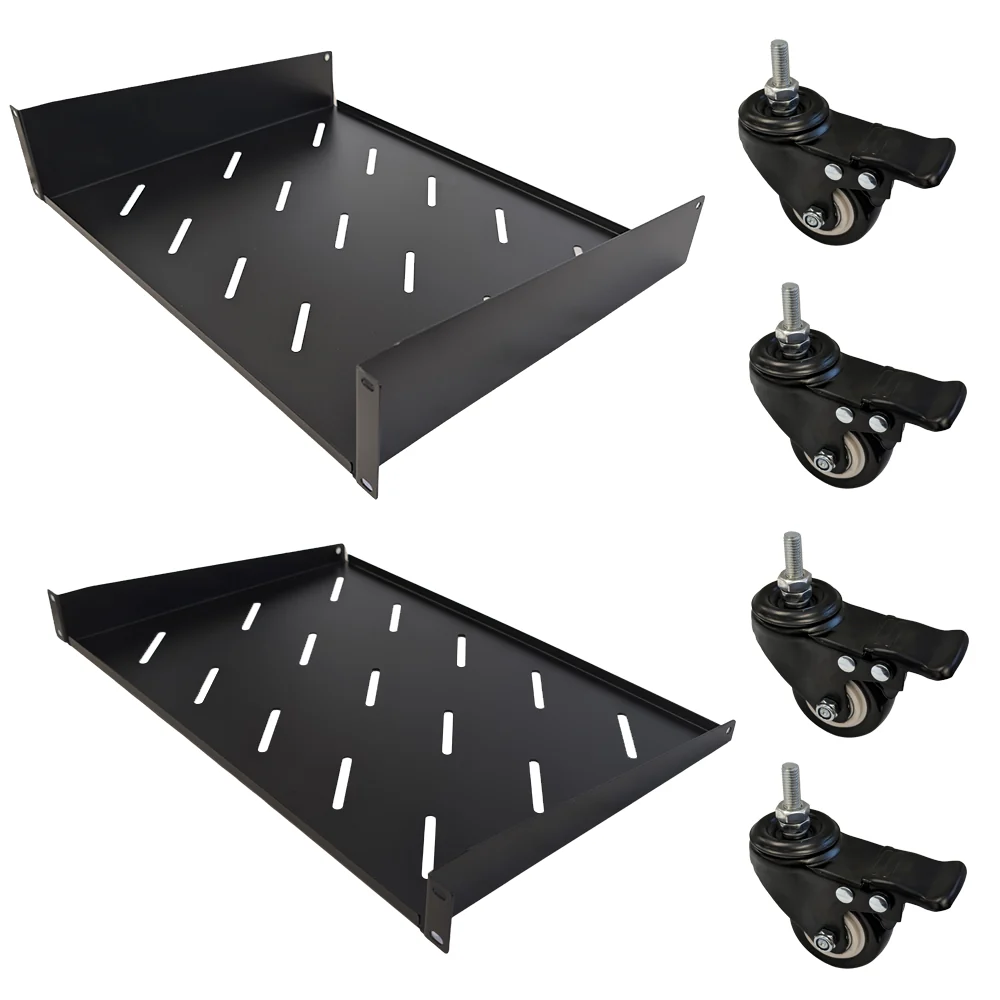

- 2 vented shelves included – 1U + 2U
- 19-inch mounting depth
- Heavy-duty SPCC cold-rolled steel
- Powder-painted black finish
- 440 lb / 200 kg free-standing capacity
- 240 lb / 100 kg wall-mounted capacity
- Each shelf supports up to 44 lb / 20 kg

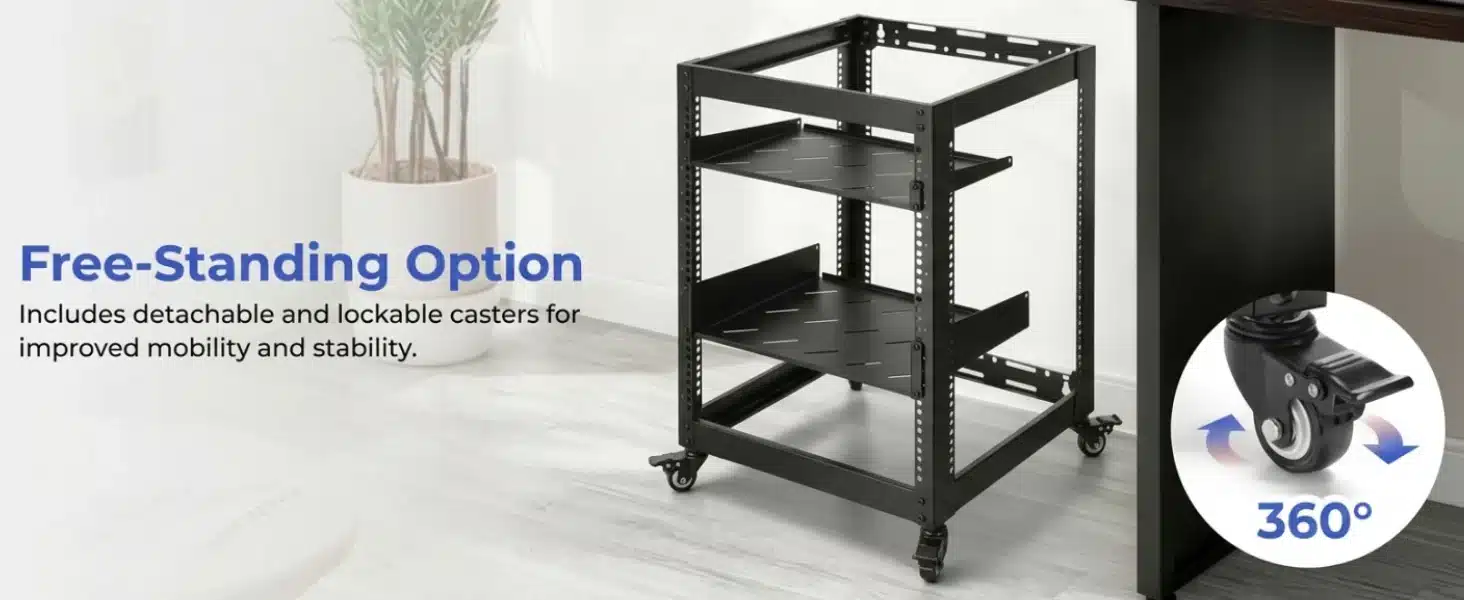

- 4 detachable lockable casters included
- 10-32 threaded mounting rails
- Open design for excellent ventilation
- Easy access for cabling and maintenance

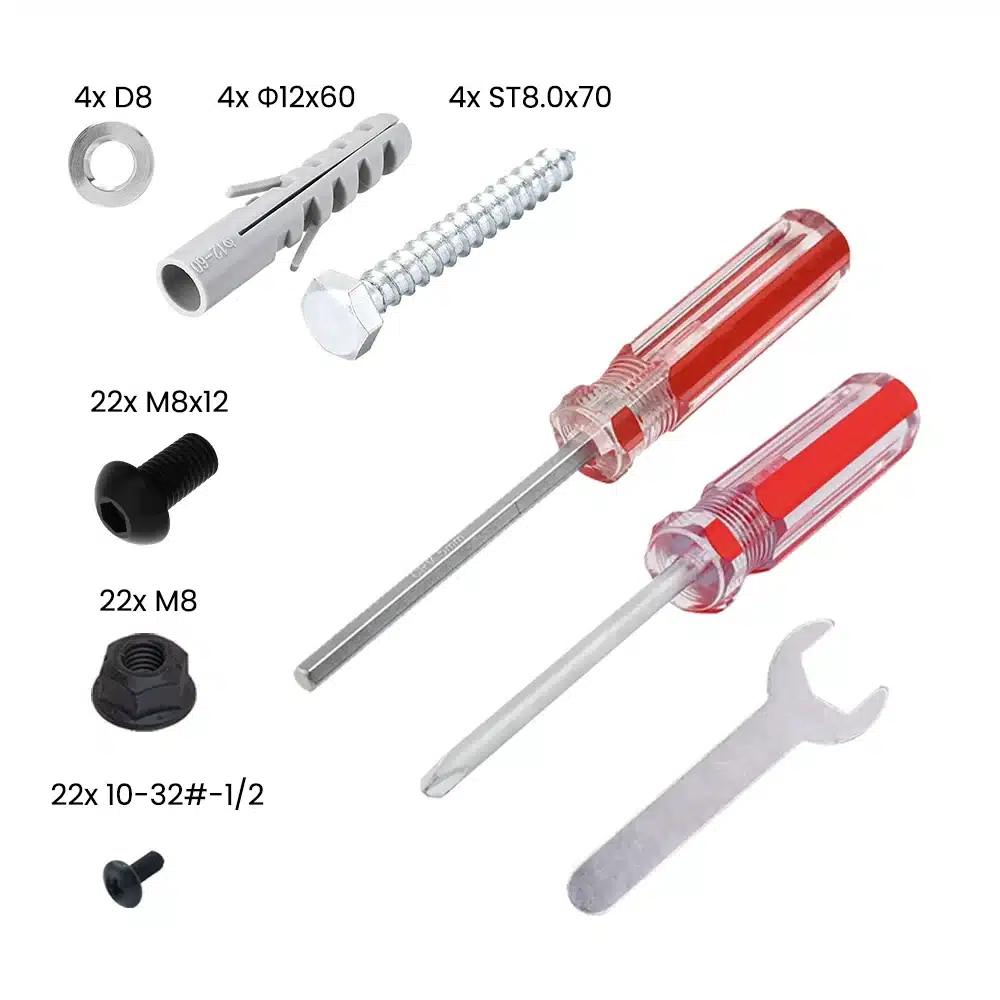

- Wall-mounting hardware included
- RoHS compliant
- REACH compliant

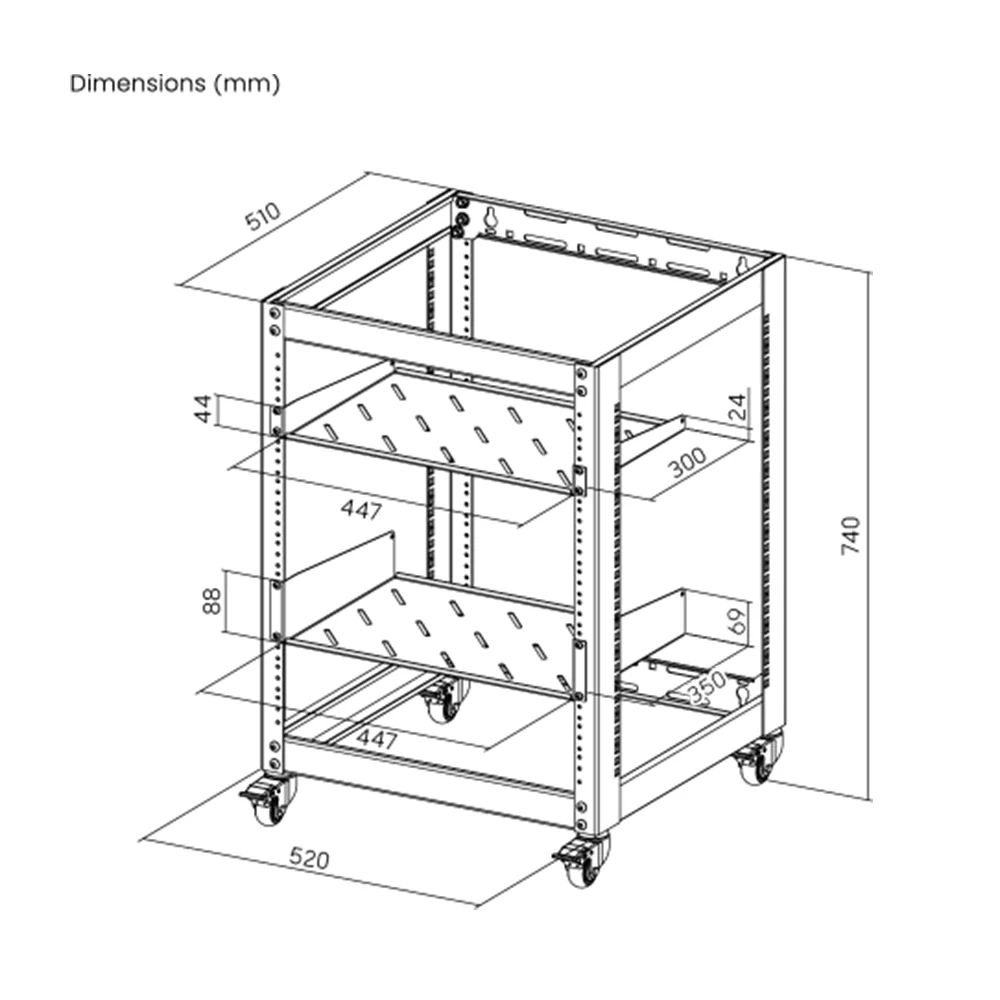

Dimensions
Overall: 20.42″ × 20.04″ × 26.25″
Rack Height: 12U / 21.26″ (53.2 cm)
Mounting Depth: 19″
Product Weight: 27.1 lbs
Ideal For
Excellent for CCTV installations, PoE switches, NVRs, patch panels, network switches, routers, AV equipment and other 19-inch rack-mount equipment.
| Weight | 31 lbs |
|---|
