Tilting Mounts

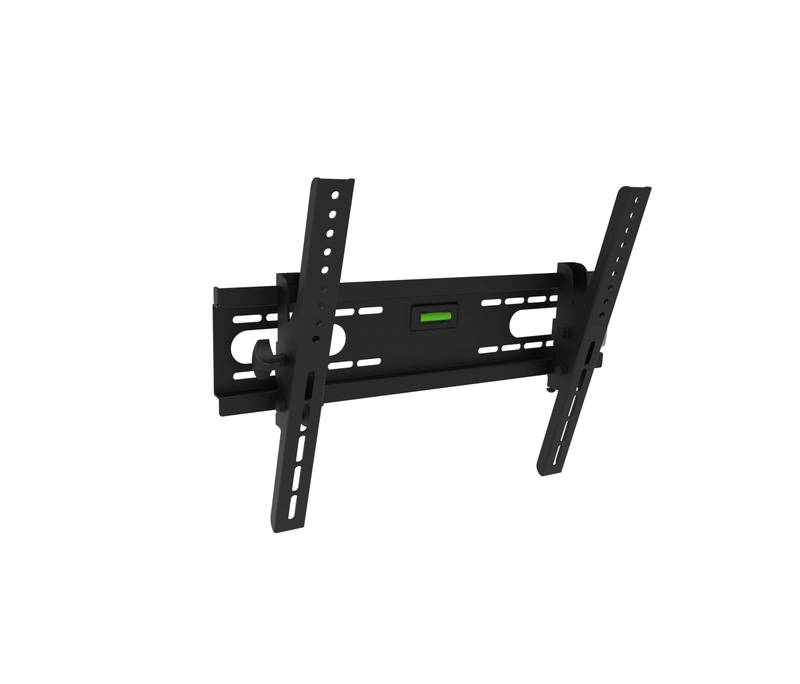

ProTech TL-245 Short Arm Heavy Duty Tilting TV Wall Mount (17–42″)
Specially engineered with shortened bracket arms to prevent unwanted overhang on compact displays, the ProTech TL-245 Short Arm Heavy-Duty Tilting TV Wall Mount supports 17″ to 42″ screens up to 88 lbs (40 kg).
-
Specially Designed Short Arms: 13-inch arms ensure brackets stay hidden behind smaller screens and compact 32″ TVs.
-
Single Stud Installation: Conveniently mounts to a single wood stud or solid wall in tight spaces.
-
±15° Smooth Tilt: Eliminates reflections from lights and windows for glare-free viewing.
-
Lateral Shift Alignment: Slide your display left or right on the wall plate for precise horizontal positioning.
-
Low-Profile 50mm Depth: Keeps screens sitting just 2 inches off the wall for a clean finish.
$ 19.99
Short Arm Tilting Wall Mount Engineered for Compact & Modern 17″ to 42″ Displays
Standard TV mounting arms can often stick out from the top or bottom of smaller televisions. The ProTech TL-245 Short Arm Heavy Duty Tilting TV Wall Mount solves this issue with specially designed 13-inch (330mm) bracket arms. Engineered specifically for 17″ to 42″ flat-panel LCD, LED, and OLED displays—including many compact modern 32-inch models—this heavy-duty steel mount provides maximum holding power for screens up to 40 kg (88 lbs).
Glaring Prevention with Dual-Direction ±15° Tilt
Interfering light from windows and lamps can ruin picture quality. The TL-245 offers a broad -15° to +15° vertical tilt angle. Effortlessly adjust your television up or down to achieve the optimal viewing angle from your desk, couch, or bed while reducing screen glare.
Single Stud Mounting & Lateral Shift Control
Perfect for corners, small rooms, and office cubicles, the compact 13-inch wall plate installs effortlessly into a single wood stud or solid masonry wall. Features built-in lateral shift functionality, allowing you to slide your TV left or right along the wall plate to achieve perfect center alignment without re-drilling.
Universal VESA Compatibility & Slim Profile
Holding your television just 50mm (2 inches) from the wall, the TL-245 provides a clean, space-saving appearance while maintaining adequate rear clearance for ventilation and cable management. Compatible with standard VESA mounting patterns up to 300x300mm.
Product Specifications
- Supported Screen Sizes: 17″ – 42″
- Maximum Weight Capacity: 40 kg / 88 lbs
- Wall Clearance (Profile): 50 mm (2.0″)
- Tilt Motion Range: -15° to +15°
- Bracket Arm Height: 13.00″ (330 mm)
- Wall Plate Dimensions: 13.0″ W x 4.0″ H (330 x 110 mm)
- Supported VESA Standards: 100×100, 200×100, 200×200, 300×200, 300×300 mm
- Installation Type: Single Stud, Solid Concrete / Brick
- Material: Cold-Rolled Steel
- Color Finish: Black Powder Coat
- Item Weight: 4 lbs
- Package Dimensions: 16″ x 5″ x 3″
- Warranty: 1-Year Manufacturer’s Limited Warranty
What’s Included in the Box
- ProTech TL-245 Single Stud Wall Plate
- 2x Shortened TV Adapter Bracket Arms (13″)
- Complete TV & Single-Stud Mounting Hardware Kit
- Assembly & Installation Manual
| Weight | 4 lbs |
|---|---|
| Dimensions | 16 × 5 × 3 in |
| Model Number | TL-245 |
| Brand | Protech |
| Colour | Black |
| Materials | Steel |
| Product Size | 16x5x3 Inches |
| Profile | 50mm |
| TV/Monitor Sizes | 17"-42" |
| Weight Capacity | 40kg/88lbs |
| VESA Standards | 100 x 100mm, 200 x 100mm, 200 x 200mm, 300 x 200mm, 300 x 300mm |
| Motion Type | Tilt |
| Tilt Angle | -15° to +15° |
| 16" Stud Spacing | NO |
| 24" Stud Spacing | No |
| Height of TV Bracket Arms | 330 MM / 13.00 inches |
| Wall Plate Size(width x height) | 330 x 110 MM /13 x 4.0 inches |
| Warranty | 1 Year Manufacturer's Limited Warranty |
