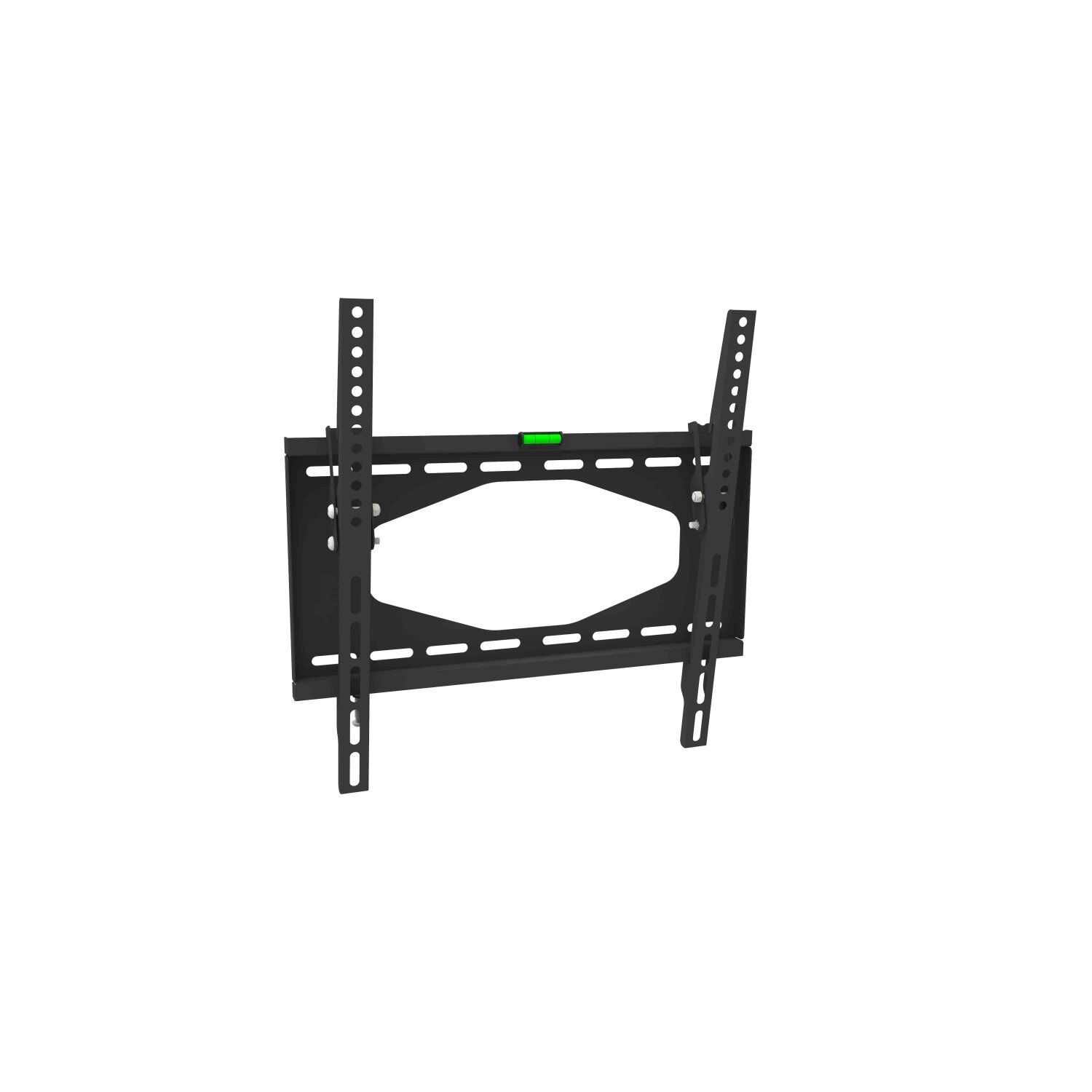

ProTech TL-227 Slim Tilting TV Wall Mount for 32–55 Inch Screens
Eliminate reflections and optimize screen visibility with the ProTech TL-227 Slim Tilting TV Wall Mount, engineered for 32″ to 55″ flat-panel displays weighing up to 110 lbs (50 kg).
-
16″ Stud Compatibility: 17.3″ wide steel wall plate is designed specifically for standard 16″ or smaller wood stud framing.
-
15° Glare Reduction Tilt: Adjustable -15° to +15° vertical tilt lets you dial in optimal viewing angles from any seating position.
-
Lateral Shift Alignment: Slide your display left or right along the wall plate for precise horizontal centering.
-
Low-Profile Clearance: Keeps your display sitting just 2.3″ (60mm) off the wall for a clean aesthetic.
-
Universal VESA Support: Compatible with standard mounting patterns from 100x100mm up to 400x400mm.
$ 19.99
Compact & Heavy-Duty Tilting Wall Mount for 32″ to 55″ Flat Panel TVs
Upgrade your home entertainment or bedroom setup with the ProTech TL-227 Slim Tilting TV Wall Mount. Specially engineered to support medium flat-panel LCD, LED, and OLED displays from 32″ to 55″, this heavy-duty steel mount easily supports up to 50 kg (110 lbs) while delivering vertical tilt flexibility for maximum comfort.
Glare Control with Dual-Direction ±15° Tilt
Overhead lights and window sunlight can easily wash out your screen. The TL-227 features a smooth tilt mechanism that moves from -15° to +15° vertically. Effortlessly adjust your display downward to eliminate annoying reflections or customize viewing angles when mounted higher on the wall.
Engineered for Standard 16″ Wood Studs
Designed for compact structural spaces, the 17.3-inch (440mm) steel wall plate fits standard 16-inch or smaller stud spacing, as well as solid concrete and brick walls. Integrated lateral shift capability allows you to slide your TV horizontally across the plate to achieve perfect center alignment.
Low-Profile Depth & Universal VESA Fit
Holding your television just 60mm (2.3 inches) from the wall, the TL-227 provides a modern, low-profile finish while leaving sufficient clearance for rear A/V inputs, power cables, and ventilation. Fits universal VESA mounting standards ranging from 100x100mm up to 400x400mm.
Product Specifications
- Supported Screen Sizes: 32″ – 55″
- Maximum Weight Capacity: 50 kg / 110 lbs
- Wall Clearance (Profile): 60 mm (2.3″)
- Tilt Motion Range: -15° to +15°
- Wall Plate Dimensions: 17.3″ W x 5.9″ H (440 x 152 mm)
- TV Bracket Arm Height: 16.9″ (430 mm)
- Supported VESA Standards: 100×100, 200×100, 200×200, 300×200, 300×300, 400×200, 400×400 mm
- Stud Spacing Support: 16″ or Less Wood Studs, Solid Concrete / Brick
- Material: Cold-Rolled Steel
- Color Finish: Powder-Coated Black
- Product Weight: 6 lbs
- Package Dimensions: 19″ x 7″ x 2″
- Warranty: 1-Year Manufacturer’s Limited Warranty
What’s Included in the Box
- ProTech TL-227 Steel Wall Mounting Plate
- 2x 16.9″ Tilting TV Bracket Adapter Arms
- Universal TV & Wall Installation Hardware Kit
- Assembly & Operating Instructions
| Weight | 6 lbs |
|---|---|
| Dimensions | 19 × 7 × 2 in |
| Model Number | TL-227 |
| Brand | Protech |
| Colour | Black |
| Materials | Steel |
| Product Size | 18.5 x 7 x 2 inches |
| Profile | 60mm/2.3" |
| TV/Monitor Sizes | 32 – 55" |
| Weight Capacity | 50 KG / 110 lbs |
| VESA Standards | 100 x 100mm, 200 x 100mm, 200 x 200mm, 300 x 200mm, 300 x 300mm, 400 x 200mm, 400 x 400mm |
| Motion Type | Tilt |
| Tilt Angle | -15° to +15° |
| 16" Stud Spacing | Yes |
| 24" Stud Spacing | No |
| Height of TV Bracket Arms | 430 MM / 16.9 inches |
| Wall Plate Size(width x height) | 440 x 152 MM /17.3 x 5.9 inches |
| Warranty | 1 Year Manufacturer's Limited Warranty |
