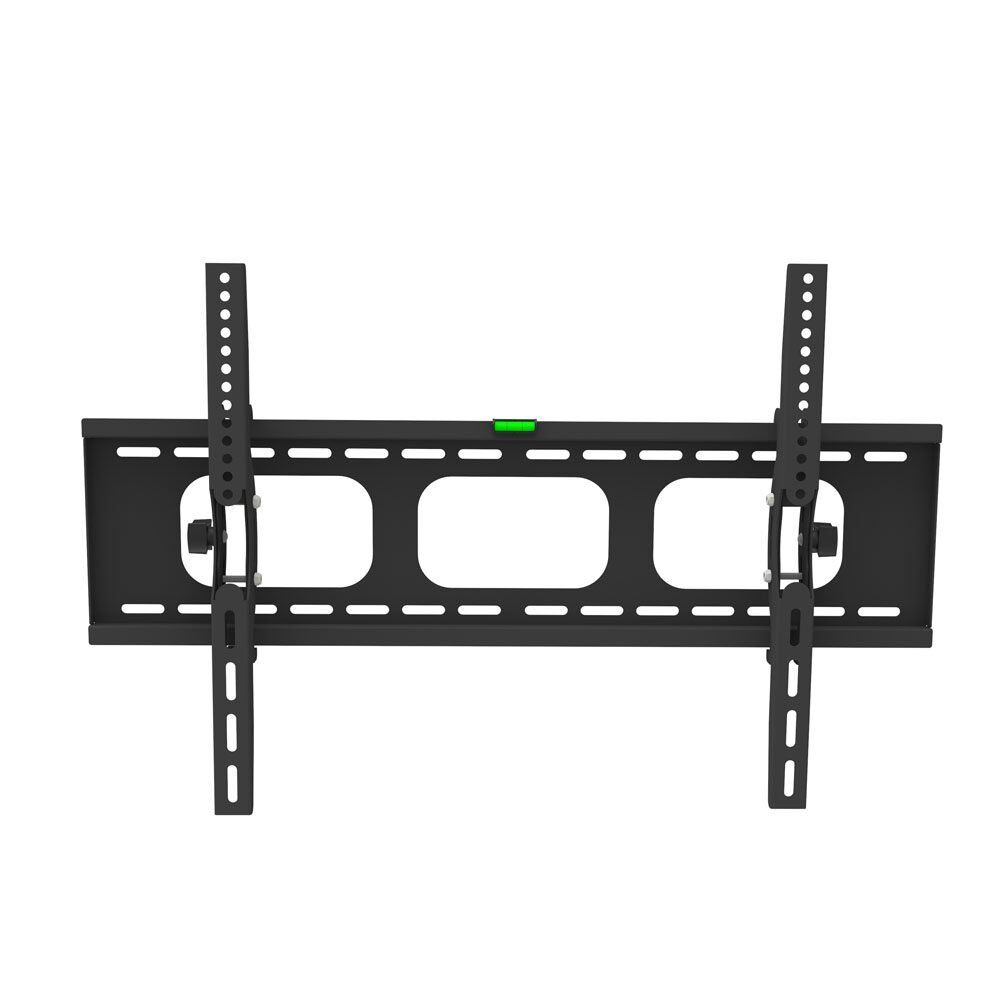

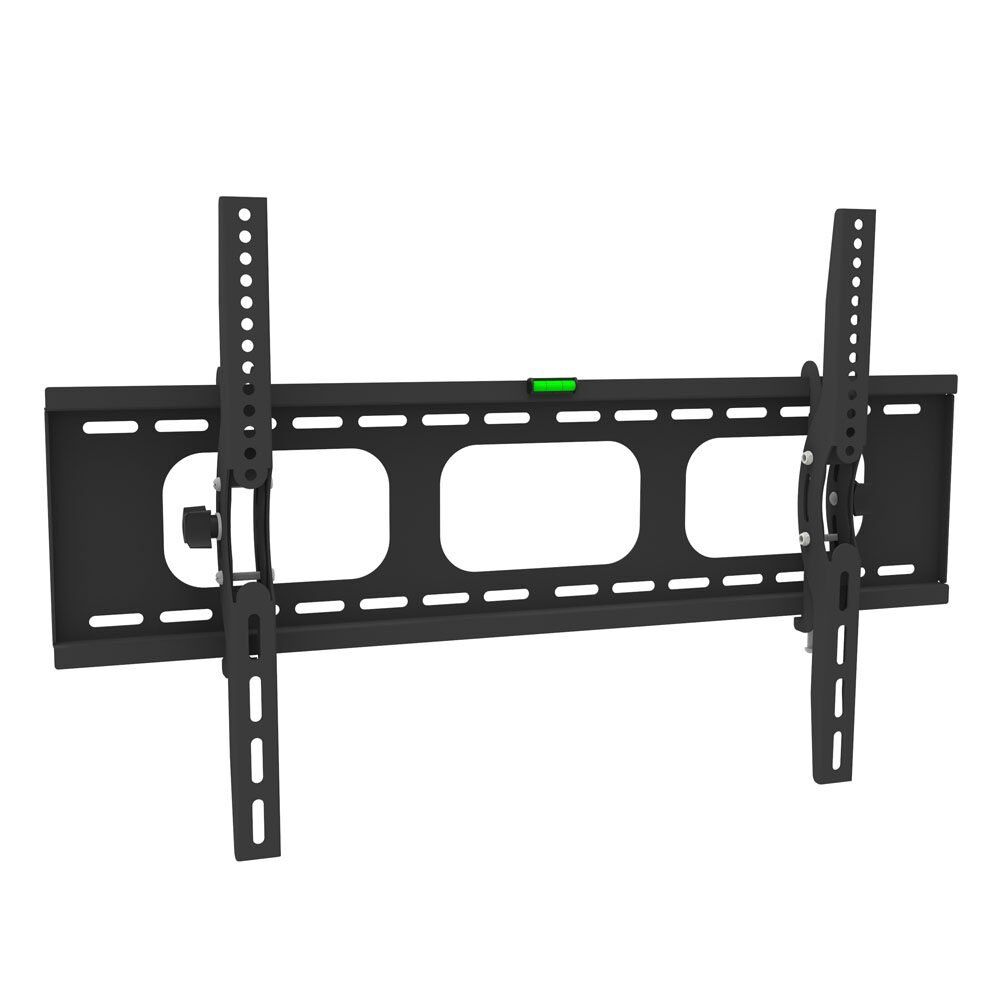

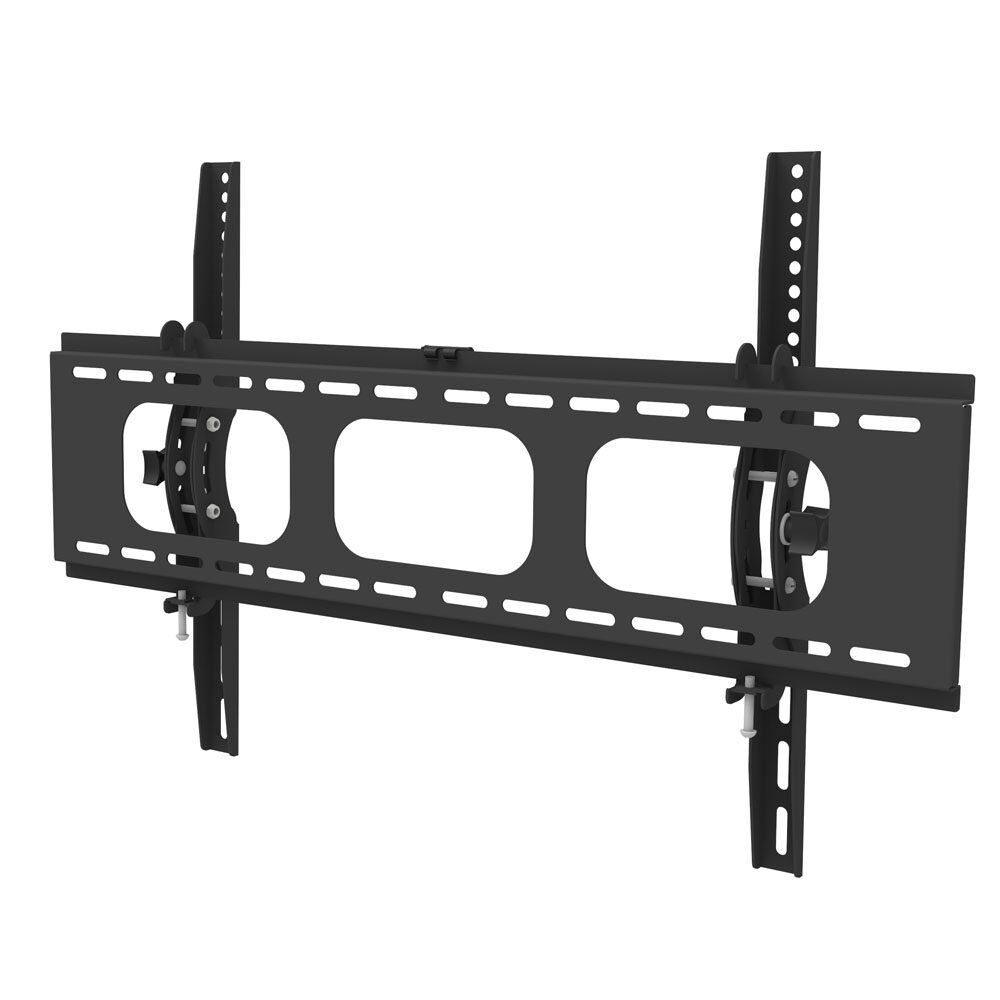

ProTech TL-225 is design to fit most 42″-82″ LED, LCD Flat Panel TVs up to 60kgs/132lbs. A tilting mount is recommended when reflections from windows or lighting interfere with TV viewing or when multiple viewing angles are desired. Adjustable TV Wall Mount structure allows freely tilting for 15°up and 15°down for viewing ease and enjoyment. Lateral shift allows the TV to move left and right on the wall plate so it’s placed exactly where you want it. Compatible with VESA hole up to 600×400. Protech TL-225 is specially design to fit on 16″ and 24″ Studs Spacing for Easier Installation.
| Weight | 8 lbs |
|---|---|
| Dimensions | 31 × 9 × 2 in |
| Model Number | TL-225 |
| Brand | Protech |
| Colour | Black |
| Materials | Steel |
| Product Size | 31×8.5×2 inches |
| Profile | 65mm/2.5" |
| TV/Monitor Sizes | 37"-82" |
| Weight Capacity | 60 KG / 132 lbs |
| VESA Standards | 100 x 100mm, 200 x 100mm, 200 x 200mm, 300 x 200mm, 300 x 300mm, 400 x 200mm, 400 x 400mm, 600 x 200mm, 600 x 300mm, 600 x 400mm |
| Motion Type | Tilt |
| Tilt Angle | -15° to +15° |
| 16" Stud Spacing | Yes |
| 24" Stud Spacing | Yes |

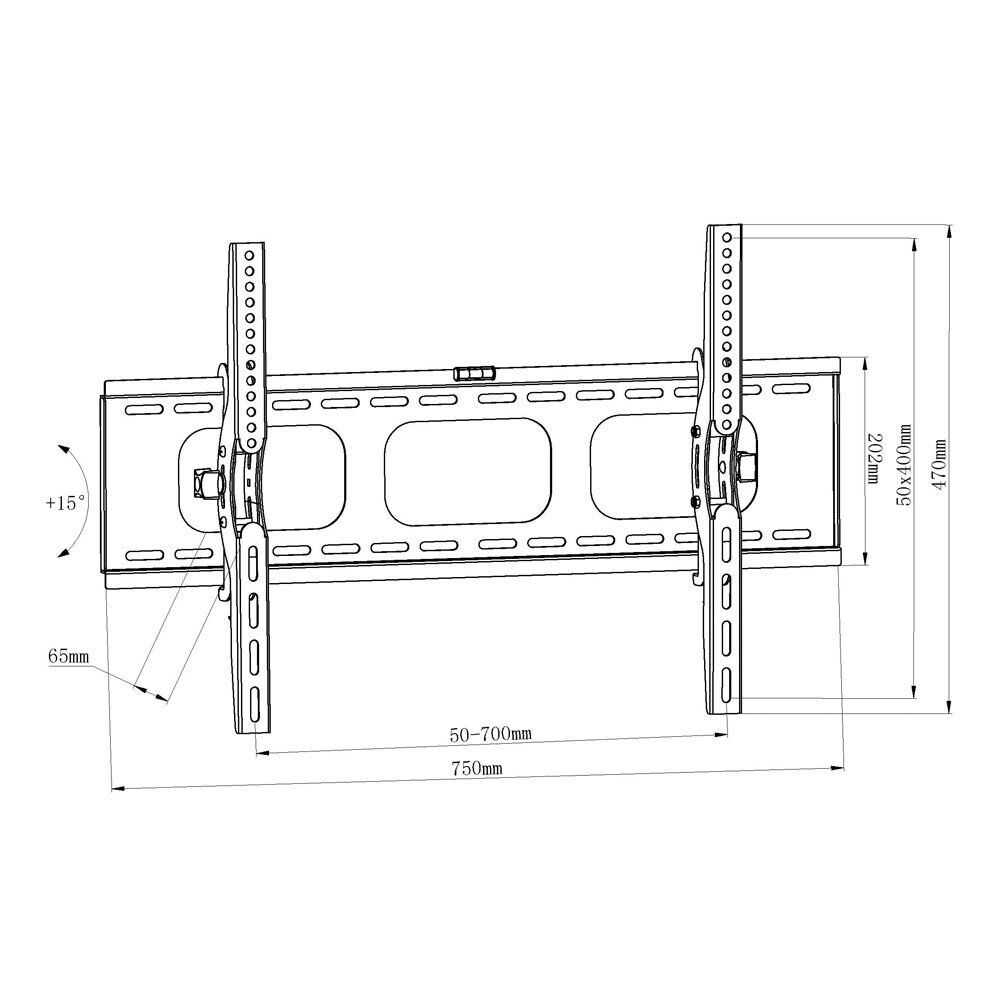

| Height of TV Bracket Arms | 470 MM / 18.5 inches |
| Wall Plate Size(width x height) | 750 x 202 MM /29.5 x 7.9 inches |
| Warranty | 1 Year Manufacturer's Limited Warranty |
