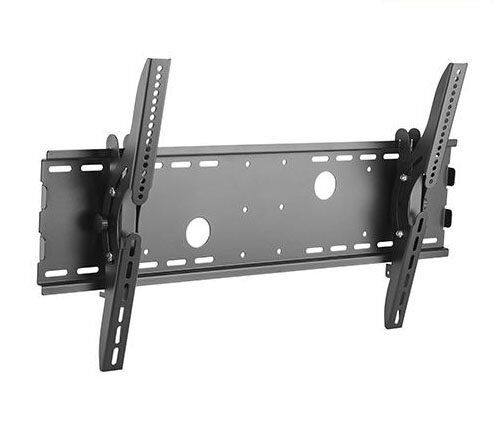

PROTECH TL-215L Heavy Duty Tilting Wall Mount For 42-90 Inch TVs

Easy to use and install, Our popular model TL-215L is designed to fit any 42”-90″ curved & flat panel TVs up to 75kg/165lbs. This unit mounts in tilting position and tilts up to a 15° to position the screen for an optimal viewing experience. Compatible with VESA hole up to 800×400.

Main

• TV Sizes: 42” to 90″
• Weight Capacity: 75 kg / 165 lb
• VESA Standard(s): 200x200mm / 300x200mm / 300x300mm / 400x200mm / 400x400mm / 600x200mm / 600x300mm / 600x400mm / 600x600mm / 800x200mm / 800x400mm / 800x600mm

Features

• Motion Type: Tilting
• Tilt Angle: ± 15° Up-Down
• Distance from Wall to TV: 83 cm / 3.2 in
• Mounting Wall Studs Required: 2 or 3
• 16″ Stud Spacing: Yes
• 24″ Stud Spacing: Yes

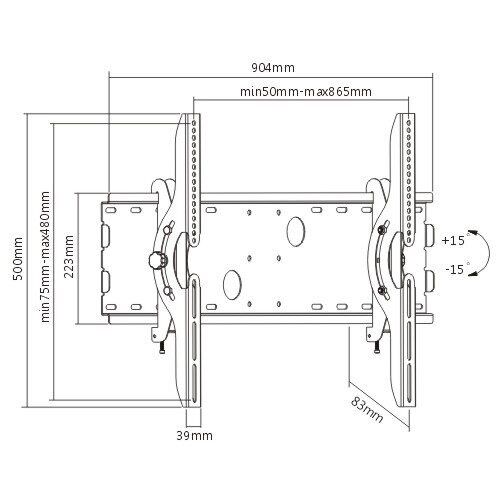

• Wall Plate (Length x Width): 904 x 223 mm / 35.6 x 8.7 in
• Height of TV Bracket Rails: 500mm / 19.6 in
• Physical Color: Black
• Materials: Solid Steel
• Shipping: Dimensions (Length x Width x Height) 118 x 24 x 9 cm / 46.5 x 9.4 x 3.5 in
• Weight: 8 kg / 18 lb.

Includes

• Wall Mounting Hardware: Yes
• Assembly Instructions: Yes
• Warranty:1 Year manufacturer’s warranty Covers materials and workmanship against manufacturing defects during the course of normal usage
