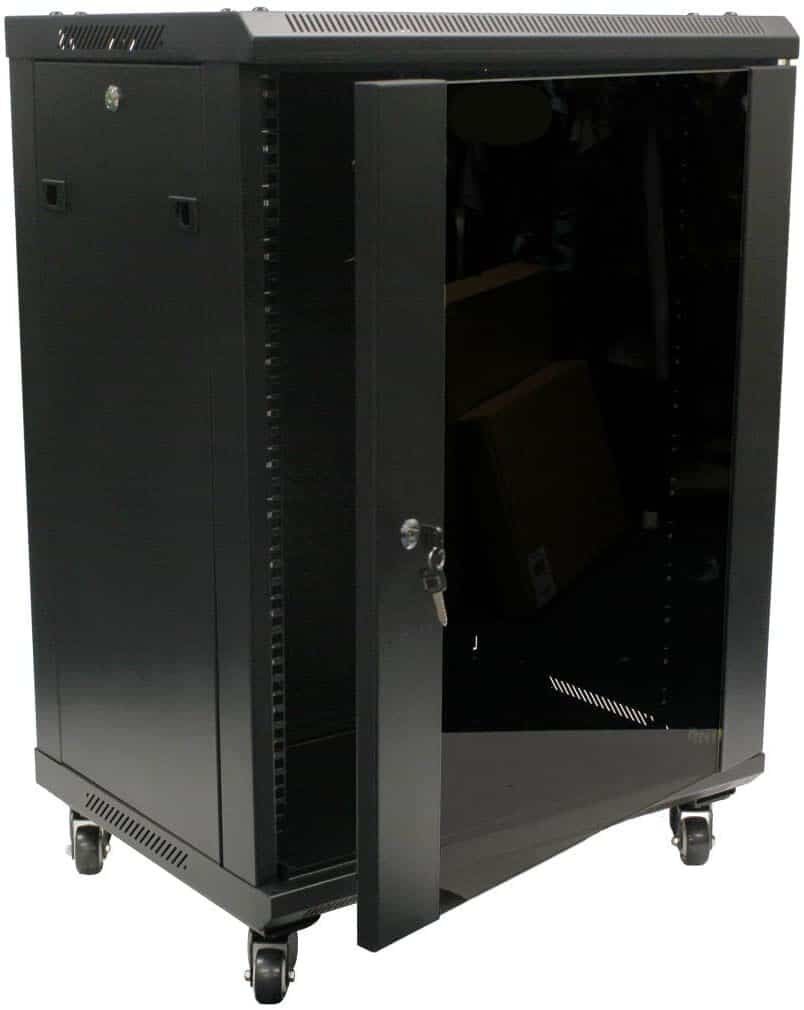

Protech 15U Network Server Cabinet with Wheels – 600mm / 24-Inch Deep, Wall Mount & Floor Standing

Organize and protect your networking, CCTV, IT and audio/video equipment with the Protech 15U Network Server Cabinet with Wheels – 600mm (24-Inch Deep).

Designed for home offices, small businesses and commercial networking installations, this enclosed cabinet offers flexible installation options. Use it as a floor-standing network cabinet with the included wheels, or remove the wheels for a suitable wall-mounted installation.

Featuring 15U rack capacity, standard 19-inch equipment mounting width, a lockable tempered-glass front door, removable lockable side panels, heavy-duty mounting rails and a manufacturer-listed 70kg (154 lb) load capacity, the cabinet provides organized storage for compatible networking and security equipment.

Its 24-inch external depth, top and bottom cable entry slots, removable rear panel and two top fan mounting positions provide additional installation flexibility.

Key Features

• 15U Rack Capacity: Provides 15 rack units of mounting space for compatible networking and AV equipment.
• 600mm / 24-Inch Cabinet Depth: Suitable for compatible rack equipment requiring additional depth.
• Standard 19-Inch Rack Width: Designed for compatible 19-inch rack-mounted devices.
• EIA-310-D Compliant: Listed as compliant with the standard rack mounting specification.
• Dual Installation Options: Floor standing with wheels or wall mounted without wheels.
• Wheels Included: Supports floor-standing installation.
• Tempered-Glass Front Door: Allows visibility of installed equipment.
• Round Front Door Lock: Helps restrict unauthorized access.
• Reversible Front Door: Provides flexibility for different installation layouts.
• Removable Lockable Side Panels: Convenient access for installation and maintenance.
• Top and Bottom Cable Slots: Supports organized cable routing.
• Removable Rear Panel: Helps simplify cable installation behind the cabinet.
• Two Top Fan Mounting Slots: Supports compatible optional cooling fans.
• Heavy-Duty Mounting Rails: Provides equipment mounting support.
• 70kg / 154 lb Load Capacity: Manufacturer-listed maximum load rating.
• Three Locks with Keys: Included as specified.
• 20 Sets of Cage Nuts and Bolts: Included for compatible rack equipment.
• One-Year Manufacturer Warranty: Subject to manufacturer warranty terms.

Important: Cooling fans and rack shelves are not included. They are sold separately.

Flexible Floor Standing or Wall Mount Installation

The Protech 15U cabinet provides two installation options to accommodate different networking environments.

Floor Standing with Wheels

The cabinet comes with wheels for floor-standing use.

This configuration is suitable for offices, equipment rooms and networking areas where a floor-mounted cabinet is preferred.

The wheels allow the cabinet to be repositioned when appropriate, subject to safe handling and equipment loading.

Wall Mounted without Wheels

The cabinet can also be wall mounted after removing the wheels.

Wall installation requires an appropriate load-bearing structure, suitable mounting hardware and verification of the total loaded cabinet weight.

15U Capacity for Network and Security Equipment

The Protech 15U cabinet provides organized mounting space for compatible 19-inch equipment, including:

• Ethernet network switches
• Network patch panels
• Compatible routers and firewalls
• CCTV DVR and NVR systems
• Rack-mounted audio/video equipment
• Compatible power distribution units
• Cable management accessories
• Other appropriately sized rack-mounted devices

Verify equipment depth, mounting requirements and ventilation clearance before installation.

24-Inch Deep Network Rack Cabinet

The cabinet has a listed external depth of 24 inches (600mm nominal) and an internal depth of 21.5 inches.

This configuration provides additional depth for compatible networking, security and audio/video equipment.

Before purchasing, verify equipment dimensions and allow adequate space for mounting rails, rear connectors and cables.

The listed internal depth should not automatically be treated as the maximum usable equipment depth.

Lockable Tempered-Glass Front Door

The cabinet features a tempered-glass front door with a round locking mechanism.

The glass door allows visibility of installed equipment while helping control physical access.

Its reversible design offers flexibility when planning the cabinet’s position and door-opening direction.

Removable and Lockable Side Panels

The cabinet includes removable side panels with locks.

These panels provide additional access during installation, equipment servicing and cable management.

Once secured, they help maintain an enclosed equipment installation.

Convenient Cable Management

Top and bottom cable entry slots provide routing options for Ethernet cables, power connections and other equipment wiring.

The removable rear panel helps simplify cable routing behind the cabinet during wall installation.

This design supports a cleaner and more organized networking setup.

Optional Cooling Fan Installation

The cabinet features two top fan mounting slots for compatible cooling fans.

Optional fans can be installed when additional airflow is required by the equipment.

Cooling fans are not included.

Verify fan dimensions and compatibility before purchasing cooling accessories.

Heavy-Duty Rack Mounting Rails

The cabinet includes heavy-duty mounting rails designed for compatible 19-inch rack equipment.

The manufacturer-listed maximum load capacity is 70kg (154 lbs).

Safe loading depends on proper installation, equipment weight distribution, suitable structural support and the selected mounting configuration.

Technical Specifications

Specification	Details
Brand	Protech
Product Type	Enclosed Network / AV Rack Cabinet
Rack Capacity	15U
Nominal Cabinet Depth	600mm
External Cabinet Depth	24 Inches
Rack Mounting Width	19 Inches
Rack Standard	EIA-310-D
Installation Options	Floor Standing / Wall Mount
Wheels	Included
Wall Mount Configuration	Without Wheels
Front Door	Tempered Glass
Front Door Lock	Round Lock
Reversible Front Door	Yes
Side Panels	Removable and Lockable
Rear Panel	Removable
Cable Entry	Top and Bottom Slots
Top Fan Mounting Positions	2
Cooling Fans Included	No
Rack Shelf Included	No
Mounting Rails	Heavy-Duty
Locks and Keys	3 Locks with Keys
Cage Nuts and Bolts	20 Sets Included
Maximum Listed Load	70kg / 154 lbs
Manufacturer Warranty	1 Year
Colour	Not Specified
Cabinet Material	Not Specified

Cabinet Dimensions

Measurement	Dimensions
External Width	23.5 Inches
External Depth	24 Inches
External Height with Wheels	33 Inches
External Height without Wheels	30.5 Inches
Listed Internal Width	19 Inches
Listed Internal Depth	21.5 Inches
Listed Internal Height	28.5 Inches

External Dimensions with Wheels: 23.5 W × 24 D × 33 H inches

External Dimensions without Wheels: 23.5 W × 24 D × 30.5 H inches

Listed Internal Dimensions: 19 W × 21.5 D × 28.5 H inches

The actual usable equipment depth may be smaller than the listed internal depth because of mounting rails, cables and connectors.

Package Includes

• 1 × Protech 15U 600mm Network Server Cabinet
• Wheels for Floor-Standing Installation
• Tempered-Glass Front Door
• Removable Lockable Side Panels
• Removable Rear Panel
• Heavy-Duty Mounting Rails
• 3 × Locks with Keys
• 20 × Sets of Cage Nuts and Bolts

Not Included

• Cooling Fans
• Rack Shelves

Wall mounting anchors and fasteners have not been confirmed as included.

Ideal Applications

• Home networking installations
• Small business network closets
• CCTV DVR and NVR installations
• Ethernet switches and patch panels
• Commercial IT equipment rooms
• Telecommunications equipment
• Audio/video equipment installations
• Structured cabling projects
• Floor-standing network installations
• Suitable wall-mounted networking installations

Installation and Compatibility Notes

• Use the included wheels for floor-standing installation.
• Remove the wheels before wall mounting.
• Ensure the wall structure can support the cabinet and installed equipment.
• Do not exceed the manufacturer-listed 70kg (154 lb) load capacity.
• Verify equipment depth and mounting compatibility.
• Maintain appropriate cable and ventilation clearance.
• Purchase compatible cooling fans and shelves separately if required.
• Confirm door-opening clearance before installation.
