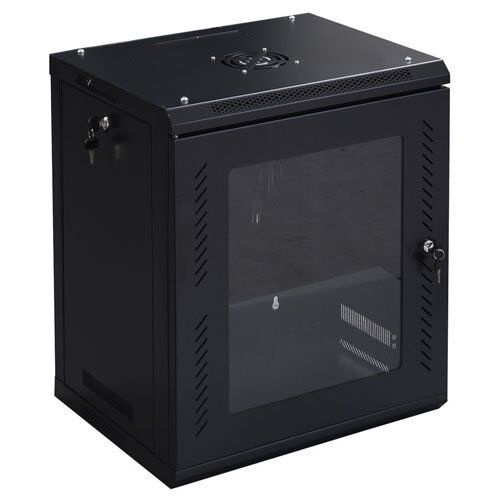

Protech 12U Wall Mount Network Server Cabinet – 600mm / 24-Inch Deep, Lockable Glass Door

Organize and protect your networking, CCTV and audio/video equipment with the Protech 12U Wall Mount Network Server Cabinet – 600mm (24-Inch Deep).

Designed for home networks, small offices and commercial installations, this enclosed wall-mount rack cabinet provides a practical solution for installing compatible 19-inch rack-mounted equipment, including network switches, patch panels, DVRs, NVRs and audio/video accessories.

Featuring 12U rack capacity, a tempered-glass front door, removable lockable side panels, heavy-duty mounting rails and a manufacturer-listed 70kg (154 lb) load capacity, the cabinet combines equipment organization with controlled physical access.

Top and bottom cable entry slots, a removable rear panel and two top fan mounting positions provide additional installation flexibility.

Key Features

• 12U Rack Capacity: Provides 12 rack units of mounting space for compatible networking and AV equipment.
• 600mm / 24-Inch Cabinet Depth: Suitable for compatible equipment requiring a deeper wall-mount enclosure.
• Standard 19-Inch Rack Width: Designed for 19-inch rack-mounted equipment.
• EIA-310-D Compliant: Listed as compliant with the standard rack mounting specification.
• Tempered-Glass Front Door: Allows equipment visibility while keeping the cabinet enclosed.
• Reversible Front Door: Offers installation flexibility for different room layouts.
• Lockable Front Door: Round lock helps control access to installed equipment.
• Removable Lockable Side Panels: Provides convenient access for equipment installation and maintenance.
• Three Locks with Keys: Included as specified.
• Top and Bottom Cable Slots: Helps route network and power cables.
• Removable Rear Panel: Supports cable routing and installation access behind the cabinet.
• Two Top Fan Mounting Slots: Supports compatible optional cooling fans.
• Heavy-Duty Mounting Rails: Provides equipment mounting support.
• 70kg / 154 lb Load Capacity: Manufacturer-listed maximum load rating.
• 20 Sets of Cage Nuts and Bolts: Included for compatible equipment installation.
• One-Year Manufacturer Warranty: Subject to manufacturer warranty terms.

Important: Cooling fans and rack shelves are not included. They are available separately as optional accessories.

12U Rack Capacity for Network and Security Equipment

The Protech 12U wall mount cabinet provides organized space for compatible networking, security and audio/video equipment.

Suitable applications include:

• Ethernet network switches
• Network patch panels
• Compatible routers and firewalls
• CCTV DVR and NVR systems
• Rack-mounted audio/video equipment
• Network cable management accessories
• Compatible rack power distribution units
• Other appropriately sized 19-inch rack accessories

Its enclosed construction helps keep equipment organized and limits casual physical access.

24-Inch Deep Wall Mount Cabinet

The cabinet features an external depth of 24 inches (600mm nominal) and a listed internal depth of 21.5 inches.

This provides more depth than compact wall-mount cabinets, making it useful for compatible networking and security equipment that requires additional installation space.

Before purchasing, verify equipment depth, rail mounting requirements, rear connectors and cable clearance.

Tempered-Glass Front Door with Lock

The tempered-glass front door provides a clear view of installed equipment.

A round locking mechanism helps restrict unauthorized access.

The front door is reversible, allowing the installer to configure its opening direction according to the available installation space.

Removable and Lockable Side Panels

The cabinet features removable side panels with locks.

These panels provide additional access during installation, cable management and equipment servicing.

Once secured, they help maintain an enclosed installation.

Convenient Cable Management

Top and bottom cable slots provide routing options for Ethernet cables, power connections and other equipment wiring.

The removable rear panel supports cleaner cable access during wall installation.

This design helps installers organize equipment connections and maintain a tidy networking setup.

Optional Cooling Fan Installation

The cabinet features two top fan mounting slots for compatible cooling fans.

Fans can be added when additional airflow is required for the installed equipment.

Cooling fans are not included with the cabinet.

Verify fan dimensions and compatibility before purchasing optional cooling accessories.

Heavy-Duty Mounting Rails

The cabinet includes heavy-duty mounting rails for compatible 19-inch rack equipment.

The manufacturer-listed load capacity is 70kg (154 lbs), subject to appropriate installation and structural support.

Always verify equipment weight, mounting compatibility and wall strength before installation.

Technical Specifications

Specification	Details
Brand	Protech
Product Type	Wall Mount Network / AV Cabinet
Rack Capacity	12U
Nominal Cabinet Depth	600mm
External Cabinet Depth	24 Inches
Rack Mounting Width	19 Inches
Rack Standard	EIA-310-D
Front Door	Tempered Glass
Front Door Lock	Round Lock
Reversible Front Door	Yes
Side Panels	Removable and Lockable
Rear Panel	Removable
Cable Entry	Top and Bottom Slots
Top Fan Mounting Positions	2
Cooling Fans Included	No
Rack Shelf Included	No
Mounting Rails	Heavy-Duty
Locks and Keys	3 Locks with Keys
Cage Nuts and Bolts	20 Sets Included
Maximum Listed Load	70kg / 154 lbs
Manufacturer Warranty	1 Year
Colour	Not Specified
Cabinet Material	Not Specified

Cabinet Dimensions

Measurement	External Dimensions	Internal Dimensions
Width	23.5 Inches	19 Inches
Depth	24 Inches	21.5 Inches
Height	25 Inches	23 Inches

External Dimensions: 23.5 W × 24 D × 25 H inches

Listed Internal Dimensions: 19 W × 21.5 D × 23 H inches

The internal measurements are reproduced from the supplied specifications. Actual usable equipment clearance should be confirmed before installation.

Package Includes

• 1 × Protech 12U 600mm Wall Mount Network Cabinet
• Tempered-Glass Front Door
• Removable Lockable Side Panels
• Removable Rear Panel
• Heavy-Duty Mounting Rails
• 3 × Locks with Keys
• 20 × Sets of Cage Nuts and Bolts

Not Included

• Cooling Fans
• Rack Shelf

Wall-mounting anchors and fasteners have not been confirmed as included.

Ideal Applications

• Home network installations
• Small business network closets
• CCTV DVR and NVR installations
• Office networking equipment
• Telecommunications systems
• Ethernet patch panels and switches
• Audio/video equipment installations
• Structured cabling projects
• Commercial networking environments

Installation and Compatibility Notes

• Install the cabinet on a suitable load-bearing wall structure.
• Use appropriate wall-mounting hardware for the installation.
• Do not exceed the listed 70kg (154 lb) load capacity.
• Verify equipment depth and mounting compatibility.
• Allow sufficient clearance for rear cables and connectors.
• Maintain adequate ventilation around installed equipment.
• Add compatible cooling fans if required by the equipment’s thermal requirements.
• Confirm the required door-opening direction before installation.
• Use compatible rack shelves for equipment that cannot be directly rack-mounted.
