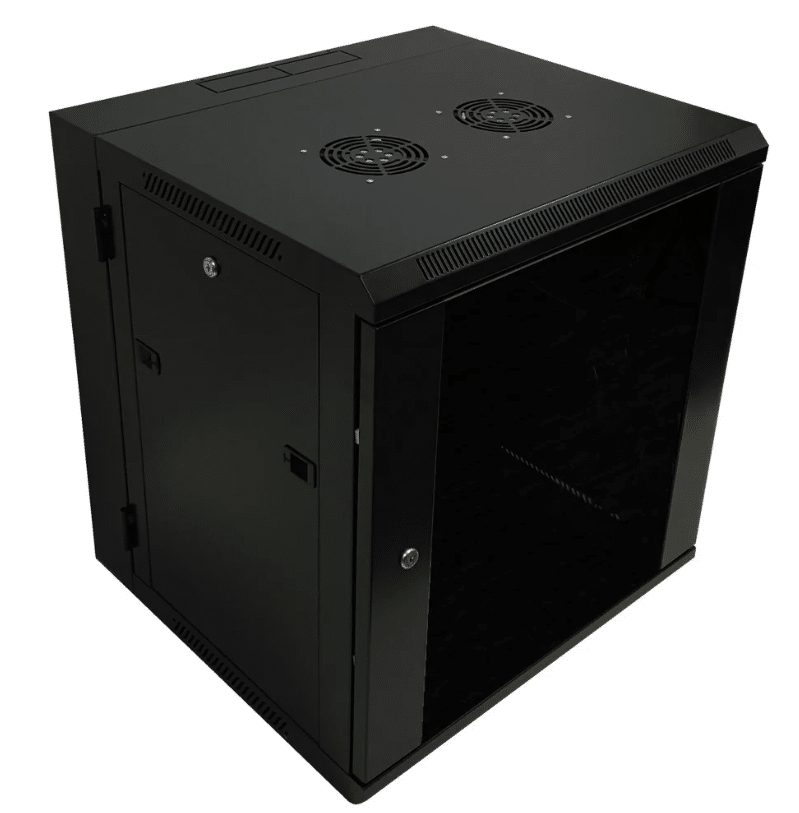

Protech 12U Double-Hinged Swing-Out Wall Mount Network Server Cabinet – 550mm / 21.5-Inch Deep

Upgrade your networking and security equipment installation with the Protech 12U Double-Hinged Swing-Out Wall Mount Server Cabinet – 550mm (21.5-Inch Deep).

Designed for home offices, commercial networking environments, CCTV installations and structured cabling projects, this pre-assembled network cabinet features a double-hinged swing-out design that provides convenient rear access to installed equipment.

With 12U rack capacity, standard 19-inch equipment mounting width, a lockable tempered-glass front door, removable lockable side panels and heavy-duty mounting rails, the Protech 12U cabinet offers a practical enclosed solution for compatible networking and audio/video equipment.

The cabinet also includes top and bottom cable entry slots, two top fan mounting positions and a manufacturer-listed 70kg (154 lb) load capacity.

Key Features

• 12U Rack Capacity: Provides 12 rack units of mounting space for compatible networking and AV equipment.
• 550mm / 21.5-Inch External Depth: Accommodates compatible rack-mounted equipment within the cabinet’s available internal space.
• Double-Hinged Swing-Out Design: Allows the cabinet section to swing outward for easier access to rear equipment connections.
• Wall-Mount Installation: Helps conserve floor space in network rooms and equipment areas.
• Pre-Assembled Cabinet: Supplied pre-assembled in the box.
• Standard 19-Inch Rack Width: Designed for compatible 19-inch rack-mounted devices.
• EIA-310-D Compliant: Listed as compliant with the standard rack mounting specification.
• Tempered-Glass Front Door: Allows visibility of installed equipment.
• Round Front Door Lock: Helps restrict unauthorized access.
• Reversible Front Door: Offers flexibility for installation layouts.
• Removable Lockable Side Panels: Provides access for equipment installation and maintenance.
• Top and Bottom Cable Entry Slots: Supports organized cable routing.
• Two Top Fan Mounting Slots: Allows installation of compatible optional cooling fans.
• Heavy-Duty Mounting Rails: Supports compatible rack-mounted equipment.
• 70kg / 154 lb Listed Load Capacity: Manufacturer-listed maximum load rating.
• Three Locks with Keys: Included as specified.
• 20 Sets of Cage Nuts and Bolts: Included for compatible rack equipment.
• One-Year Manufacturer Warranty: Subject to manufacturer warranty terms.

Important: Cooling fans and rack shelves are not included. These accessories are sold separately.

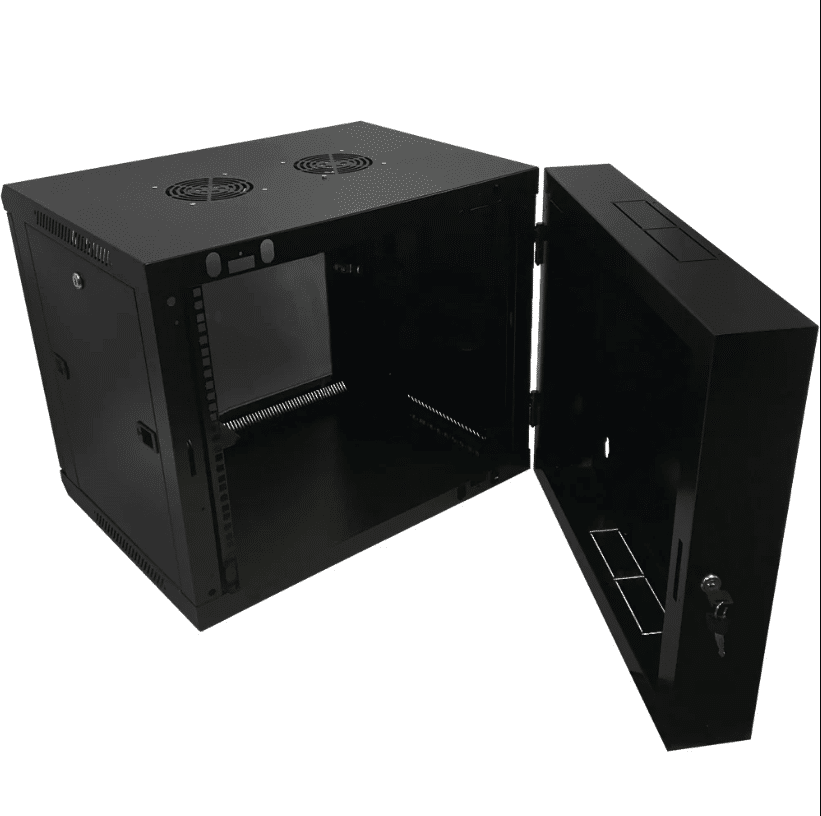

Double-Hinged Swing-Out Design for Easy Rear Access

The standout feature of this Protech 12U cabinet is its double-hinged swing-out construction.

Unlike conventional fixed wall-mount cabinets, the swing-out section provides access to the rear of installed equipment without requiring the entire cabinet to be removed from the wall.

This feature is especially useful when working with:

• Network switch connections
• Ethernet patch panels
• CCTV DVR and NVR cabling
• Router and firewall connections
• Audio/video equipment wiring
• Structured cabling installations

The swing-out design can help simplify maintenance, equipment upgrades and cable changes.

Allow adequate clearance for the cabinet to swing open safely.

12U Rack Capacity for Networking and Security Equipment

The cabinet provides 12U of mounting space for compatible standard 19-inch rack equipment.

Suitable applications include:

• Ethernet network switches
• Network patch panels
• Compatible routers and firewalls
• CCTV DVR and NVR systems
• Rack-mounted audio/video equipment
• Compatible power distribution units
• Cable management accessories
• Other appropriately sized 19-inch rack devices

Confirm equipment depth, mounting requirements and ventilation clearance before installation.

21.5-Inch Deep Network Rack Cabinet

The cabinet has a listed external depth of 21.5 inches (550mm nominal) and a listed internal depth of 16 inches.

This distinction is important when selecting equipment.

Although the cabinet is marketed as 21.5 inches deep, the listed internal depth is 16 inches. The swing-out cabinet construction and internal mounting arrangement may affect the space available for equipment.

Always verify your equipment’s dimensions and allow sufficient clearance for mounting rails, rear connectors and cables.

Lockable Tempered-Glass Front Door

The cabinet features a tempered-glass front door with a round locking mechanism.

The glass door allows visibility of installed equipment while helping control physical access.

The reversible design provides flexibility when positioning the cabinet in network rooms, offices and other installation environments.

Removable and Lockable Side Panels

The Protech 12U cabinet includes removable side panels with locks.

These panels provide convenient access for equipment installation, maintenance and cable management.

The lockable design helps keep the equipment enclosure secured after installation.

Convenient Cable Management

Top and bottom cable entry slots support routing for Ethernet cables, power connections and other equipment wiring.

Combined with the swing-out rear access design, these openings help simplify cable organization and equipment servicing.

Optional Cooling Fan Installation

The cabinet includes two top fan mounting positions for compatible optional cooling fans.

Additional ventilation may be beneficial depending on the heat output and operating requirements of installed equipment.

Cooling fans are not included.

Check fan size and compatibility before purchasing cooling accessories.

Heavy-Duty Rack Mounting Rails

Heavy-duty mounting rails provide support for compatible 19-inch rack equipment.

The manufacturer lists a maximum load capacity of 70kg (154 lbs).

Safe loading depends on suitable wall structure, proper mounting hardware, equipment weight distribution and correct installation.

For a swing-out cabinet, ensure that both the wall mounting and hinge assembly are suitable for the installed equipment load.

Technical Specifications

Specification	Details
Brand	Protech
Product Type	Double-Hinged Swing-Out Wall Mount Network Cabinet
Rack Capacity	12U
Nominal Cabinet Depth	550mm
External Cabinet Depth	21.5 Inches
Listed Internal Depth	16 Inches
Rack Mounting Width	19 Inches
Rack Standard	EIA-310-D
Mounting Type	Wall Mount
Cabinet Design	Double-Hinged Swing-Out
Rear Equipment Access	Swing-Out Design
Assembly	Pre-Assembled
Front Door	Tempered Glass
Front Door Lock	Round Lock
Reversible Front Door	Yes
Side Panels	Removable and Lockable
Cable Entry	Top and Bottom Slots
Top Fan Mounting Positions	2
Cooling Fans Included	No
Rack Shelves Included	No
Mounting Rails	Heavy-Duty
Locks and Keys	3 Locks with Keys
Cage Nuts and Bolts	20 Sets
Manufacturer-Listed Load Capacity	70kg / 154 lbs
Manufacturer Warranty	1 Year
Cabinet Colour	Not Specified
Cabinet Material	Not Specified

Cabinet Dimensions

Measurement	Dimensions
External Width	23.5 Inches
External Depth	21.5 Inches
External Height	25 Inches
Listed Internal Width	19 Inches
Listed Internal Depth	16 Inches
Listed Internal Height	23 Inches

External Dimensions: 23.5 W × 21.5 D × 25 H inches

Listed Internal Dimensions: 19 W × 16 D × 23 H inches

Important: The listed internal depth is 16 inches, not 21.5 inches. Actual usable mounting depth may be smaller depending on the rail position and cable clearance.

Package Includes

• 1 × Protech 12U 550mm Double-Hinged Swing-Out Wall Mount Cabinet
• Tempered-Glass Front Door
• Removable Lockable Side Panels
• Heavy-Duty Mounting Rails
• 3 × Locks with Keys
• 20 × Sets of Cage Nuts and Bolts

Cabinet is supplied pre-assembled.

Not Included

• Cooling Fans
• Rack Shelves

Wall mounting anchors and fasteners have not been confirmed as included.

Ideal Applications

• Small business networking installations
• Home network equipment
• CCTV DVR and NVR installations
• Network switches and patch panels
• Structured cabling systems
• Telecommunications equipment
• Audio/video equipment storage
• Commercial IT network closets
• Installations requiring convenient rear equipment access

Installation and Compatibility Notes

• Verify the wall structure can support the cabinet and installed equipment.
• Use suitable mounting hardware for the installation surface.
• Confirm adequate clearance for the swing-out cabinet section.
• Do not exceed the manufacturer-listed 70kg (154 lb) load capacity.
• Verify equipment depth and mounting compatibility.
• Allow sufficient clearance for cables, connectors and ventilation.
• Purchase compatible cooling fans and rack shelves separately if required.
• Confirm the front door opening direction and available installation space.
