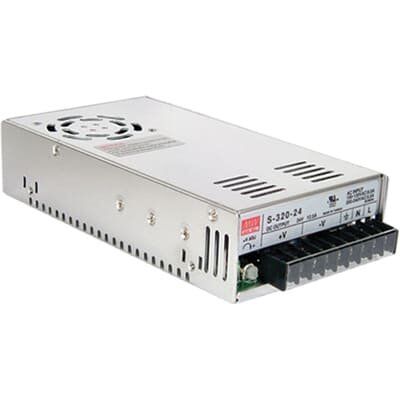

Single Output Switching Power Supply
Universal AC Input: 85-264 VAC, 120-370 VDC
Fixed Switching Frequency at 56 kHz
Short Circuit, Overload, and Over-Voltage Protection Included
Free Air Convection Cooling
100% Full Load Burn-In Tested
Output: 24 V, 12.5 A
Efficiency: 86%
Mean Time Before Failure: 188.79K Hours Min.
AC Input Voltage Range: 88-132 VAC, 176-264 VDC
DC Adjustment Range: ±10% Rated Output Voltage
Overload Protection: 105% — 150% Rated Output Power Via Shut Off, AC Recycle to Restart
Over Voltage Protection: 115% – 135% Rated Output Voltage Via Shut Off, AC Recycle to Restart
Over-Temperature Protection: Fan Controlled, Hiccup Mode, Recovers Automatically After Fault is Removed
Connection: 7P/9.5 mm Pitch Terminal Block
Dimensions (L x W x H) IN.): 8.46 x 4.53 x 1.97 Inch
| Weight | 4 lbs |
|---|---|
| Dimensions | 12 × 6 × 2 in |
