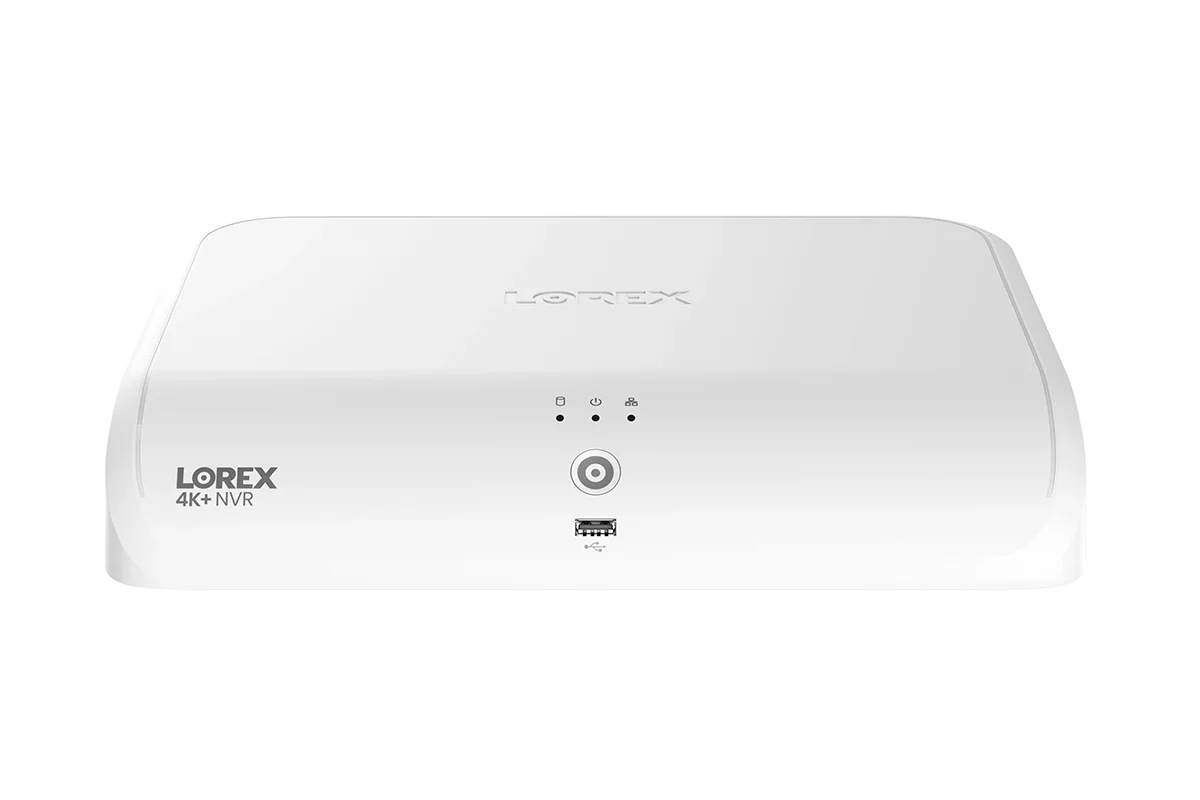

Lorex Fusion 4K+ 12MP 16-Camera Capable NVR with 2TB HDD (8 Wired PoE + 8 Wi-Fi) – N910A62-2TB

Future-Ready 12MP Surveillance with Pre-Installed Storage: Lorex Fusion 4K+ NVR (N910A62-2TB)

Step up to professional-grade clarity and hybrid versatility with the Lorex Fusion 4K+ Ultra HD 12MP Network Video Recorder with 2TB HDD (N910A62). Supporting up to 16 cameras simultaneously (8 wired PoE channels plus 8 Lorex Fusion Wi-Fi devices), this flagship NVR introduces next-generation 12MP recording performance—giving you 50% more pixels than standard 4K (8MP). Pre-fitted with a dedicated 2TB security-grade hard drive, it consolidates your wired cameras, wireless cameras, video doorbells, and floodlights onto one unified system with zero monthly subscription fees.

Expanded System Capabilities & Hardware Highlights

• Pre-Installed 2TB Surveillance Hard Drive: Arrives ready for 24/7 continuous recording out of the box with an internal security-grade drive engineered for heavy read/write cycles. Accommodates single-bay drive upgrades up to a massive 16TB.
• Ultra HD 12MP (4K+) Recording: Fully compatible with Lorex 12MP and 4K+ camera sensors, delivering ultra-clear video evidence that retains crisp forensic sharpness even under digital magnification.
• Hybrid Fusion Ecosystem: Connect up to 8 hardwired PoE cameras directly into the onboard network switch, while wirelessly onboarding up to 8 compatible Lorex Fusion Wi-Fi cameras or video doorbells onto the same recorder.
• Intelligent Attribution & Smart Search: Cut review time down from hours to seconds. Search video clips based on specific visual attributes—including vehicle color, license plate numbers, and person clothing color.
• Advanced AI Event Detection: Fully compatible with cameras featuring deep-learning detection for persons, vehicles, faces, masks, animals, and left-behind or missing packages.
• Active Deterrence & Panic Button: Trigger connected camera warning lights, sirens, and two-way talk directly from the system interface or tap the dedicated hardware front-panel panic button during an emergency.
• Smart Home & Voice Control: Stream live security feeds directly to your smart displays using Amazon Alexa, Google Assistant, Apple TV, Chromecast, or the Lorex Home mobile app.
• Integrated 8-Port PoE Switch: Delivers up to 25.5W on a single port (72W total power pool) to run video, power, and audio across a single Cat5e/Cat6 network run per camera.

Technical Specifications

• Model / SKU: Lorex N910A62 (2TB HDD Configuration)
• Included Storage: 2TB Pre-Installed Surveillance HDD (Supports up to 16TB SATA)
• Total Camera Capacity: 16 Channels (8 Wired PoE + 8 Fusion Wi-Fi)
• Max Recording Resolution: 12MP (16:9), 4K+ (11.3MP 16:9), 4K (8MP), 5MP, 1080p, 720p
• Video Compression: H.265 / H.264
• Hard Drive Bays: 1 × SATA Bay (Pre-loaded with 2TB)
• Video Outputs: 1 × HDMI (up to 4K), 1 × VGA
• PoE Ports & Budget: 8 × RJ-45 10/100 Mbps (Max 25.5W per port, 72W Total PoE Budget)
• Audio Connections: 1 × RCA Audio In / 1 × RCA Audio Out
• USB Ports: 2 × USB 2.0 (Front and Rear for mouse control and USB video export)
• Network Interface: 1 × RJ-45 Gigabit LAN port
• Power Supply: 100–240 VAC, 50/60 Hz, DC 53V / 1.8A (Approx. 8.3W without HDD)
• Dimensions & Weight: 328 × 245 × 53 mm (12.9″ × 9.6″ × 2.1″), 1.26 kg (2.75 lbs excl. HDD)
• Operating Temperature: -10°C to 50°C (14°F to 131°F)

Package Contents

• 1 × Lorex Fusion 4K+ 12MP 16-Camera NVR (N910A62)
• 1 × Pre-Installed 2TB Surveillance Hard Drive
• 1 × Dedicated NVR Power Adapter & Cord
• 1 × HDMI Cable
• 1 × Ethernet Cable (RJ-45)
• 1 × USB Mouse
• 1 × Quick Setup Guide & Mounting Screws
