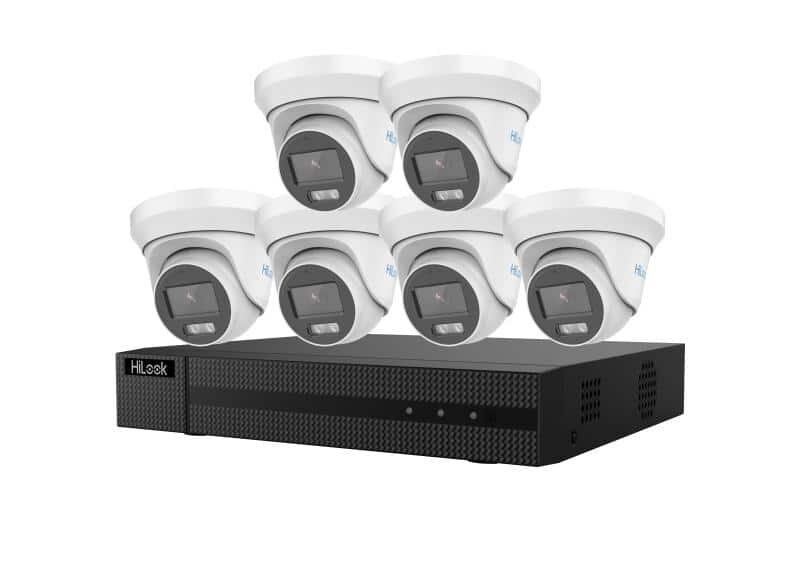

HiLook TK-6285TC-MC 8-Channel 5MP ColorVu Lite DVR Kit


$ 599.99 $ 699.99

Compare

HiLook TK-6285TC-MC 8-Channel 5MP ColorVu Lite DVR Kit – One pack contains everything required for small monitoring scenarios.

Key Feature:

  • One 8-channel Analog DVR  with 8-ch IP Video Input (up to 16-ch if no Analog Channel used)
  • DVR with Motion Detection 2.0: Human/Vehicle Analysis
  • 2TB pre-installed HDD NVR (PoE Standard: IEEE802.3 af/at)
  • 6 5MP fixed turret network cameras (2.8mm) with efficient H.265 compression technology
  • ColorVu Lite 24/7 color imaging with F1.0 aperture and 0.001 Lux illumination
  • High quality audio with audio over coaxial cable
  • IP66 rated with -40 °C to 60 °C (-40 °F to 140 °F) operating and storage conditions
SKU: TK-6285TC-MC Category:
Camera
Image Sensor 3K CMOS
Signal System PAL/NTSC
Resolution 2960 (H) × 1665 (V)
Frame Rate TVI: 3K @ 20 fps, 4 MP @ 25 fps/30 fps, 1080p @ 25 fps/30 fps
AHD: 4 MP @ 25 fps/30 fps
CVI: 4 MP @ 25 fps/30 fps
CVBS: PAL/NTSC
Min. Illumination 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Lens 2.8 mm fixed focal lens
Field of View 2.8 mm, horizontal FOV: 113°, vertical FOV: 62°, diagonal FOV: 137°
Lens Mount M12
Light Alarm Solid Light Alarm (White Light)
Day & Night 24/7 Color Imaging
WDR (Wide Dynamic Range) Digital WDR
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
White Light Auto/Off
Image Mode STD/HIGH-SAT/HIGHLIGHT
AGC Yes
Day/Night Mode Color
White Light Auto/Manual
AE (Auto Exposure) Mode DWDR,BLC,HLC,Global
Noise Reduction 2D DNR
Language English
Function Brightness,Sharpness,Anti-Banding
Lighting Mode White Light
Interface
Video Output Switchable TVI/AHD/CVI/CVBS
General
Operating Conditions -40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)
Power Supply 12 VDC±25%
*You are recommended to use one power adapter to supply the power for one
camera.
Consumption Max. 4.2 W
Protection Level IP66
Material Metal
White Light Range Up to 40 m
Dimension Φ 127.92 mm × 97.8 mm (Φ 5.04″ × 3.86″)
Weight Approx. 480 g (1.06 lb.)
