Surveillance Cameras - Security Camera Kits

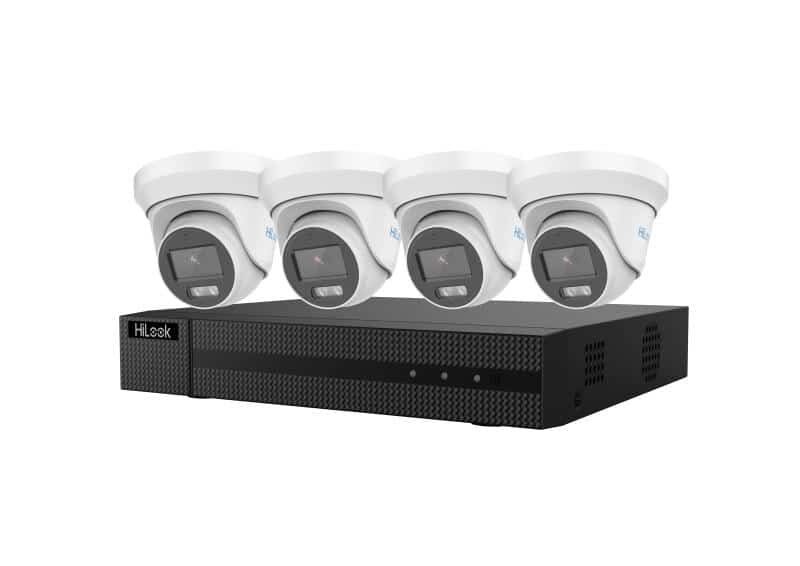

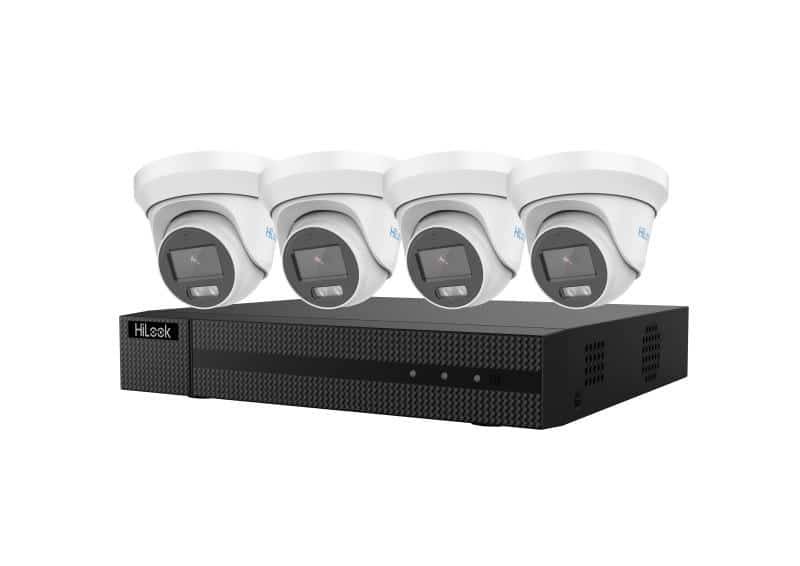

HiLook TK-4145TC-MC 4-Channel 5MP ColorVu Lite DVR Kit
$ 379.99 $ 449.99
HiLook TK-4145TC-MC 4-Channel 5MP ColorVu Lite DVR Kit – One pack contains everything required for small monitoring scenarios.
Key Feature:
- One 4-channel Analog DVR  with 2-ch IP Video Input (up to 6-ch if with no Analog channel used)
- DVR with Motion Detection 2.0: Human/Vehicle Analysis
- 1TB pre-installed HDD NVR (PoE Standard: IEEE802.3 af/at)
- 4 5MP fixed turret network cameras (2.8mm) with efficient H.265 compression technology
- ColorVu Lite 24/7 color imaging with F1.0 aperture and 0.001 Lux illumination
- High quality audio with audio over coaxial cable
- IP66 rated with -40 °C to 60 °C (-40 °F to 140 °F) operating and storage conditions
| Weight | 4 lbs |
|---|
| Camera | |
|---|---|
| Image Sensor | 3K CMOS |
| Signal System | PAL/NTSC |
| Resolution | 2960 (H) × 1665 (V) |
| Frame Rate | TVI: 3K @ 20 fps, 4 MP @ 25 fps/30 fps, 1080p @ 25 fps/30 fps AHD: 4 MP @ 25 fps/30 fps CVI: 4 MP @ 25 fps/30 fps CVBS: PAL/NTSC |
| Min. Illumination | 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Time | PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s |
| Lens | 2.8 mm fixed focal lens |
| Field of View | 2.8 mm, horizontal FOV: 113°, vertical FOV: 62°, diagonal FOV: 137° |
| Lens Mount | M12 |
| Light Alarm | Solid Light Alarm (White Light) |
| Day ＆ Night | 24/7 Color Imaging |
| WDR (Wide Dynamic Range) | Digital WDR |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° |
| Image | |
| White Light | Auto/Off |
| Image Mode | STD/HIGH-SAT/HIGHLIGHT |
| AGC | Yes |
| Day/Night Mode | Color |
| White Light | Auto/Manual |
| AE (Auto Exposure) Mode | DWDR,BLC,HLC,Global |
| Noise Reduction | 2D DNR |
| Language | English |
| Function | Brightness,Sharpness,Anti-Banding |
| Lighting Mode | White Light |
| Interface | |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
| General | |
| Operating Conditions | -40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing) |
| Power Supply | 12 VDC±25% *You are recommended to use one power adapter to supply the power for one camera. |
| Consumption | Max. 4.2 W |
| Protection Level | IP66 |
| Material | Metal |
| White Light Range | Up to 40 m |
| Dimension | Φ 127.92 mm × 97.8 mm (Φ 5.04″ × 3.86″) |
| Weight | Approx. 480 g (1.06 lb.)
|
