HiLook security cameras are a quality and budget friendly option for home and small business security. Use the free iOS and Android apps for live and recorded viewing. Free Windows software is also available. Camera set-up is plug and play – just connect the cameras to the recorder and they’re up and running. The recorder has an HDMI port to allow a local monitor to be connected.
The included 8MP cameras provide a great combination of resolution with day time colour viewing and night time infrared night vision.
The NVR (recorder) uses advanced H.265 video compression to store as much as possible without losing quality. The NVR has a pre-installed 2TB hard drive.

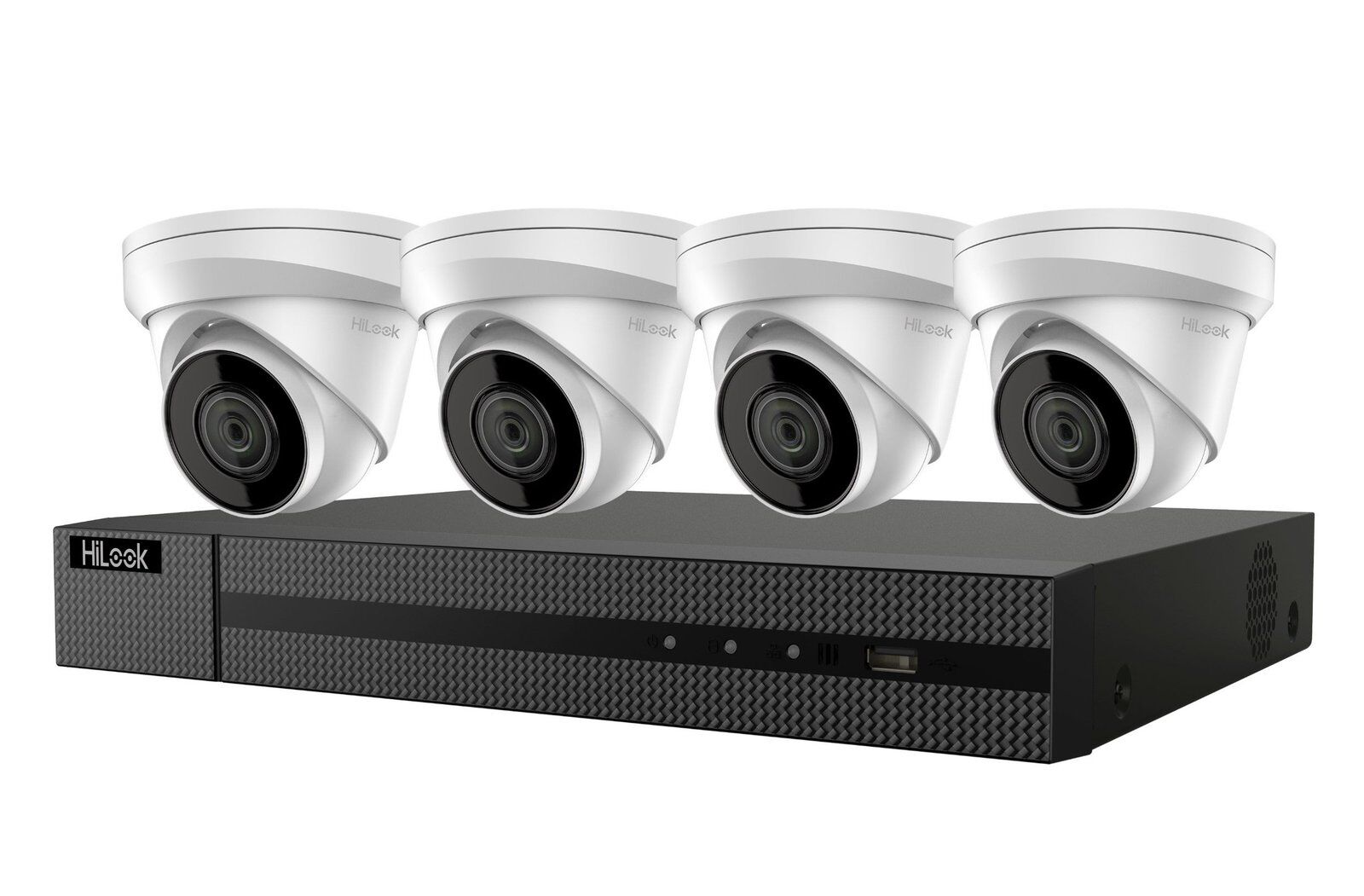

HiLook IK-4248TH-MH/P Includes:
1 x 4 Channel – NVR NVR-104MH-C/4P
1 x 2TB Hard Drive pre-Installed
4 x 8MP Cameras – IPC-T280H 2.8mm
5 x Network cables
HiLook IK-4248TH-MH/P Features:
NVR recording resolution up to 8MP
NVR has 4 channels and 4 PoE ports
8MP high def turret cameras with H.265 compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR/VBR
Region of Interest (ROI)
1 fixed region for main stream
Network
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, security audit log, TLS 1.2, host
authentication (MAC address)
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface (Profile S), ISAPI, SDK
Up to 32 users
3 levels: Administrator, Operator and User
Client
iVMS-4200, HiLookVision
Web Browser
Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+
Wide Dynamic Range (WDR)
120 dB
SNR
≥ 52 dB
Day/Night Switch
Day, Night, Auto, Schedule
Image Enhancement
BLC, HLC, 3D DNR
Image Settings
Mirror, rotate, saturation, brightness, contrast, sharpness, gain, white balance
adjustable by client software or web browser
Privacy Mask
4 regions of privacy mask
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
Event
Basic Event
Motion detection, video tampering alarm, exception
Linkage
Notify surveillance center, trigger capture
General
Power
12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
Material
Metal & Plastic
Dimension
Ø110 mm × 95.2 mm (Ø4.3″ × 3.8″)
Package Dimension
150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)
Weight
Approx. 320 g (0.7 lb.)
With Package Weight
Approx. 530 g (1.2 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
English, Ukrainian
General Function
Anti-flicker, heartbeat, password protection, password reset via email
Approval
EMC
FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019,
EN 50130-4: 2011+A1: 2014);
RCM (AS/NZS CISPR 32: 2015)
Safety
CB (IEC 62368-1:2014+A11);
CE-LVD (EN 62368-1:2014/A11:2017)
Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
Protection
IP67 (IEC 60529-2013)
NVR
Video and Audio
IP Video Input
4-ch
Up to 8 MP resolution
Incoming/Outgoing
Bandwidth
40 Mbps/80 Mbps
HDMI Output
1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920
x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
Network cable:
4 × 18 m (59.1 ft) video and power cable 1 × 1 m (3.3 ft) video and power cable
Hard Drive
Pre-installed 2 TB HDD
Certification
FCC, CE
Weight (with package)
≤ 6.5 kg (14.3 lb)
