-Max.1500 faces capacity, Max.3000 fingerprints capacity, and Max.3000 cards

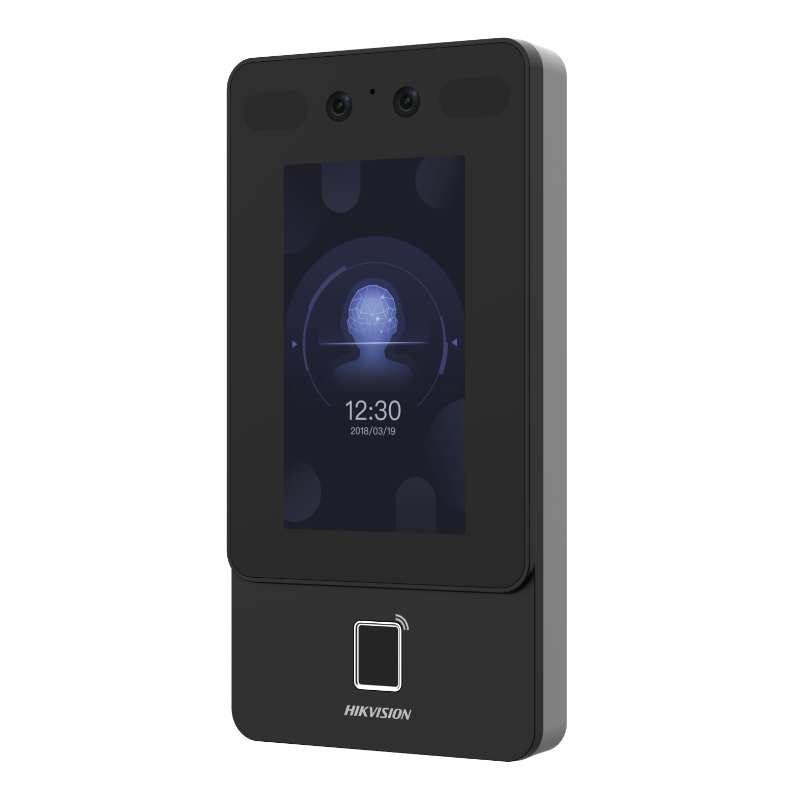

-Face Recognition Terminal, 4.3-inch LCD touch screen, 2 Mega pixel wide-angle lens, built-in M1card reading module
-Two-way audio with client software, indoor station, and main station; Supports TCP/IP, Wi-Fi
-Supports ISAPI, ISUP5.0
-Configuration via the web client
-Face Recognition Distance: 0.3 m to 1.5 m; Duration ＜ 0.2 s/User; Accuracy rate ≥ 99%
-Supports face with mask recognition
-Powers supply by standard PoE and at the same time powers supply for door lock (12 VDC/1 A)
-Supports platform-applied personal PIN and device-set personal PIN
| System | |
| Operation system | Linux |
| Display | |
| Dimensions | 4.3-inch |
| Resolution | 272 × 480 |
| Type | LCD |
| Operation method | Capacitive touch screen |
| Video | |
| Pixel | 2 MP |
| Lens | × 2 |
| Video standard | PAL (Default) and NTSC |
| Network | |
| Wired network | 10 M/100 M self-adaptive |
| Wi-Fi | Support |
| Interface | |
| PoE | IEEE802.3at, standard PoE |
| Network interface | 1 |
| RS-485 | 1 |
| Wiegand | 1 |
| Lock output | 1 |
| Exit button | 1 |
| Door contact input | 1 |
| TAMPER | 1 |
| USB | 1 |
| Capacity | |
| Card capacity | 3,000 |
| Face capacity | 1,500 |
| Fingerprint capacity | 3,000 |
| Event capacity | 150,000 |
| Authentication | |
| Card type | M1 card |
| Card reading frequency | 13.56 MHz |
| Face recognition duration | ＜ 0.2 s |
| Face recognition accuracy rate | ＞99% |
| Face recognition distance | 0.3 to 1.5 m |
| Fingerprint recognition duration | ＜1 s |
| General | |
| Power supply |
Power input: Power interface (power adapter included, 12 VDC/1 A) or PoE (37 to 57 VDC/0.6 A) Power output: Power supply for door lock, 12 VDC/1 A (only when the device is powered by PoE supporting powering supply for door lock) |
| Working temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Working humidity | 0 to 90% (No condensing) |
| Dimensions | 91.3 mm × 181.3 mm × 24.5 mm (3.59″ × 7.14″ × 0.96″) |
| Installation | Wall Mounting |
| Protective level | IP65 |
| Language | English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean |
|
Gross weight: 0.93 kg (2.05 lbs) Net weight: 0.36 kg (0.79 lbs) |
|
| Function | |
| Face anti-spoofing | Support |
| Audio prompt | Support |
| Time synchronization | Support |
| Weight | 5 lbs |
|---|
