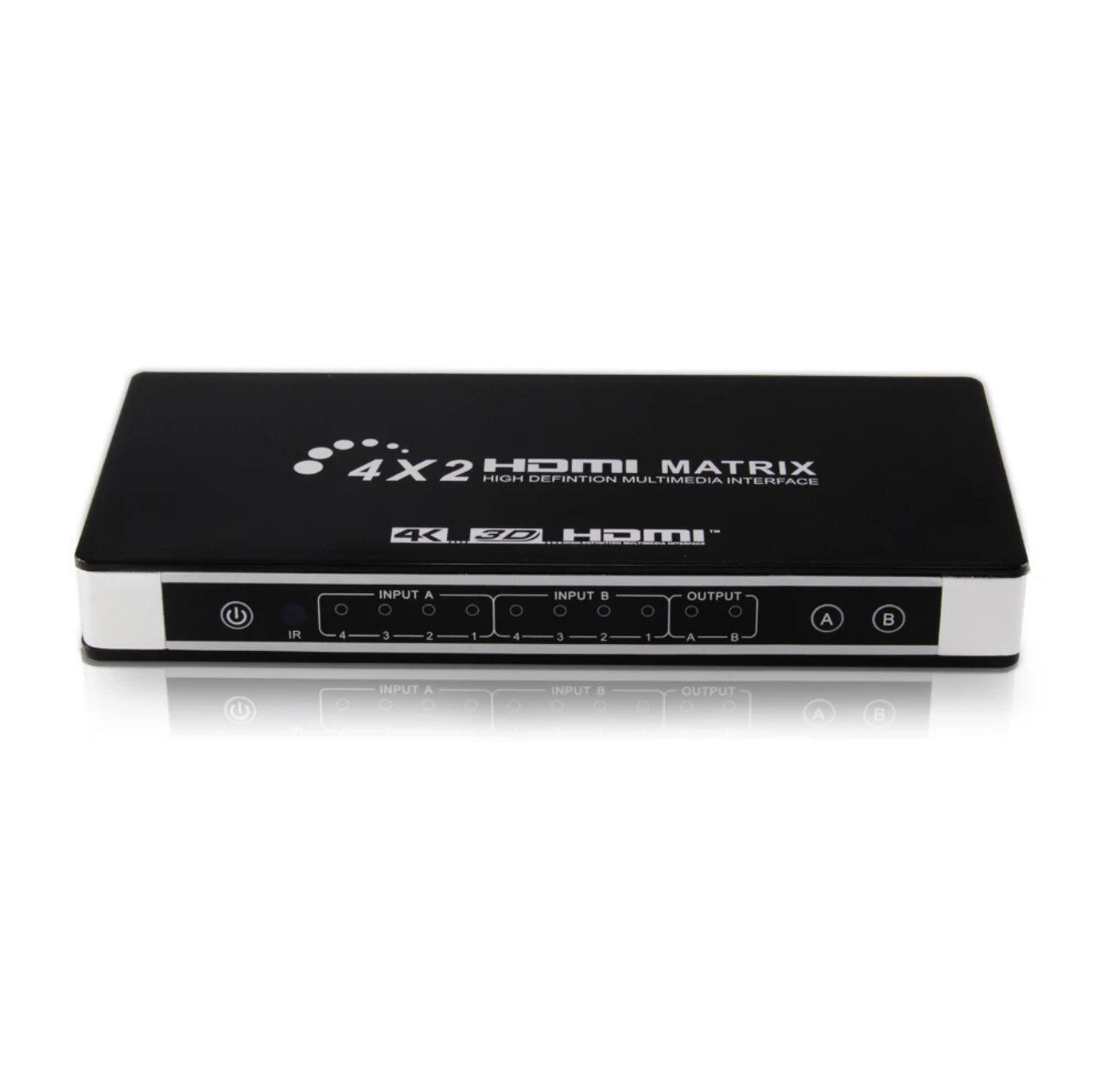

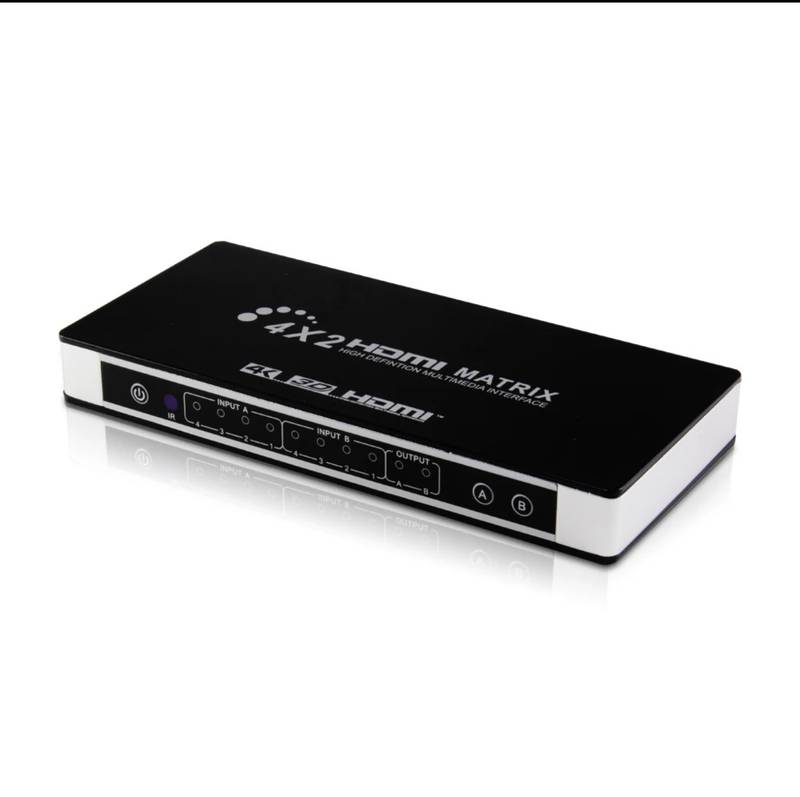

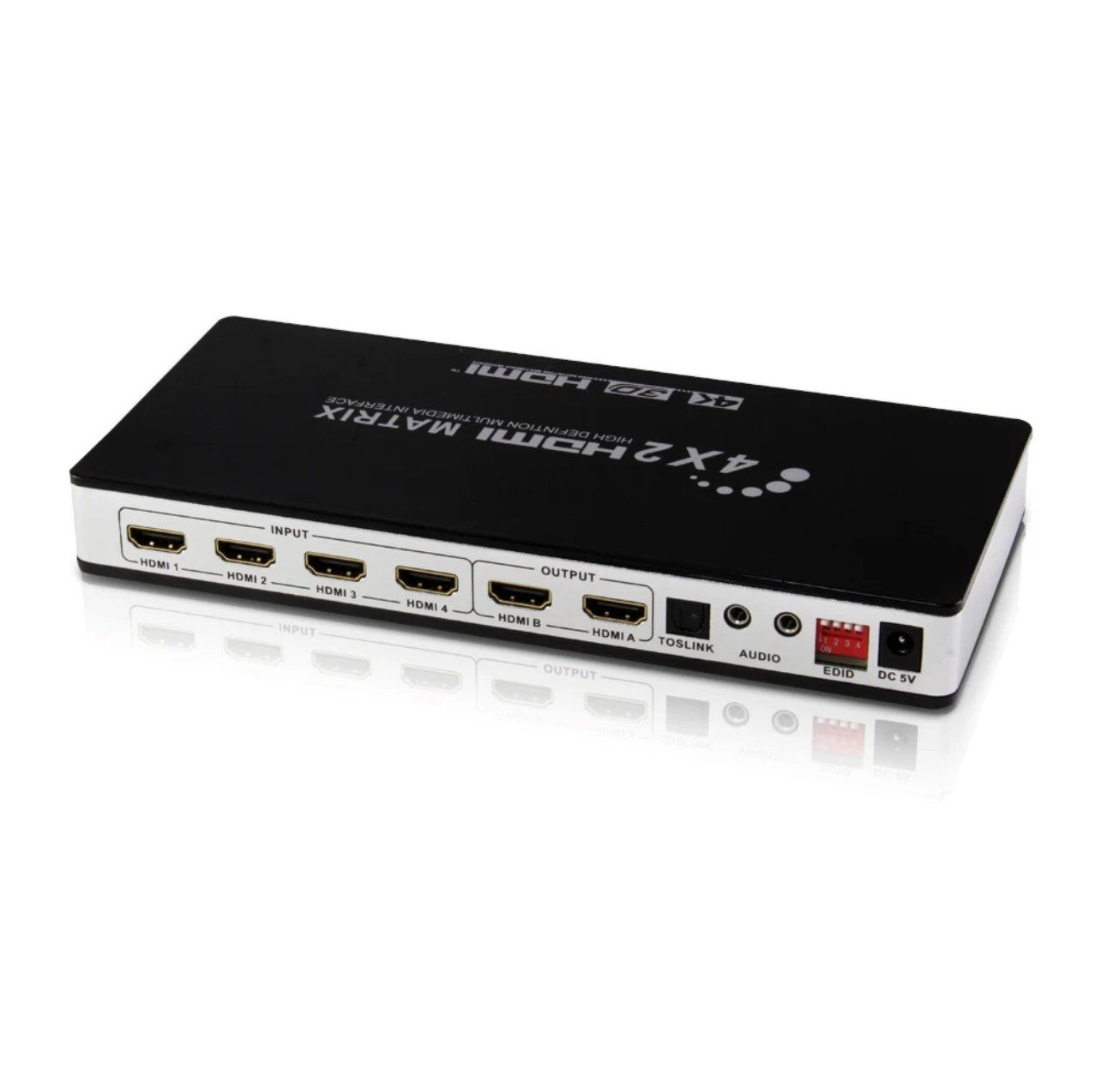

High Quality 4×2 audio video matrix switcher support 4K CEC ARC

Four HDMI input signals switched or split to two HDMI  devices

One of the HDMI output is with audio output by SDPIF and 3.5mm Stereo Audio output

Audio sync separator output can be achieved with 2CH, 5.1CH, Pass three audio modes selectable

Support 3D

Support 4K X 2K

With HDMI-CEC function

Support deep color 30bit, 36bit

Support Blue-Ray 24/50/60fps/HD-DVD/xv YCC

Digital audio format, as DTS-HD/-true HD/LPCM7.1/-AC3/DSD

Support signal retiming

Support input up to 15metres AWG24 HDMI standard cable length output up to 25 meters AWG24 cable length

Inputs can be switched with the IR remote control, also can be controlled by two buttons

It can smartly jump over those sources which are not connected

It can come back to the default the input 1 status when restarted or reset

LED Indicator: when someone source device or someone sink display device is working,

LED relative will come to light; when someone source is selected to any sink, the LED relative to the source will come to light

No loss of quality

Installs in minutes

DC 5V/2A power supply included

Package content:

HDMI Matrix 4×2 Unit

5V Power Adaptor

Remote

Manual
