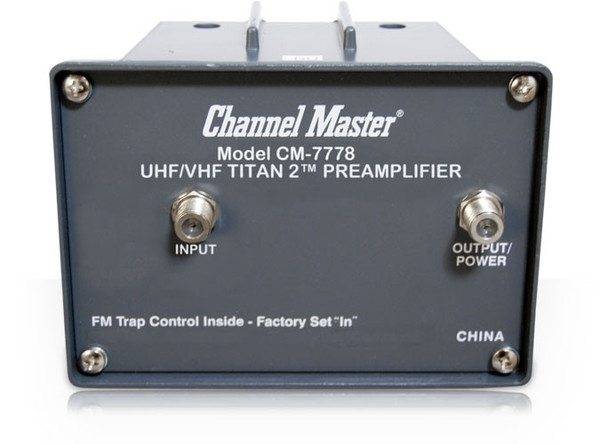

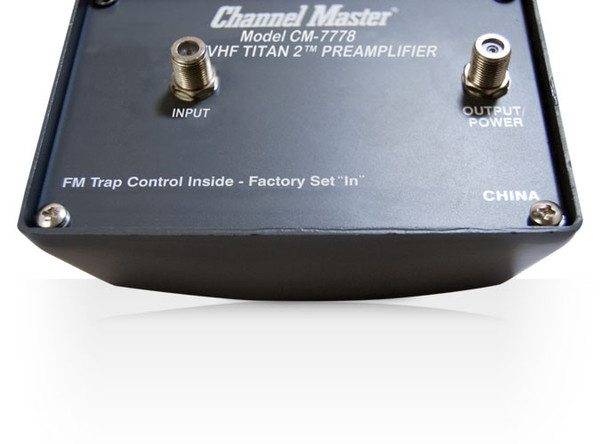

Channel Master CM-7778 Titan2 UHF/VHF Pre-Amp


OUT OF STOCK

$ 88.99

Signals received by your antenna will be amplified by the Channel Master Cm-7778 Preamplifier. This antenna amplifier is a medium gain, low noise preamplifier that allows weaker signals at the antenna to be amplified to a visible level. It’s excellent for installations where broadcast towers are spaced far apart. The Titan 2 Medium Gain Preamplifier is made up of two parts: an outdoor amplification unit that goes on the antenna system’s mast and an interior device that powers the outdoor amplification unit. Indoors, the indoor unit is connected to the outside unit through coaxial wire.

Features:

  • Improves signal quality
  • Decreases pixilation
  • May increase number of channels
  • Ultra low noise
  • Gain – 16 dB
  • Selectable FM signal pass-through
  • Heavy duty rating for outdoor use
  • Mast mounted for close proximity to antenna

Channel Master Cm-7778 Technical Specifications:

  • Power supply input voltage: 120v AC-60Hz, 100 mA
  • Power supply output voltage: 15v DC, 300 mA
  • Impedance (Input and Output): 75 Ohm
  • Connector: F-type
  • Frequency range: 30 – 1002 MHz
  • Gain: 16dB
  • Noise figure: typically less than 2dB
  • UL listed: Yes
  • RoHS compliant: Yes
  • Input return loss : <-15
  • Output return loss: <-15
  • Max input level: 34 dBmV
  • Max output level: 50 dBmV
  • FM trap: 88-108 MHz; >15dB
  • Power consumption: <5W
  • Operating temperature : -40 C to 60 C
  • Weight (packaging): 2.0 lb
  • Size (packaging): 3.3L x 5.3W x 7.8H in
  • U-Bolt Diameter (Included): 1.875 in

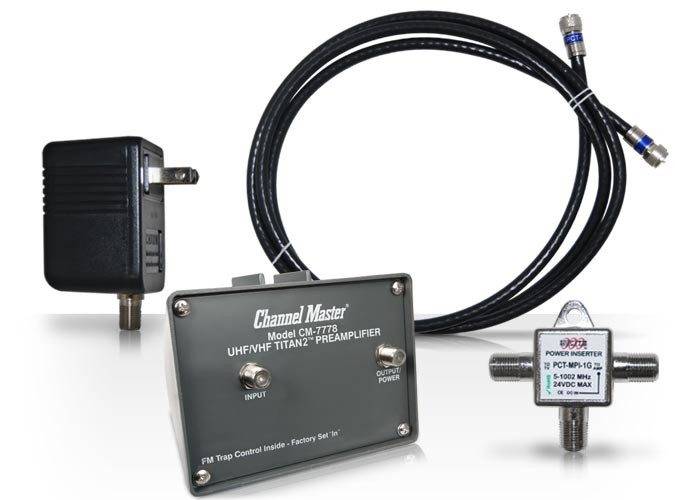

What’s included?

  • Titan 2 medium Gain Preamplifier
  • Power inserter
  • Power adapter
  • Coaxial cable
  • User Guide

Warranty:

1 year limited hardware manufacturer’s warranty.

SKU: CM-7778 Category:
Weight 3 lbs
Dimensions 10 × 8 × 4 in
