The DB4e antenna has 3X the power and half the size! This antenna is great for problematic areas challenged with receiving signals through heavy foliage outdoors. 65+ Mile Range
Description:

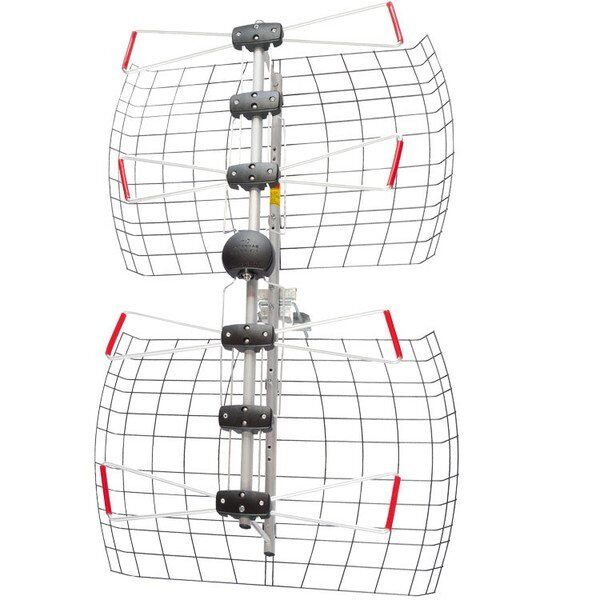

Welcome the new DB4e. This all-new design antenna features improved performance and range capabilities. With its added gain of 14.5 DB. The DB4e is the strongest multi-directional antenna in the world. The redesigned mesh reflectors now give a front to back ratio of greater than 18 DB. The unique bow-tie design that is exclusive to our DBE series of antennas provides solid UHF performance. By using triangular elements instead of rods, the DB4e has a massive increase in bandwidth allowing it to cover the entire UHF band. This antenna is above and beyond what other traditional multi-directional antennas can promise.
Antennas Direct® doubles the power of traditional bow tie designs. A breakthrough in performance and reliability. We have created an antenna the size of our traditional DB4, with the performance of the DB8. The DB4e is light years ahead of our competition. No other bow tie antenna can match the DB4e’s combination of power, gain and value. The new extreme range bow ties – only from Antennas Direct®. The most powerful compact antennas on the planet!
What’s included?
Antenna’s direct DB4E Antenna and Installation Guide (mast, mounting hardware, amplifier and coax cable not included)
SPECIFICATIONS:
- Range: Up to 65+ miles
- Strong performance across UHF DTV spectrum
- Succeeds in difficult areas
- All weather Balun included
- Flexible aiming characteristics, 60Ëš beam-width
- Works great in attics
- Peak gain: 14.5 dBi
- Front to back ratio greater than 18 dB
- 37.5″ x 23.25″W x 3.5″D
Warranty:
1 year limited hardware manufacturer’s warranty.
| Weight | 8 lbs |
|---|---|
| Dimensions | 37 × 23 × 3 in |
