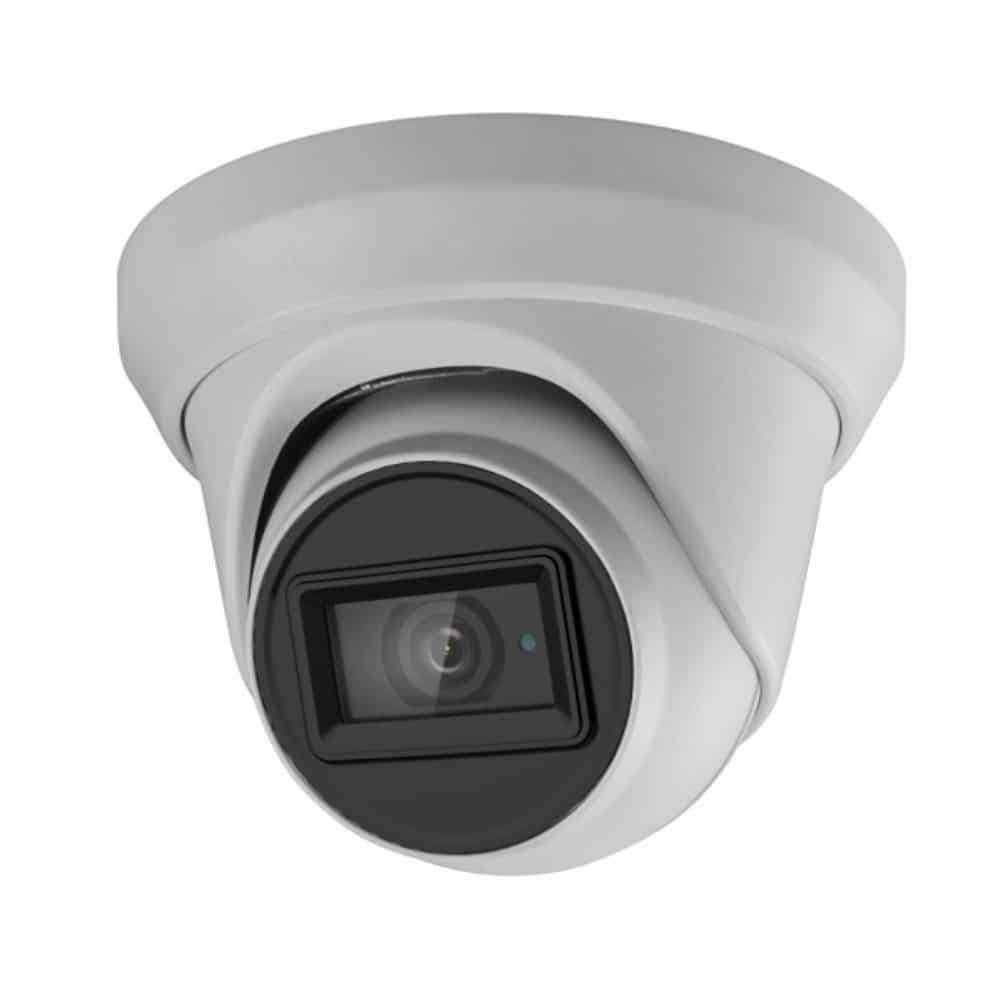

8MP Turret TVI, CVI, AHD, CVBS Camera – Fixed Lens – Smart IR with 60m Range – IP67 Rated

8MP Turret TVI, CVI, AHD, CVBS Camera – Fixed Lens – Smart IR with 60m Range – IP67 Rated

$ 119.99 $ 149.99

This 8MP indoor/outdoor, TVI based turret camera provides a sharp, high definition images in daylight or nighttime settings. The camera comes with a 2.8mm or 3.6mm fixed lens which delivers a 102.2° or 79° horizontal field of view respectively. Its maximum resolution is 3840 x 2160p at 15 fps. Using Turbo HD technology, the high definition video analog signal can be sent over existing coaxial cable, eliminating the need to run new cables. Its housing is IP67 rated for outdoor use.

eatures

  • 8MP High Performance CMOS Sensor
  • EXIR 2.0
  • 60m IR
  • 0.01 Lux/F1.2
  • 12 VDC
  • Smart IR
  • Up the Coax (UTC-C)
  • DWDR
  • IP67
  • 2.8mm/3.6mm Lens
SKU: EAC328-FD4/28W Category:
Weight 2 lbs
Dimensions 12 × 8 × 6 in
Camera
Image Sensor 8.29 MP progressive scan CMOS
Signal System PAL/NTSC
Frame Rate TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps
CVI: 8MP@12.5fps, 8MP@15fps
AHD: 5MP@20fps
CVBS: 960H P/N
Resolution 3840 (H) x 2160 (V)
Minimum Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50,000 s; NTSC: 1/15 s to 1/50,000 s
Lens 2.8 mm fixed lens
3.6mm fixed lens
Horizontal Field of View 102.2° (2.8mm)
79° (3.6mm)
Lens Mount M16
Day and Night IR cut filter
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
Synchronization Internal synchronization
DWDR 105 dB
Menu
AGC Supported
Day and Night Mode Auto/Color/BW (Black and White)
White Balance AUTO/MANUAL
Language English
Functions Brightness, Sharpness, DNR, Mirror, Smart IR
Interface
Video Output 1 HD analog output
Switch Button TVI/AHD/CVI/CVBS
General
Operating Conditions -40° F to 140° F (-40° C to 60° C), humidity: 90% or less (non-condensation)
Power Supply 12 VDC ± 25%
Power Consumption Maximum 5.3 W
Ingress Protection IP67
Material Metal
IR Range Up to 196 ft (60 m)
Communication Up the coax, Protocol: UTC-C (TVI output)
Dimensions ⌀ 4.32″ x 3.6″ (⌀ 109.82 mm x 91.03 mm)
Weight Approximately 0.71 lbs (320 g)
Approvals
