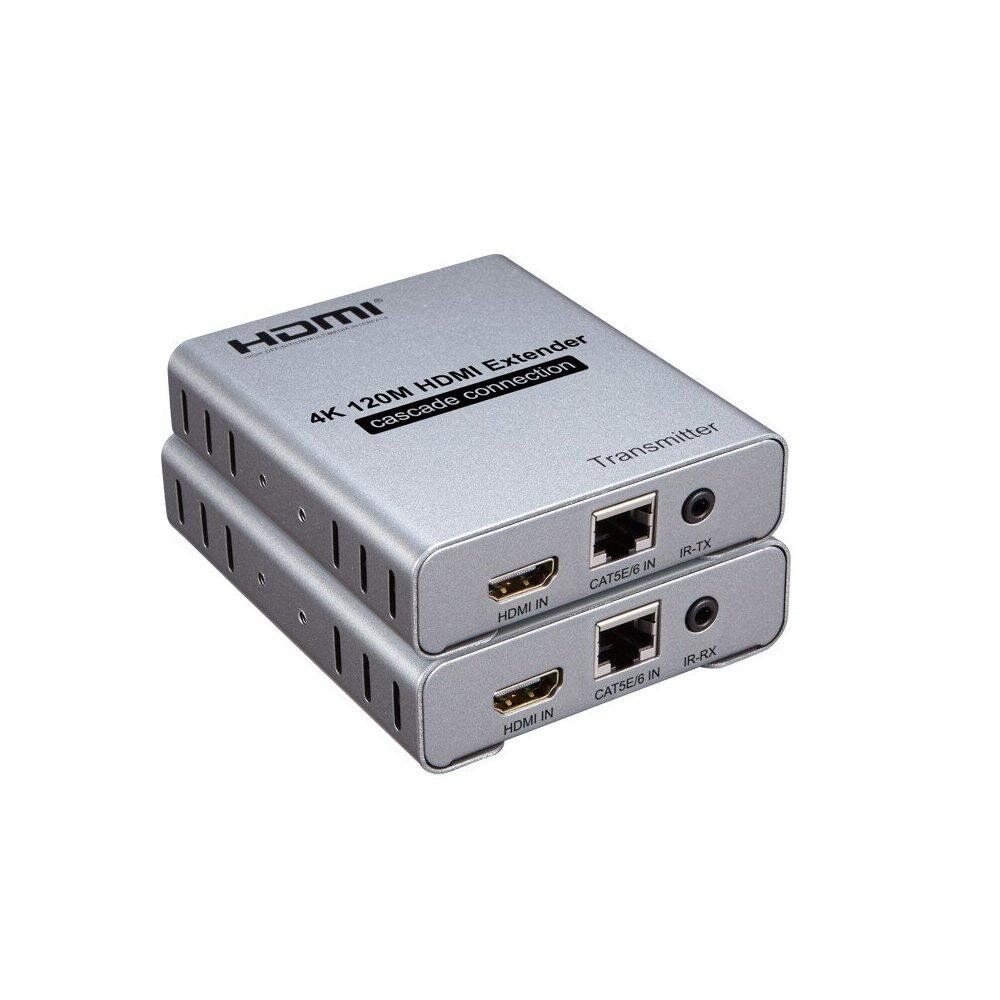

- Connect the HDMI receiver to the HDTV display with HDMI cable.
- Use one Cat5e/6 cable up to 120m to connect the Sender and Receiver.

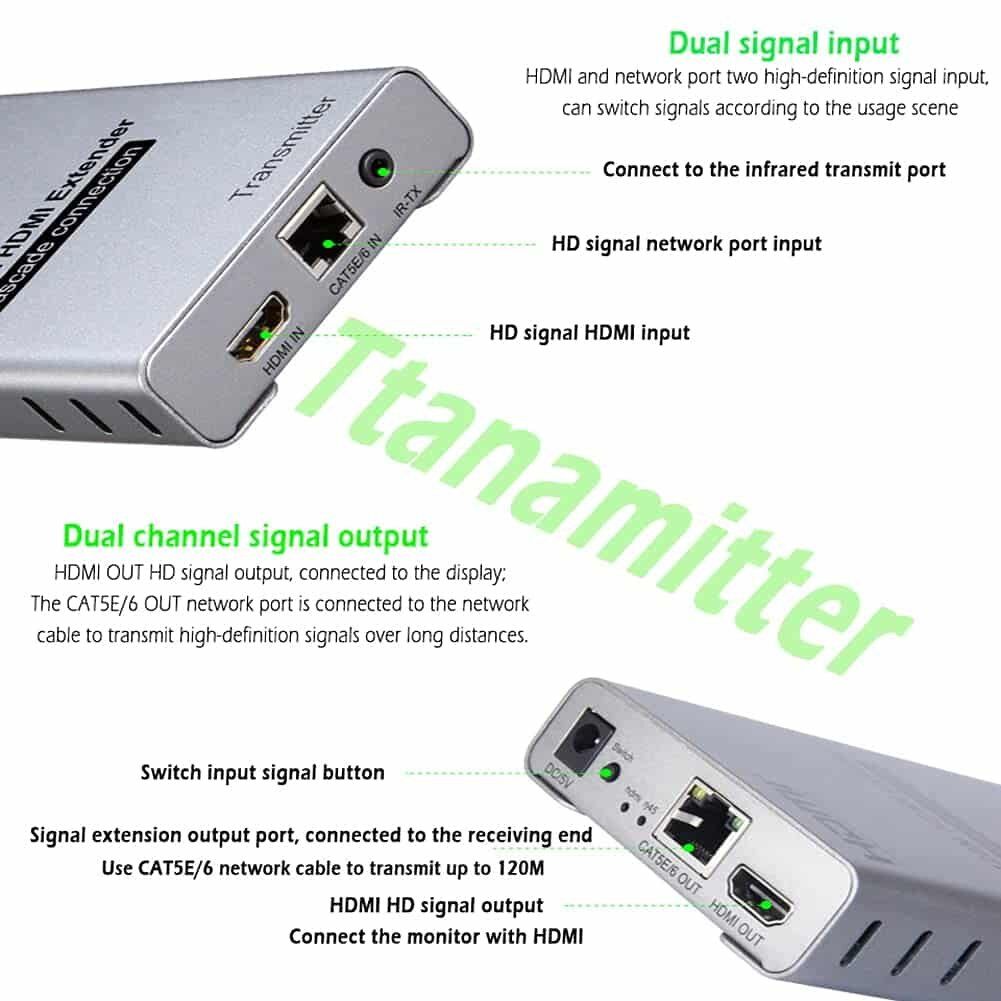

- Connect the “IR receiver “into “IR-TX” port on transmitter, and “IR transmitter ” into the “IR-RX” on receiver, and make sure the IR transmitter aim at IR receiver of the controlled device if you need the IR control function.
- Connect two pieces of 5V power supply to the transmitter and receiver, power supply for the equipment and the LED indicator light on. When status lamp on and flicker, equipment starts normal.
- Multipoint to multipoint match setting: when multipoint to multipoint connecting and multiple TX and multiple RX connect to the switch, the IP extender can match based on “SET” setting (eg: “SET” of TX is 0001, “SET” of RX is 0001
- Supports IR pass back(remote control the source at the receiver’s side)and cascading connection (max. 8 receivers can be linked).
- For better picture quality and longer distance transfer, we recommend to use Cat 6 or Cat 7 cable.
- Support Point-to-Point, Multi-receiver cascade- Connect your HDMI source device (PC, game console, Blu-ray player, media player) to the Transmitter, utilize existing Ethernet structure in your house/office to connect the transmitter to Receiver, then connect your HDTV from a remote location to the Receiver with an HDMI cable; HDMI cables are required and sold separately

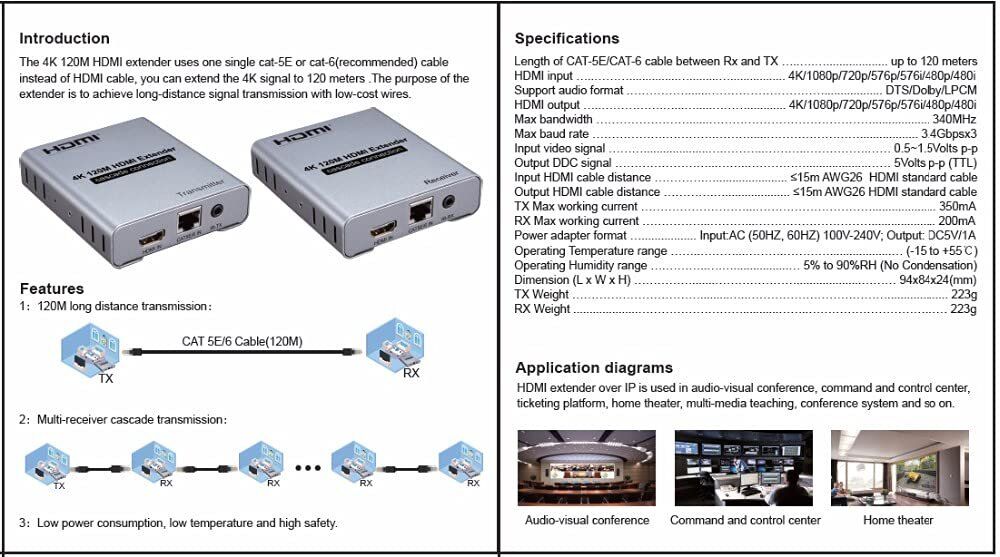

Specifications :-
- Extended distance: transmission up to 120M (CAT5E/6)
- Input video signal: 5Volts p-p(TTL)
- Video resolution support: Up to 3840 X 2160/30HZ backward compatible.
- Support audio format: DTS/Dolby/LPCM
- Support video format: 4K/1080P/720P and so on.
- Maximum bandwidth transmission: 340MHz
- Maximum transfer rate: 3 x 3.4Gbps
- Input cable length: ≤15M AWG26 HDMI standard cable
- Output cable length: ≤15M AWG26 HDMI standard cable
- Maximum operating current: TX: 350mA; RX: 200mA
- Power adapter specifications: input: AC (50HZ, 60HZ) 100-240V; output: DC5V / 1A;
- Operating temperature range: (-10∽+45°C)

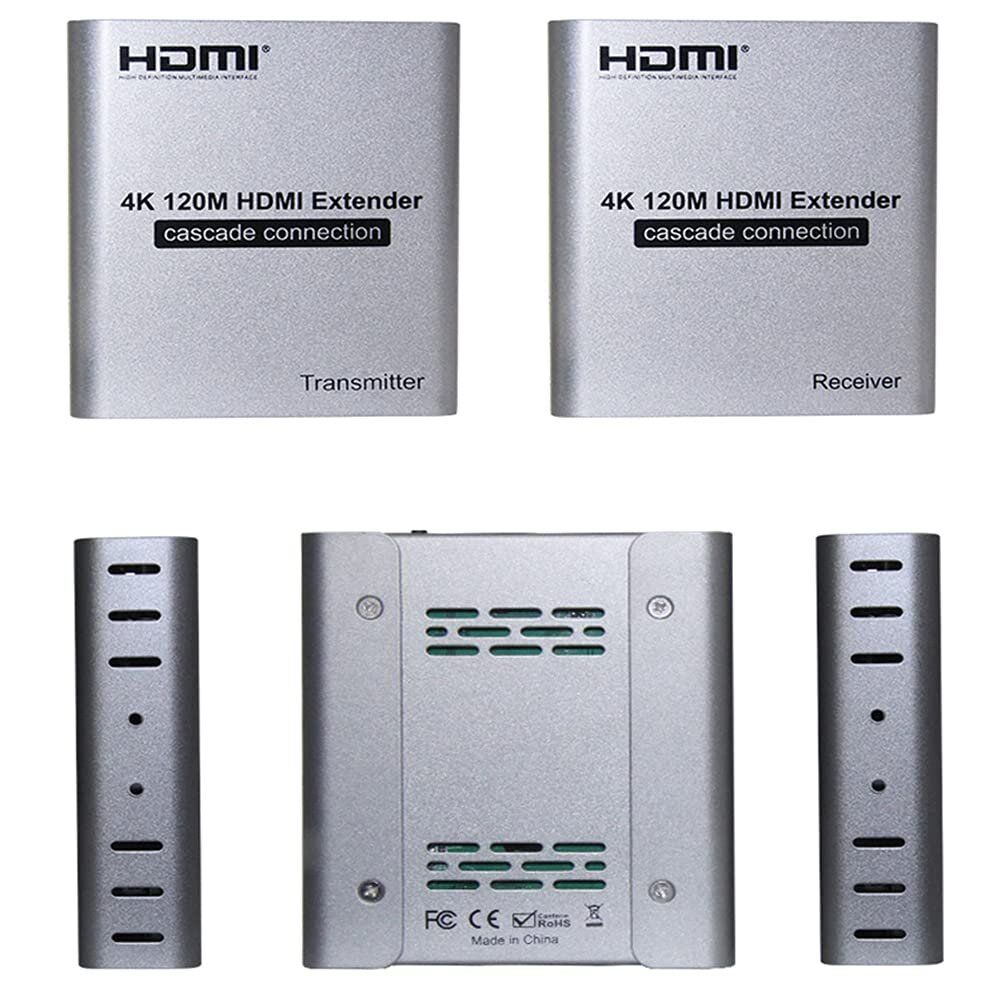

- Size: 94*84*24 (mm)
- Weight: 223g*2.
