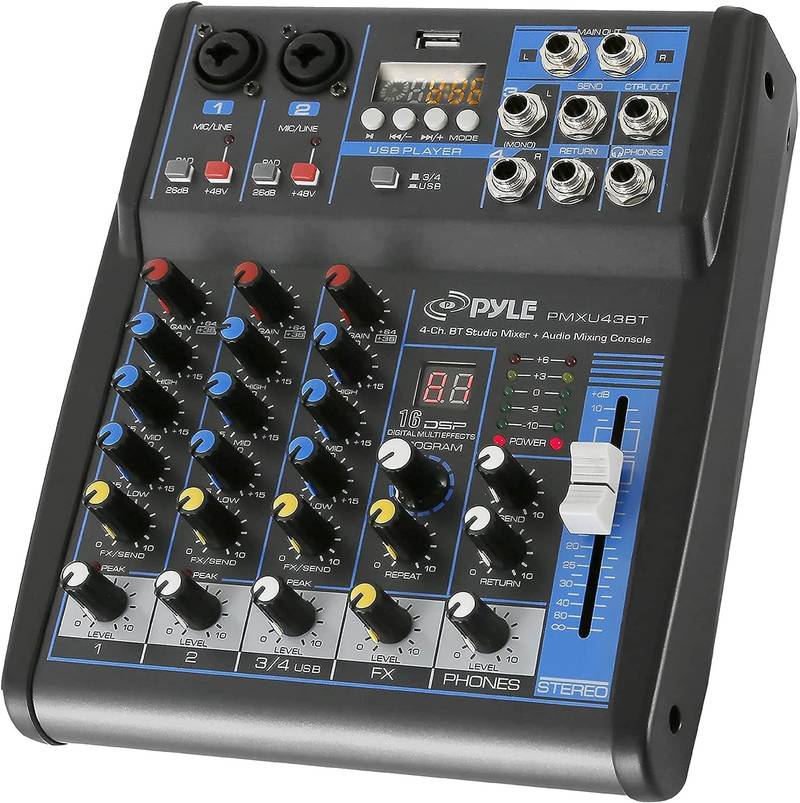

4-Ch. Bluetooth Studio Mixer – DJ Controller Audio Mixing Console System

Features:

DJ & Studio Console Mixer System

Multi 4-Channel Audio Source Mixing

Built-in Bluetooth Wireless Receiver

FX (Analog Effects) & 16 Bit DSP processor

Direct-to-Computer Connect & Sound Record Ability

LCD Digital Display & Front Panel Control Center

Rotary Adjustment Knobs & LED Indicator Lights

MP3 Digital Audio File Compatibility

USB Interface: MP3 Flash Drive Reader/Computer Connection

Connect & Stream Audio from External Devices

(2) 1/4’’ (L/R) MAIN Outputs

(2) XLR/14’’ Combo Audio LINE/Microphone Inputs

1/4’’ Mono + Stereo Inputs

1/4’’ Send + Return Inputs

1/4’’ Headphone Jack

Stereo Level Fader/Slider

Output Signal Level Indication

BUS Audio Control, Sound Routing

PAD Channel Source Input Switch

Independent Channel Input Audio Configuration

Gain, High, Mid, Low, FX/Send, Level, Base + Tone Adjustment

+48V Phantom Power Control

Power ON/OFF Switch

Used for Professional Studio Applications & On-Stage Performances

What’s in the Box:

Bluetooth Studio Mixer

Power Adapter Cable, 4-Pin

Wireless Bluetooth Connectivity:

Hassle-Free Audio Streaming Ability

Works with All of Today’s Latest Devices

(Smartphones, Tablets, Laptops, Computers, etc.)

Bluetooth Network Name: ‘KT-08UP’

Bluetooth Version: 4.0

Wireless Range: 15’+ ft.

Technical Specs:

Input Mixer Channels: 4-Ch. (+ FX/Headphones)

Mic Input: Sensitivity/Impedance: 1.5mV/750 Ohm

Input Frequency Response: 20Hz-20kHz, +/-3dB

Input Distortion: 0.03%, 1kHz/150mV Input

Channel GAIN Adjustment: +20/+64 (-6/+38)

HIGH Gain: +/-15 dB, 12kHz Frequency Shelving

MID Gain: +/-15 dB, 2.5kHz Frequency Shelving

LOW Gain: +/-15 dB, 80kHz Frequency Shelving

HIGH/MID/LOW Adjustment: -15/+15dB

Stereo Output Level Meter: 5-Segment (+6, +3, 0, -3, -10dB)

PAD Input Channel Adjustment: 26dB

Peak CLIP Level: < 3dB

Phantom Power Voltage: +48V

Power Supply: 100-240V (+/-15V DC Power Adapter)

Digital Audio File Compatibility File-Types: MP3, WAV

Dimensions (L x W x H): 9.3’’ x 7.5’’ x 2.6’’

Sold as: 1

Weight: 3.95 lbs.
